Description

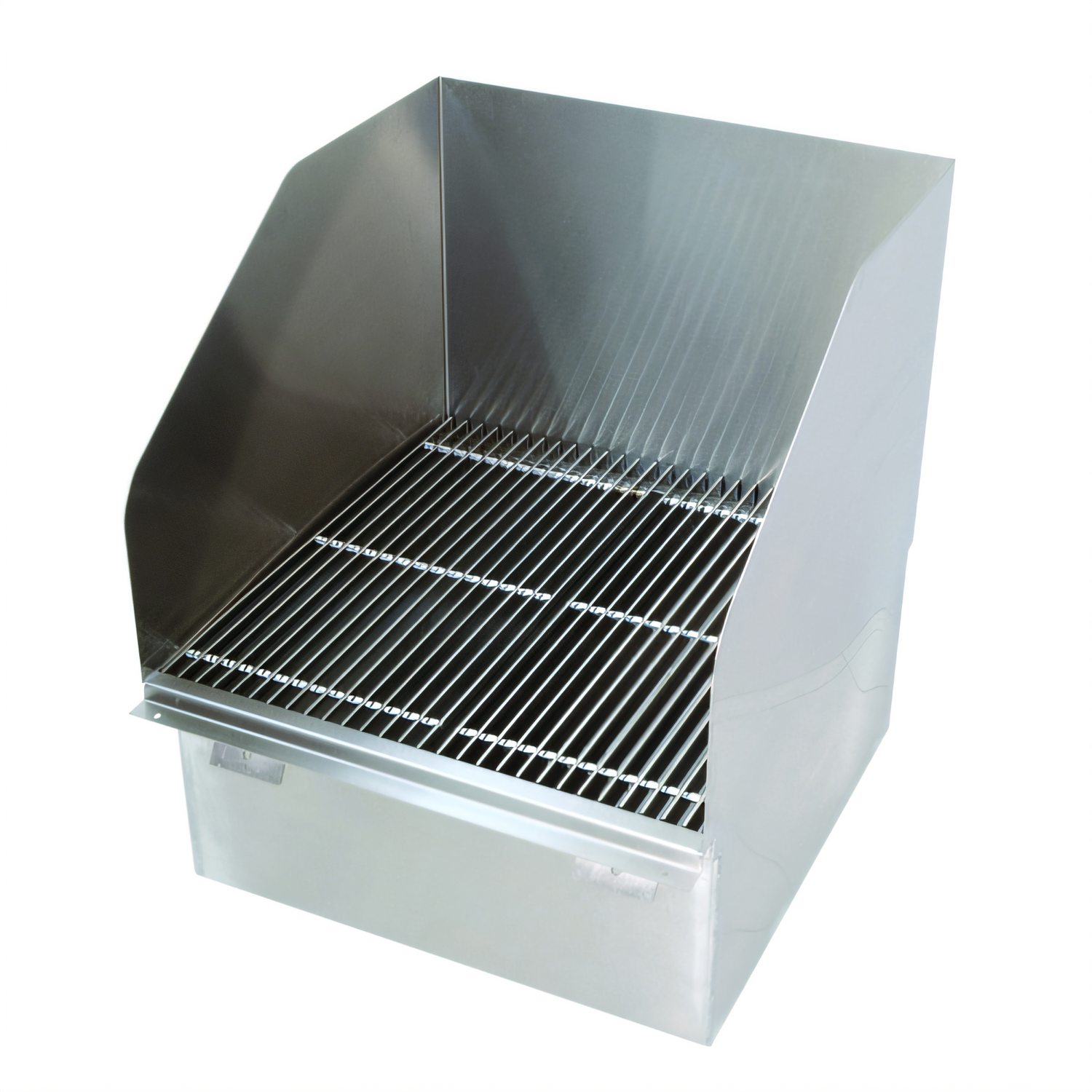

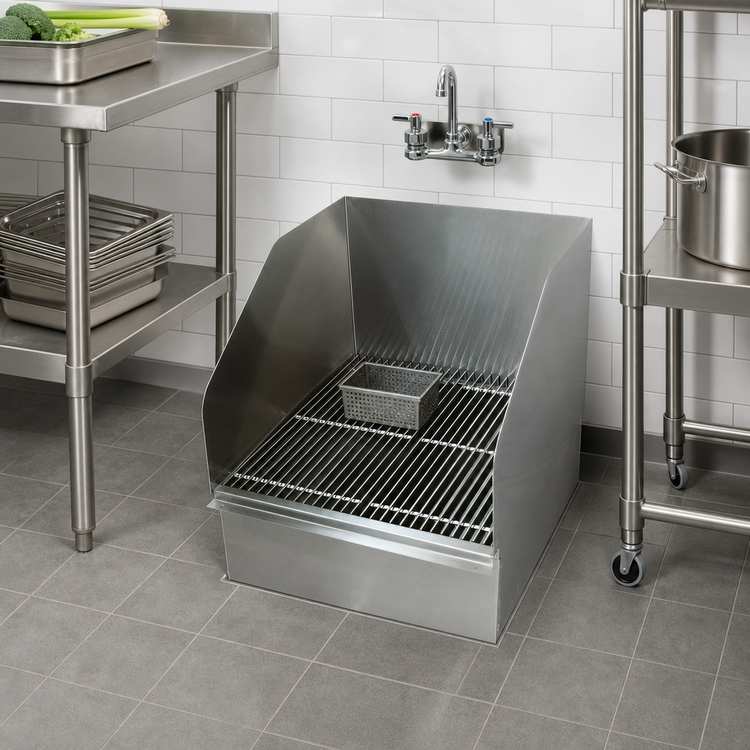

Advance Tabco Flush-Mount Mop Sink – 9-OP-24FM-SSRL

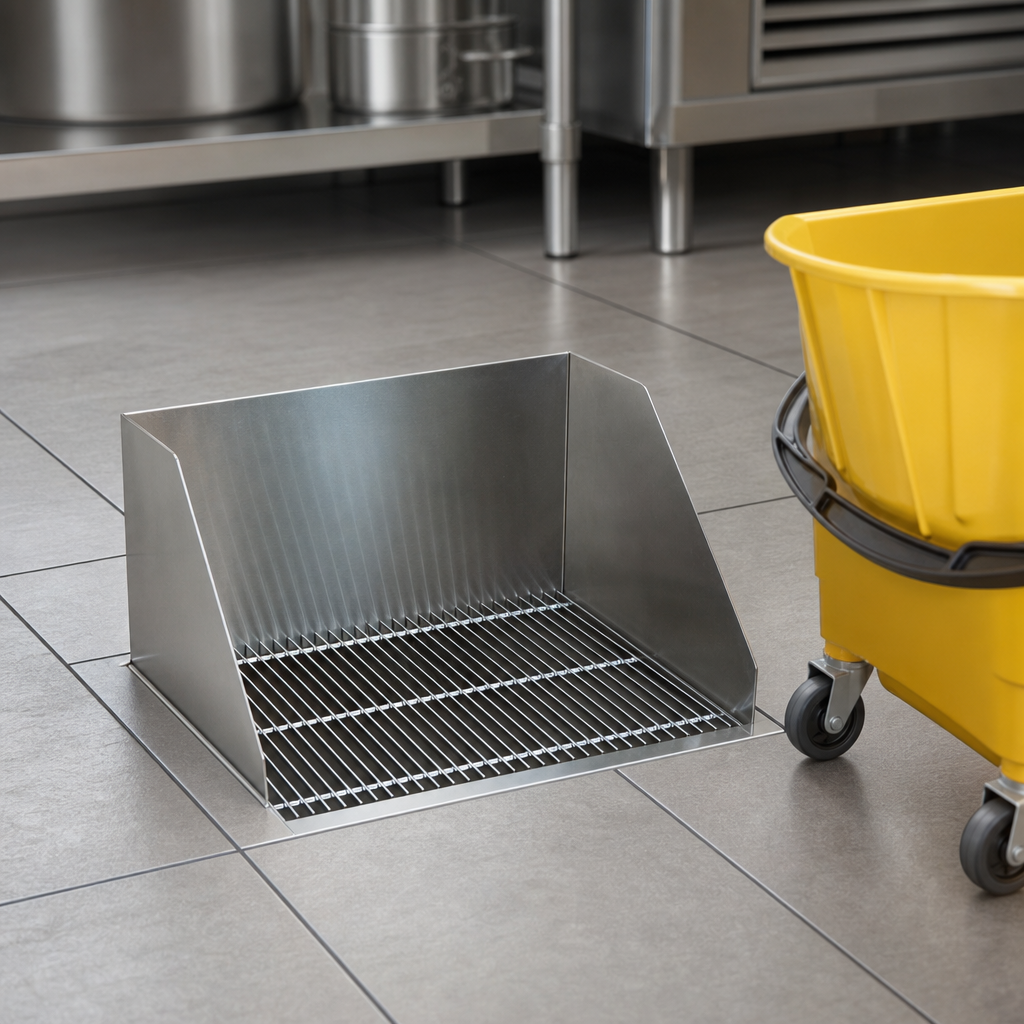

21 3/8" W × 24" D × 10" Bowl | Three-Side Splash | Stainless Steel GrateInstall a truly floor-level mop station that lets custodial carts roll in without lifting. The Advance Tabco 9-OP-24FM-SSRL is recessed flush to your finished floor, giving you a rugged, sanitary and ADA-friendly way to dump mop buckets, wring out mops and keep dirty water off the deck.
Key Features
- Flush-to-floor design eliminates trip hazards and heavy lifting.
- Two-piece removable “Subway-Style” stainless steel grating – closely spaced bars prevent caster hang-ups.
- 16 ga. type 304 stainless steel bowl – 10" deep and TIG-welded with a satin finish.
- 16 ½" tall integral splashes on back, left & right sides keep surrounding walls dry.
- Front & rear anti-splash guards reduce messy back-spray.
- Pitch-to-drain floor directs wastewater to the center outlet.
- Removable perforated stainless steel strainer basket with handle traps debris for easy disposal.
- 4" O.D. × 3" long drain sleeve accepts up to a 4" waste line (Fernco® 1059-33 coupling by others).
- Grate ships in two sections for effortless removal and cleaning.
Specifications
| Model | 9-OP-24FM-SSRL |
|---|---|
| Bowl Size (L × W × D) | 21 3/8" × 22" × 10" |
| Overall Footprint (W × D) | 21 3/8" × 24" |
| Splash Height Above Floor | 16 1/2" |
| Material & Finish | 16 ga. 304 stainless steel, satin finish |
| Grate Material | 304 stainless steel, 2-piece subway pattern |
| Drain Connection | 4" O.D. sleeve, 3" long |
| Net Weight | Approx. 128 lb |
| Installation | Recessed – for new construction only |
Ideal For
- Commercial kitchens & commissaries
- Hospitals and healthcare facilities
- Schools & universities
- Stadiums, arenas & convention centers
- Any high-traffic janitorial or maintenance area
Note: This flush-mount mop sink must be set during floor construction.
Verify rough-in dimensions and allow for a 4" waste line before concrete is poured.
Optional Accessories
- K-240 Service faucet (8" O.C.)
- K-03 Vacuum breaker repair kit
- K-16 Mop sink replacement drain
- FT-2 Replacement strainer basket
- K-242 23" wall-mount mop hanger
- K-244 Hose & hanger kit
Advance Tabco products are manufactured in the USA and carry a one-year limited warranty.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
28.0in
Width
21.38in
Depth
24.0in
Shipping Weight
128.0lbs
Bowl Height
10" deep
Bowl Depth
24" front-to-back
Style
floor mounted
Bowl Width (left to right)
21"
Specifications
Mop sink, flush-with-floor (recessed into floor), 21-3/8"W x 24"D x 10" deep bowl, with 16-1/2" tall side & rear splashes (above floor), with removable stainless steel subway grating, allows mop buckets to roll over sink at floor level, removable stainless steel strainer basket, 4" O.D. waste pipe 3" tall
