Advance Tabco  |  SKU: 9-OP-24FM-FGL  |  UPC: 747545207876

Advance Tabco 9-OP-24FM-FGL Mop Sinks

$2,812.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Video
Related Searches
Commercial Plumbing Supplies Commercial Sinks Mop Sinks Mop Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

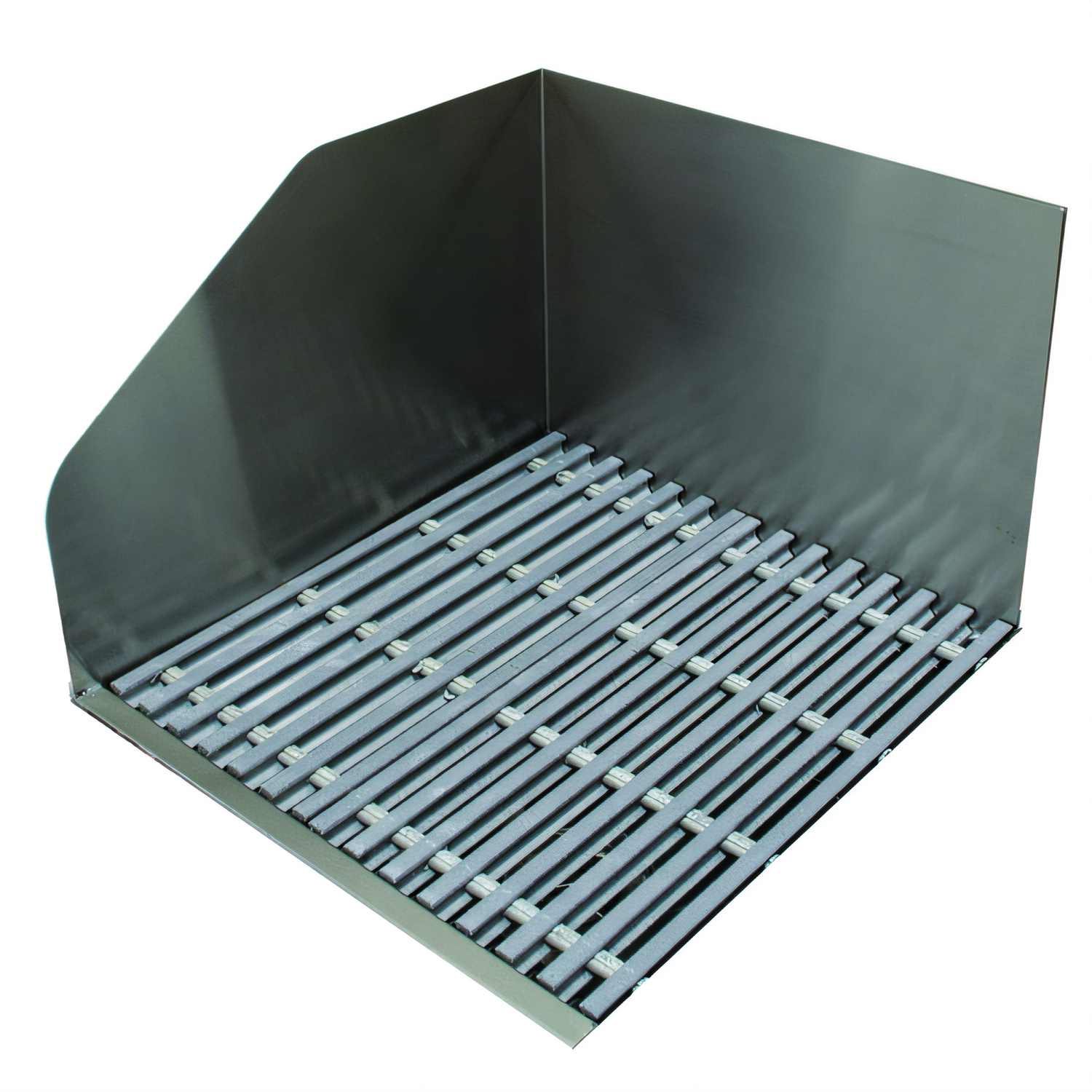

Advance Tabco Flush-Mount Mop Sink – 21-3/8" x 24"

Rear & Left Side Splashes • Fiberglass “Subway-Style” Grate • 10" Deep Bowl

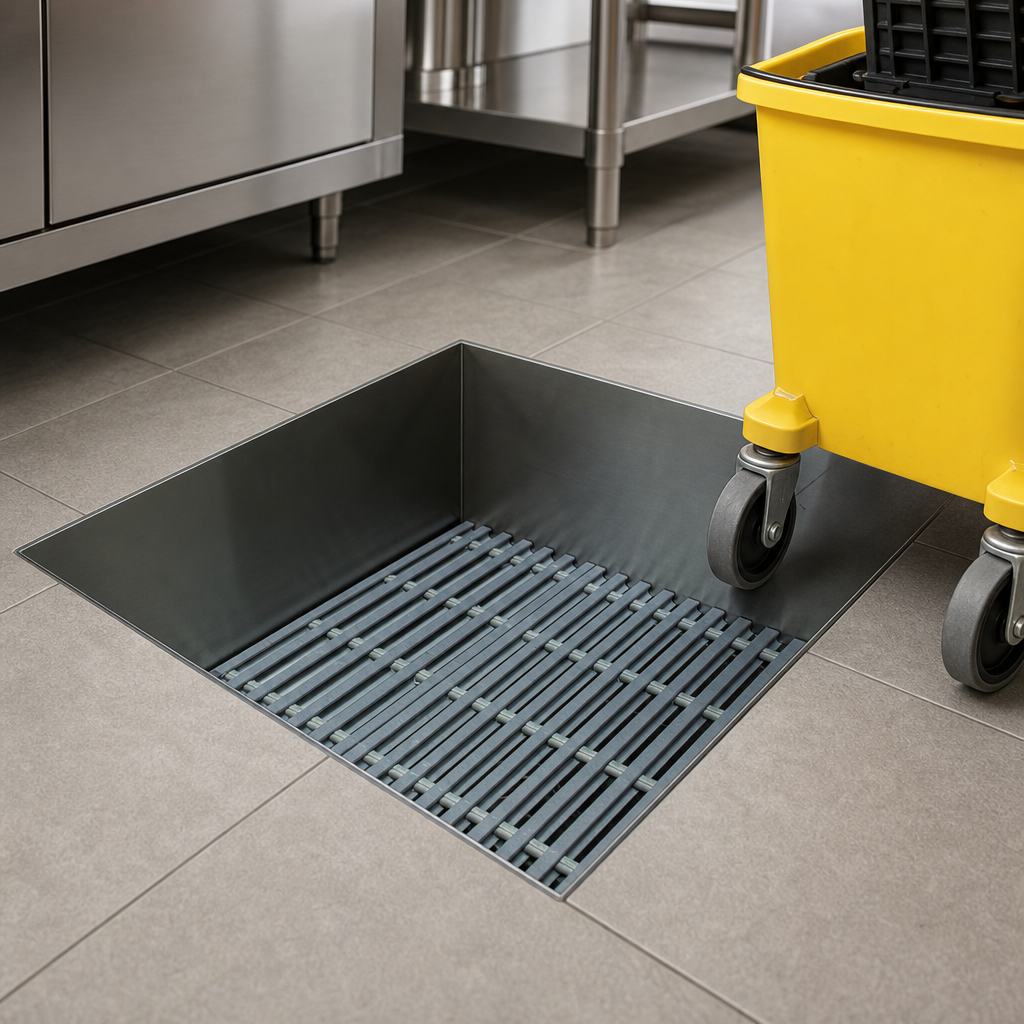

Built for demanding janitorial rooms and commercial kitchens, this Advance Tabco flush-to-floor mop sink lets full mop buckets roll directly over the grate, eliminating heavy lifting and messy spills while containing wastewater below floor level.

Why You’ll Love It
  • Flush-mount design recesses completely into the floor for effortless roll-in access.
  • 16 ga. type 304 stainless steel bowl withstands harsh chemicals and daily abuse.
  • 10" deep, pitch-perfect basin quickly drains wastewater toward the outlet.
  • 16-1/2" rear & left side splashes keep surrounding walls and floors dry.
  • Two-piece fiberglass “Subway-Style” grate removes easily for cleaning and is closely spaced so casters never get stuck.
  • Perforated stainless steel strainer basket with handle catches debris before it reaches the plumbing.
  • 4" O.D. x 3" long drain sleeve accepts up to a 4" waste pipe (Fernco® coupling by others).
  • Front & rear anti-splash guards minimize backsplash when emptying buckets.
  • All TIG-welded seams are blended to a sanitary satin finish.
Specifications
Overall Footprint (W × D) 21-3/8" × 24"
Bowl Size (W × D × H) 21-3/8" × 22" × 10"
Splash Height 16-1/2" (rear & left sides)
Grate Area 21-3/16" × 21-3/4" (two removable sections)
Grate Material Fiberglass composite, grey
Bowl Material / Finish 16 ga. 304 stainless steel / satin
Drain Outlet 4" O.D. sleeve, 3" long
Approx. Weight ≈ 120 lb
Recommended Use New construction or remodels where floor recess is possible
Popular Accessories (sold separately)
  • K-240 Service Faucet (8" O.C.)
  • K-03 Vacuum Breaker Repair Kit
  • K-16 Mop Sink Replacement Drain
  • FT-2 Replacement Strainer Basket
  • K-242 23" Wide Mop Hanger
  • K-244 Hose & Hanger Kit
Installation Note: This is a flush-mount sink intended for new construction or sites where a floor recess can be provided. Verify rough-in dimensions and local plumbing codes before ordering.

Advance Tabco continuously improves its products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Height

28.0in

Width

23.38in

Depth

24.0in

Shipping Weight

120.0lbs

Bowl Depth

24" front-to-back

Style

floor mounted

Bowl Height

10" deep

Bowl Width (left to right)

21"

Specifications

Mop sink, flush-with-floor (recessed into floor), 21-3/8"W x 24"D x 10" deep bowl, with 16-1/2" tall rear & left side splashes (above floor), with removable fiberglass subway grating, allows mop buckets to roll over sink at floor level, removable stainless steel strainer basket, 4" O.D. waste pipe 3" tall
