Advance Tabco  |  Regaline  |  SKU: 9-84-80-36RL  |  UPC: 747545107152

Advance Tabco 9-84-80-36RL Regaline Compartment Sinks

$7,100.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Plumbing
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

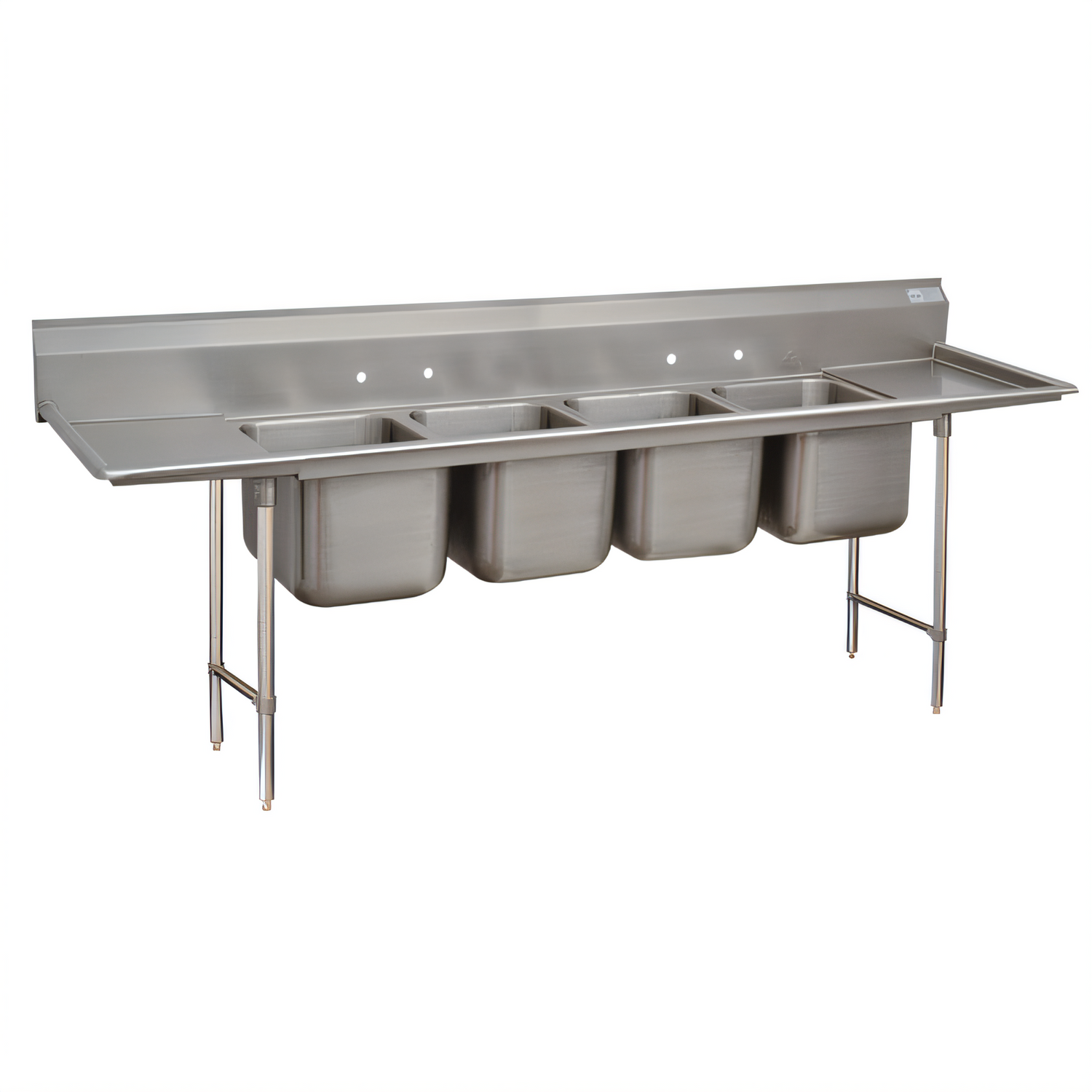

Regaline 4-Compartment Sink w/ Dual 36" Drainboards

Advance Tabco 9-Series | Model 9-84-80-36RL | NSF Listed

Designed for busy commercial kitchens, this Regaline sink combines four spacious bowls with extra-long drainboards on both sides, giving your ware-washing team the room they need to work quickly and safely. Heavy-duty 18 gauge 304 stainless steel, all TIG-welded seams, and an open stainless frame base ensure years of reliable performance without the premium price tag.

Key Features

  • Four seamless 20" W × 28" F/B × 12" D bowls with large 3" radius corners for easy cleaning
  • Left & right 36" drainboards with integral backsplash and pitched surface for rapid drainage
  • 8" high backsplash with tiled edge; pre-punched 8"-on-center faucet holes (two faucets required)
  • Open frame base with 1 5/8" O.D. tubular stainless legs, adjustable side crossrails, and 1" S/S bullet feet
  • Additional drainboard support legs included for rock-solid stability
  • All TIG-welded construction; welds are blended to a uniform satin finish
  • NSF certified  –  safe for all food-contact applications

Specifications

Overall dimensions 162" L × 36" F/B × ≈37" H (to top of rolled rim)
Compartments 4 bowls – each 20" W × 28" F/B × 12" D
Drainboards 36" L (left) & 36" L (right) with 8" backsplash
Material / gauge 18 ga type 304 stainless steel (sink, drainboards & legs)
Plumbing connections • (2) ½" IPS hot & cold supplies
• (4) 1½" IPS basket drains (included)
Shipping weight Approx. 395 lb

Installation Notes

  • Unit ships fully welded; minimal assembly required (install crossrails & bullet feet).
  • Locate plumbing rough-ins per Advance Tabco recommendations for four-compartment Regaline sinks.
  • For optimal ergonomics, adjust bullet feet to level the sink at 34" working height before plumbing.
Important: Faucets are not included. Two wall-mount faucets with 8" centers are required for proper operation.

Need custom modifications, cutting boards, or sink covers? Ask us about Advance Tabco Smart Fabrication ™ options.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

162.0in

Depth

36.0in

Shipping Weight

395.0lbs

Overall Length

130" - 198"

Compartment (front - back)

28"

Splash Height

8"

Base Type

legs with side crossrails

Sink Depth (rim - drain)

12"

Drainboards

with left & right-hand drainboards

Compartment Width (side - side)

20"

Top Gauge

18 gauge

Top Stainless Series

300 series

Base Construction

stainless steel

Specifications

Regaline Sink, 4-compartment, with left & right-hand drainboards, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboards, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 36" F/B x 162" L/R, NSF (requires 2 faucets)
