Advance Tabco  |  Regaline  |  SKU: 9-84-80-36L  |  UPC: 747545107138

Advance Tabco 9-84-80-36L Regaline Compartment Sinks

$6,870.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

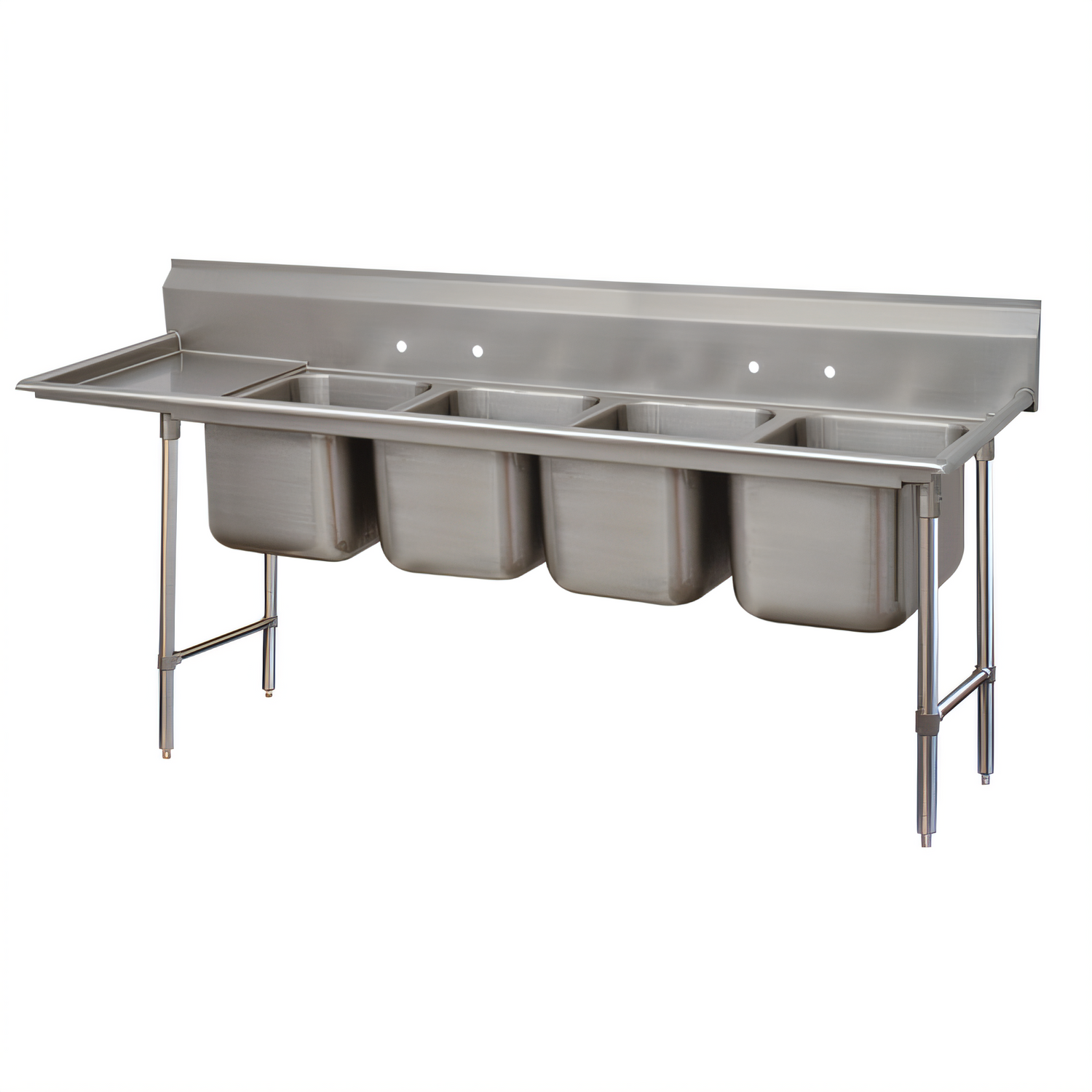

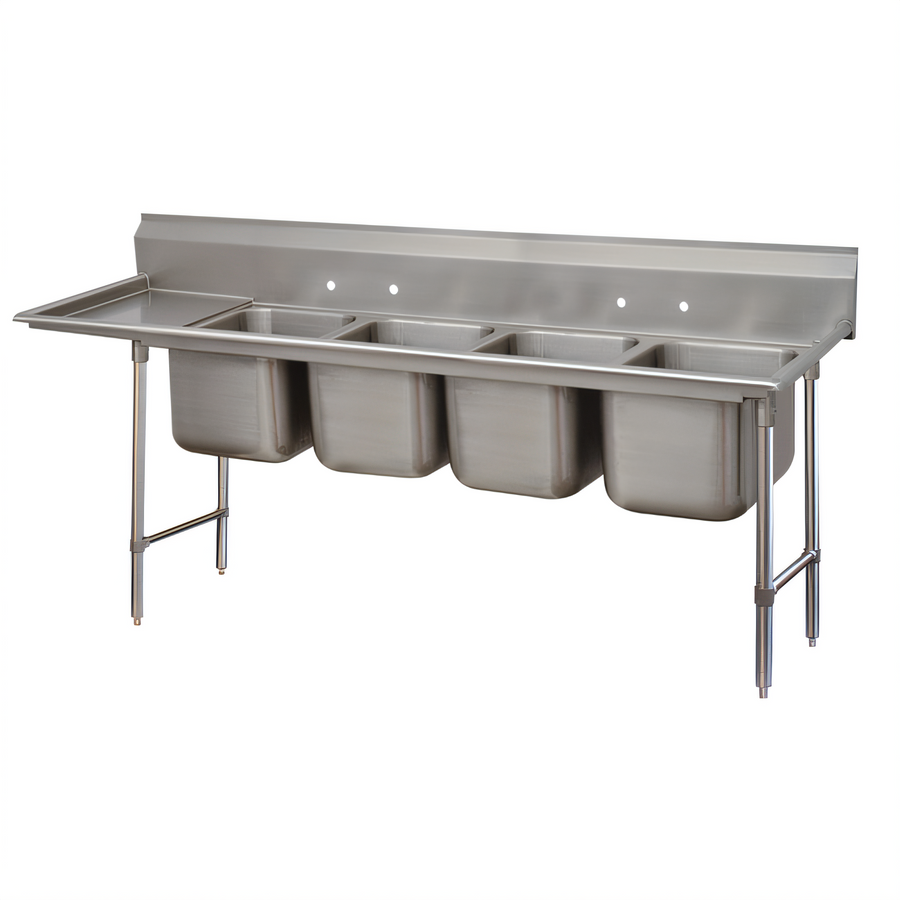

Advance Tabco Regaline 4-Compartment Sink • Model 9-84-80-36L

130" L x 36" F/B x 42" H • 36" Left-Hand Drainboard • NSF Certified

Built for demanding commercial kitchens, the Regaline 9-Series combines heavy-duty 18 ga 304 stainless steel with a space-saving open frame base. Four generous 20" x 28" bowls handle prep, wash, rinse, and sanitize tasks simultaneously, while the extra-long 36" drainboard keeps clean ware moving efficiently down the line.

Why You’ll Love It

  • Four sink bowls — each 20" W x 28" F/B x 12" D — accommodate large stock pots, sheet pans, and bus tubs.
  • 36" left-hand drainboard with built-in 8" backsplash contains splashes and streamlines drying.
  • Seamless TIG-welded construction with satin finish resists corrosion and wipes clean in seconds.
  • Open frame base with 1 ⅝" Ø stainless legs and adjustable side cross-rails maximizes under-sink access.
  • Two extra support legs under the drainboard provide rock-solid stability (standard on 36" boards).
  • 1" stainless bullet feet adjust for a level install on uneven floors.
  • 3" radius bowl corners promote thorough sanitation and easy swab-out.
  • NSF listed for food-service compliance.

Technical Specifications

Model 9-84-80-36L (Left-hand drainboard)
Overall dimensions 130" L x 36" F/B x 42" H (to top of backsplash)
Compartments 4
Bowl size (each) 20" W x 28" F/B x 12" D
Drainboard 36" L, left side, integrally formed with 8" H backsplash & tile edge
Material & gauge 18 ga type 304 stainless steel (Super Saver 9-Series)
Base & bracing Stainless open frame, adjustable side cross-rails, welded gussets
Legs / feet (6) 1 ⅝" Ø legs • (2) extra under drainboard • 1" bullet feet, adjustable
Drain openings 1 ½" IPS stainless basket strainers (centered in each bowl, included)
Faucet holes (2) sets on 8" centers  — requires two splash-mount faucets (sold separately)
Certifications NSF
Ship weight Approximately 355 lb (freight class)

Plumbing & Installation Notes

  • Hot and cold supplies: ½" IPS.
  • P-trap not included.
  • Leg bullet feet adjust 1" for pitch or uneven floors.

Need custom modifications, lever-waste drains, or pre-rinses? Our team can quote factory Smart Fabrication™ add-ons — just ask!

Heads-up: Faucets, splash-mount accessories, and cutting boards are shown for reference only and are not included with the sink.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

130.0in

Depth

36.0in

Shipping Weight

347.0lbs

Overall Length

130" - 198"

Compartment (front - back)

28"

Splash Height

8"

Base Type

legs with side crossrails

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Compartment Width (side - side)

20"

Top Gauge

18 gauge

Drainboards

with left-hand drainboard

Base Construction

stainless steel

Specifications

Regaline Sink, 4-compartment, with left-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboard, 1" adjustable feet, 18 gauge 304 stainless steel, overall 36" F/B x 130" L/R NSF (requires 2 faucets)
