Advance Tabco 9-84-80-18R Regaline Compartment Sinks
Description

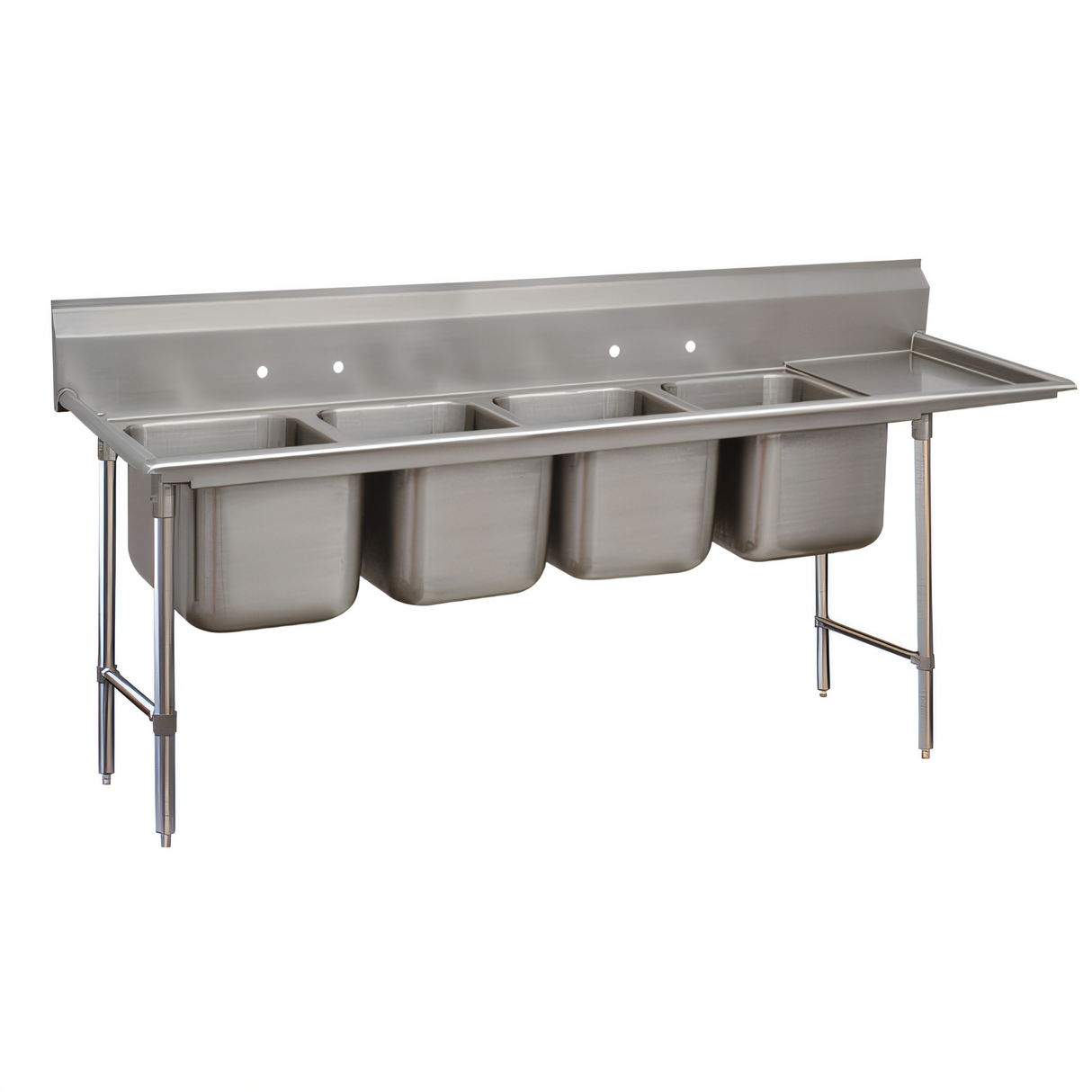

Regaline 4-Compartment Sink w/ 18" Right-Hand Drainboard – 112" x 36"
Advance Tabco Model 9-84-80-18R (18 ga 304 S/S, NSF)Engineered for heavy-duty service yet priced for everyday value, the Regaline Series combines seamless TIG-welded construction, generous bowl capacity, and a sanitary 18" drainboard. Whether you are rinsing, washing, sanitising or air-drying, this four-bay sink keeps high-volume ware-washing moving in one continuous, ergonomic workflow.
Why You’ll Love It
- Four spacious 20" W x 28" F/B x 12" D bowls handle large sheet pans & stockpots with ease.
- 18" right-hand drainboard with integral splash speeds drying and keeps counters clear.
- 8" high backsplash and tile edge simplify wall mounting & help contain splashes.
- 18 gauge type 304 stainless steel throughout—strong, corrosion-resistant & easy to clean.
- All TIG-welded seams polished to a smooth, satin finish for maximum sanitation.
- 3" interior bowl radius for fast clean-up and superior product flow.
- Open tubular frame base with 1 ⅝" Ø stainless legs, side crossrails & gussets for rock-solid stability.
- 1" adjustable stainless bullet feet level the sink on uneven floors.
- Includes four 1 ½" IPS stainless basket drains; two faucets required (not included).
- NSF listed – meets the latest food-service sanitation standards.
At-a-Glance Specifications
| Overall Dimensions | 112" L x 36" F/B x 44" H (to top of 8" backsplash) |
|---|---|
| Number of Compartments | 4 |
| Bowl Interior (each) | 20" W x 28" F/B x 12" D |
| Drainboard | 18" Right-hand, integrally TIG-welded |
| Material / Gauge | Type 304 stainless steel, 18 ga tops & bowls 1 ⅝" Ø tubular legs |
| Plumbing Connections | (2) 1/2" IPS hot & cold inlets (4) 1 ½" IPS basket drains (included) |
| Faucet Centers | 8" O.C. – requires two wall or deck mounts (sold separately) |
| Certifications | NSF Listed |
Installation & Care Tips
- Set supply rough-ins at 8" on-center, 6–8" A.F.F. per Advance Tabco guidelines.
- For best stability, anchor the backsplash to wall studs using stainless screws.
- Level the unit front-to-back and side-to-side with the 1" bullet feet before final plumbing.
- Clean daily with mild detergent and a non-abrasive cloth to maintain the satin finish.
Faucets and P-traps shown in reference drawings are not included and must be ordered separately.
