Advance Tabco  |  Regaline  |  SKU: 9-84-80-18L  |  UPC: 747545107046

Advance Tabco 9-84-80-18L Regaline Compartment Sinks

$6,783.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

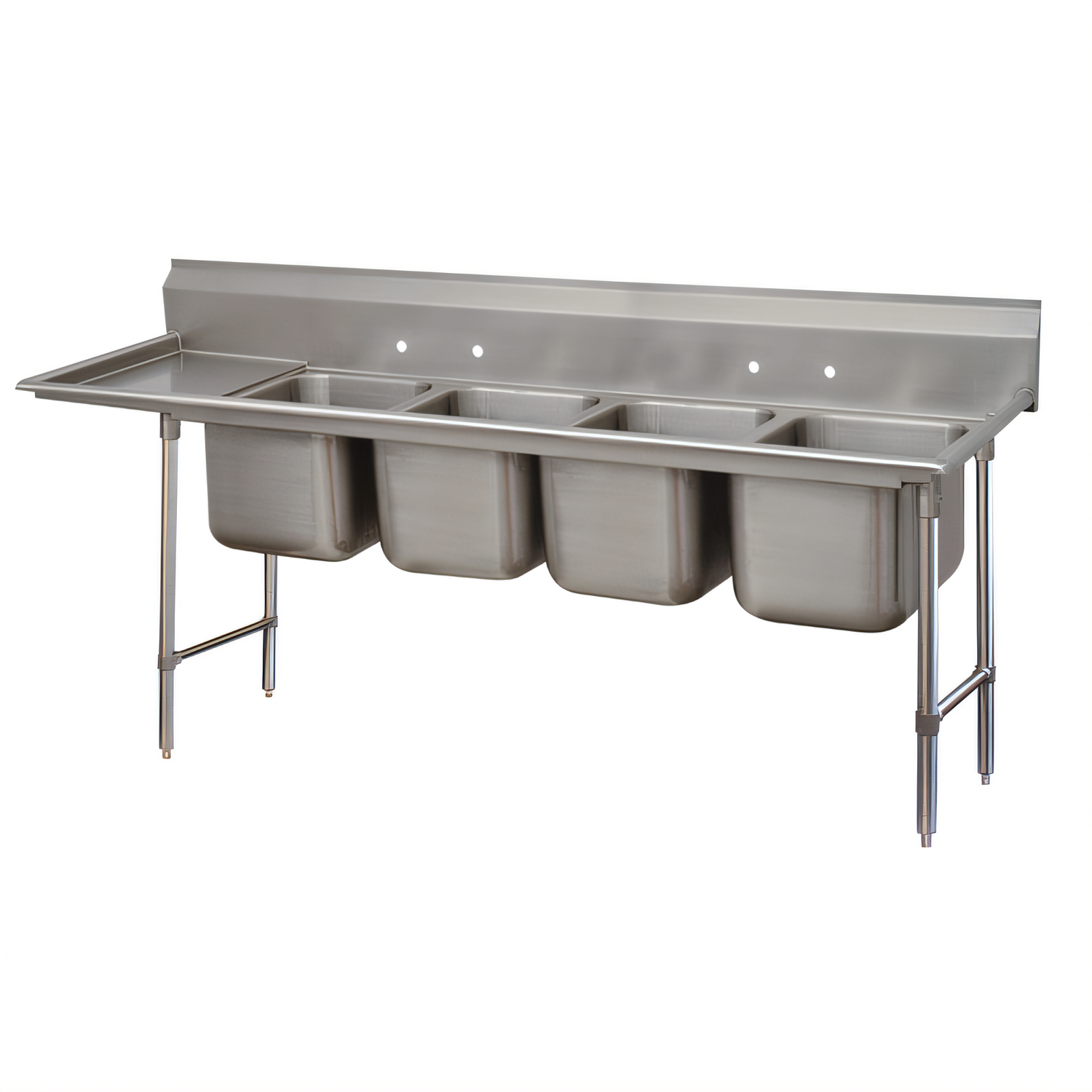

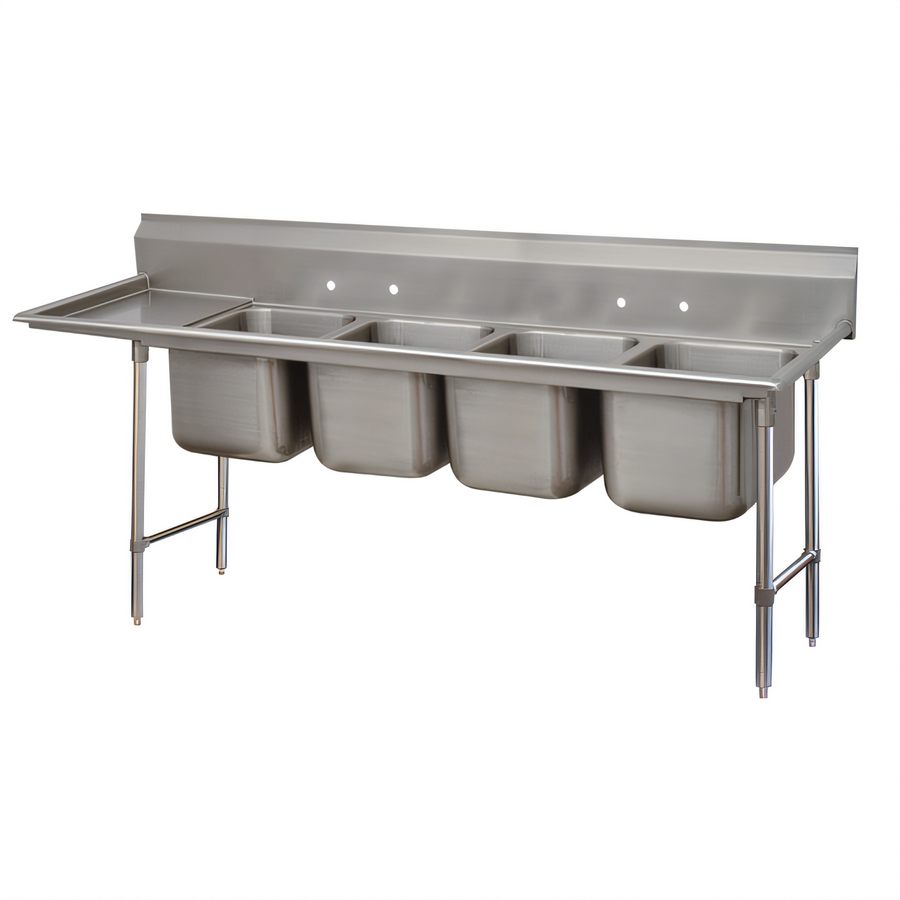

Regaline 4-Compartment Sink • Left 18" Drainboard

Advance Tabco 9-84-80-18L (Super Saver Series)

Built for high-volume warewashing, the Advance Tabco Regaline 4-compartment sink delivers rugged performance in a space-saving 112" footprint. 18 gauge, type 304 stainless steel throughout—paired with TIG-welded seams and a satin finish—means years of corrosion-resistant service in busy kitchens, bars, and commissaries.

Why You’ll Love It

  • Four 20" W × 28" F/B bowls let you dedicate stations for wash, rinse, sanitize & soak.
  • 12" deep bowls with large 3" inside corner radii for fast, thorough clean-ups.
  • 18" left-hand drainboard with integrated splash keeps glassware & utensils organized and off the countertop.
  • 8" high backsplash with 1" tile edge speeds installation and protects surrounding walls.
  • Open frame base with 1⅝" O.D. tubular legs, stainless side cross-rails and 1" adjustable bullet feet for rock-solid stability.
  • All-inclusive 1½" IPS basket drains (one per bowl) are factory installed.
  • Pre-punched 8"-on-center faucet holes (two sets) – ready for dual deck-mount faucets.
  • NSF listed and fully compliant with commercial health codes.

At-a-Glance Specs

Series / Gauge Regaline 9 Series  |  18 ga 304 SS (Super Saver)
Compartments 4
Bowl Interior (L × W × D) 20" × 28" × 12"
Drainboard 18" left-hand, integrally TIG-welded
Backsplash 8" H with 1" tile edge
Overall Dimensions 112" L × 36" F/B × 44" H (to top of splash)
Drain Opening 1½" IPS basket type (included)
Faucet Holes 2 sets on 8" centers  •  Faucets sold separately
Legs / Feet 1⅝" tubular SS legs with side cross-rails & 1" adjustable bullet feet
Certifications NSF
Approx. Shipping Weight ≈ 317 lb

Popular Add-Ons (Sold Separately)

  • Deck-mount faucets (8" centers) – choose splash-mount or gooseneck styles.
  • Poly-Vance cutting boards & stainless sink covers for added prep space.
  • Lever-handle drain baskets and overflow assemblies.
  • Pre-rinses, soap dispensers, and knee-operated valve kits.
Heads up: Two deck-mount faucets are required for proper operation and are not included with the sink.

Need a different drainboard side, extra leg supports, or custom modifications? Advance Tabco’s Smart Fabrication™ team can build it—just ask!

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

112.0in

Depth

36.0in

Shipping Weight

317.0lbs

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Splash Height

8"

Base Type

legs with side crossrails

Compartment Width (side - side)

20"

Compartment (front - back)

28"

Top Gauge

18 gauge

Drainboards

with left-hand drainboard

Overall Length

98" - 113"

Base Construction

stainless steel

Specifications

Regaline Sink, 4-compartment, with left-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable feet, 18 gauge 304 stainless steel, overall 36" F/B x 112" L/R NSF (requires 2 faucets)
