Advance Tabco

Advance Tabco Regaline 3-Compartment Sink with Dual 36-Inch Drainboards, 20 x 28 Inch Bowls

SKU: 9-83-60-36RL
GTIN: 747545107022
$5,641.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Advance Tabco Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

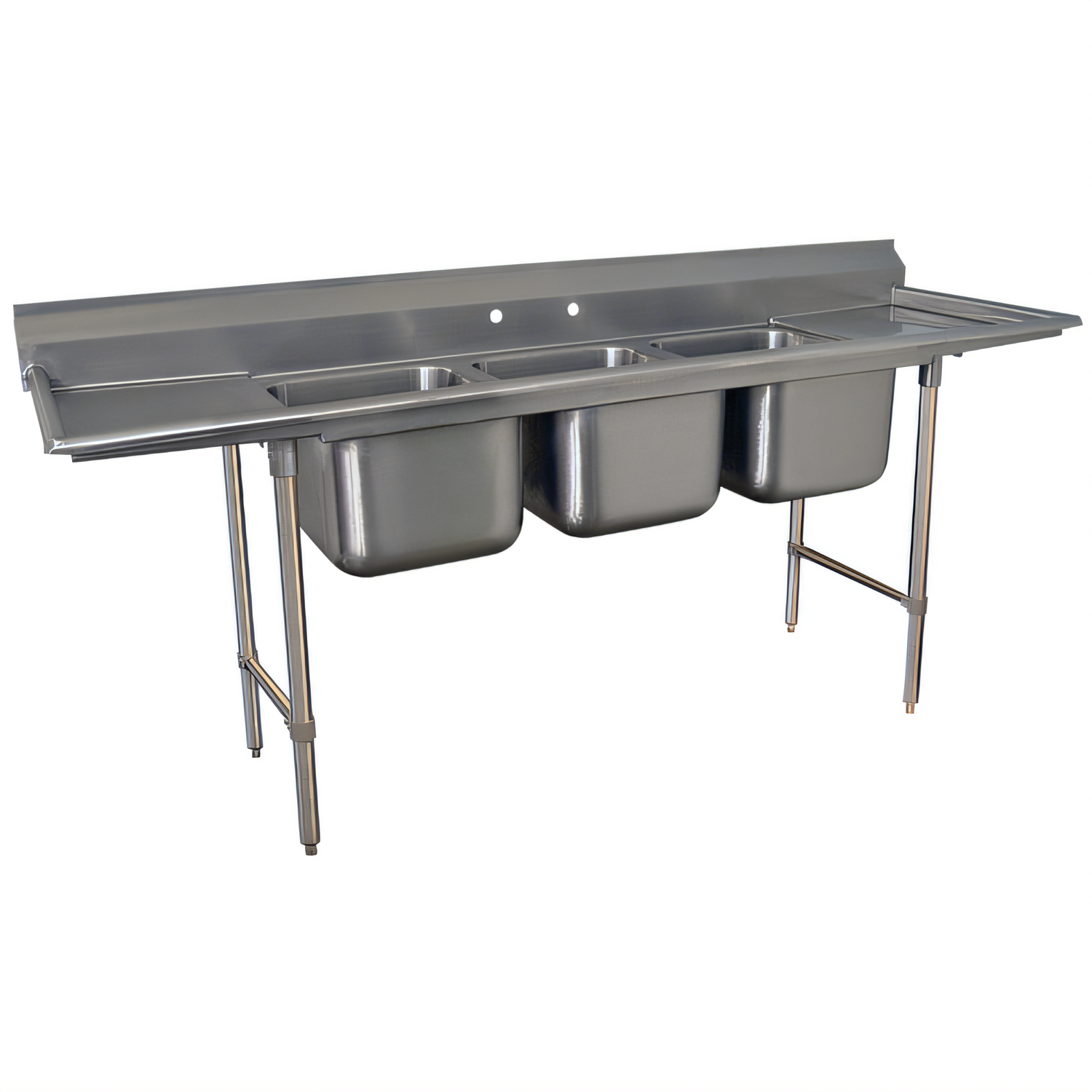

Advance Tabco Regaline 3-Compartment Sink with Dual 36-Inch Drainboards, 20 x 28 Inch Bowls

18 Gauge 304 Stainless Steel, 8 Inch Backsplash, Open Frame Base

This heavy-duty three-compartment sink adds full drainboards on both sides and rugged 18-gauge 304 stainless steel construction for busy prep and wash areas.

  • Three-compartment sink with left and right-hand drainboards for sorting, soaking, and staging.
  • Large 20" x 28" sink compartments with 12" depth provide generous working capacity.
  • 8" high backsplash helps protect the wall behind the sink from splashes.
  • Built from 18-gauge 304 stainless steel with TIG-welded construction.
  • Stainless steel open frame base with side crossrails adds strength and support.
  • 1" adjustable bullet feet help level the sink on uneven floors.
  • Center-mounted basket-type waste drains are included; faucets are not included.
  • 36" drainboards are supplied with additional support legs for stability.

Overall Dimensions:

139.0"W x 36.0"D x 42.0"H

Product Weight:

350.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Three-Compartment Layout

Three sink compartments with left and right-hand drainboards support dishwashing, prep, and pot washing workflows.

Large Bowl Size

Each compartment measures 20 inches wide by 28 inches front-to-back, giving operators plenty of usable space.

12-Inch Sink Depth

Deep bowls help contain water and reduce splash during heavy-duty use.

8-Inch Backsplash

The high backsplash helps protect adjacent walls and surfaces from water spray.

18-Gauge 304 Stainless Steel

Commercial-grade stainless steel construction is designed for durability and corrosion resistance.

Open Frame Base

Stainless steel open frame construction with side crossrails provides structural support while keeping the area underneath accessible.

Adjustable Bullet Feet

1-inch adjustable bullet feet make it easier to level the sink on uneven flooring.

Included Basket Drains

Center-mounted 1 1/2-inch IPS stainless steel basket-type waste drains are included.

Extra Drainboard Support

The 36-inch drainboards are supplied with two additional legs per drainboard for added support.

Type Three-Compartment Sink
Style With Left And Right Drainboards
Installation Type Floor Model
Compartments 3
Compartment Width 20 Inches
Compartment Depth 28 Inches
Sink Depth 12 Inches
Splash Height 8 Inches
Drainboard Length 36 Inches
Top Gauge 18 Gauge
Material 304 Stainless Steel
Interior Finish Stainless Steel
Base Construction Stainless Steel
Base Type Legs With Side Crossrails
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1 1/2 Inch IPS
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Plumbing PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It has three compartments.
Yes. This model includes left and right-hand drainboards.
Each compartment measures 20 inches wide by 28 inches front-to-back and 12 inches deep.
No. Faucets are not included, and the 36-inch drainboard configuration requires two faucets.
It is made from 18-gauge type 304 stainless steel.
Yes. Center-mounted 1 1/2-inch IPS basket-type waste drains are included.
