Advance Tabco 9-83-60-36R Regaline Compartment Sinks
Description

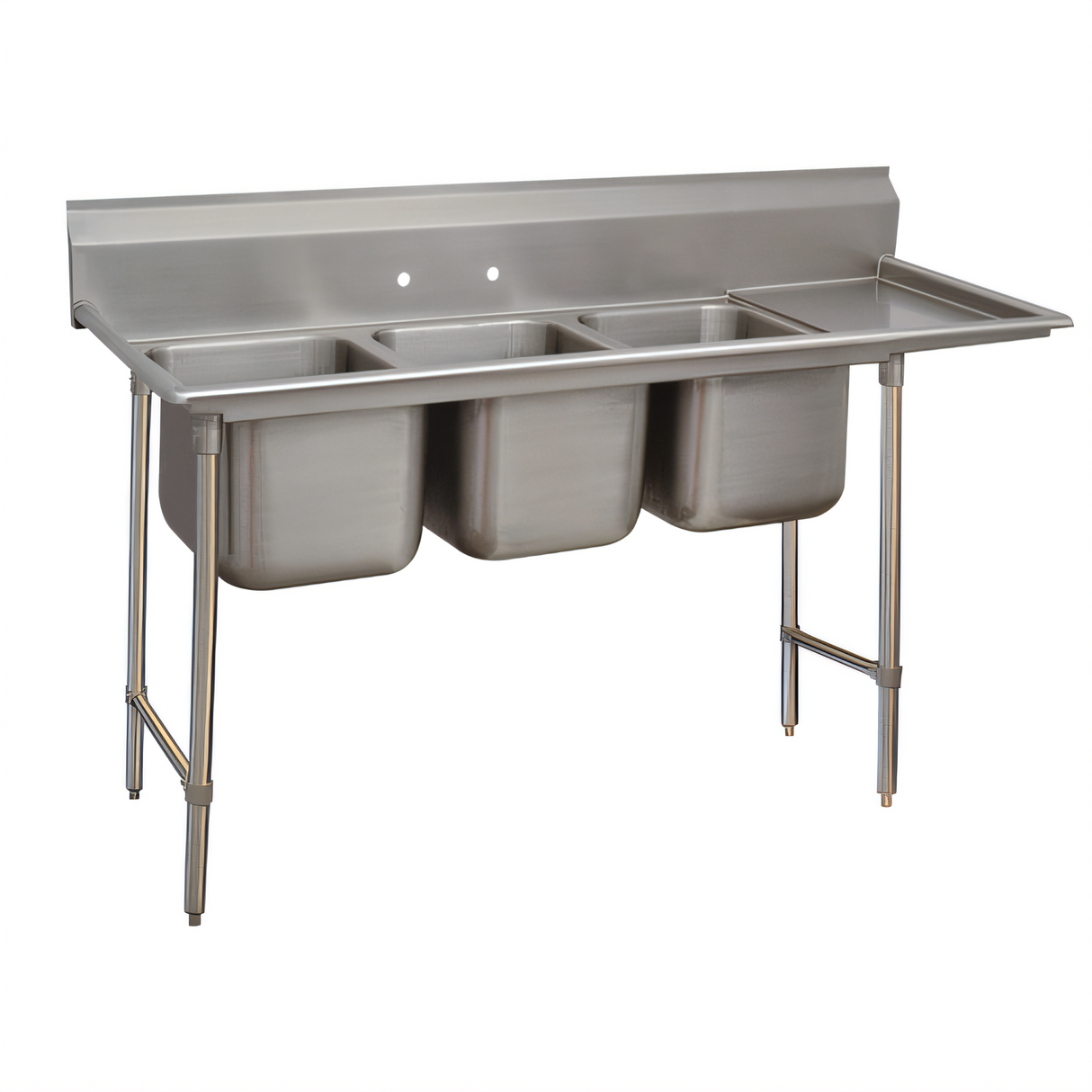

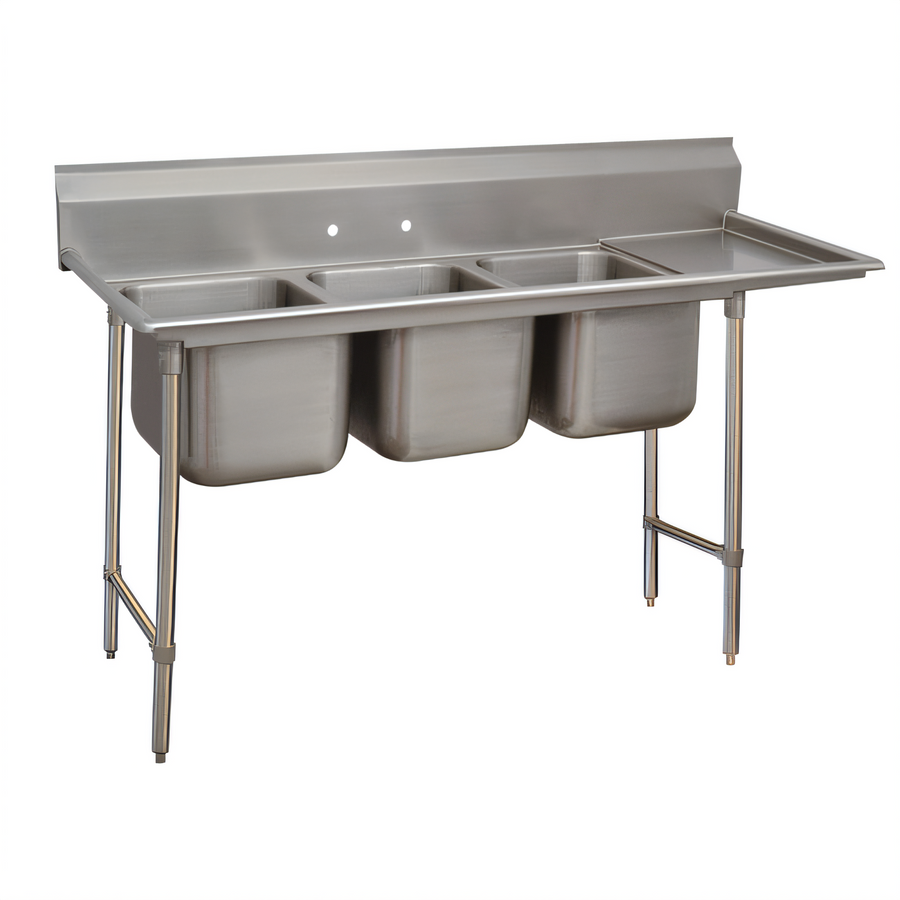

Advance Tabco “Regaline” 3-Compartment Sink
with 36" Right-Hand Drainboard
18 ga 304 Stainless Steel • NSF Listed • 108" L × 36" F/B
Built for high-volume dishrooms that refuse to compromise on sanitation or durability, the Regaline three-compartment sink combines Advance Tabco’s legendary TIG-welded construction with an extra-spacious 36" drainboard. Deep-drawn bowls, a full 8" backsplash and an open frame base create the dependable work centre that busy kitchens demand.
Why You’ll Love It
- Three generous 20" W × 28" F/B × 12" D bowls—ideal for wash, rinse & sanitize.
- 36" right-hand drainboard with stamped pitch for rapid water runoff.
- 18 ga type 304 stainless steel in the Super Saver 9 Series: light, strong & corrosion-proof.
- One-piece deep-drawn bowls with large 3" radius corners for effortless cleanup.
- 8" high backsplash with 8"-on-center faucet holes (faucets sold separately).
- Stainless 1 ⅝" O.D. tubular legs with adjustable side cross-bracing and 1" bullet feet.
- TIG-welded seams are blended to a satin finish—no crevices to trap food soil.
- (2) additional support legs under the 36" drainboard keep heavy racks stable.
- 1 ½" IPS stainless steel basket drains supplied—no extra parts to buy.
- NSF certified for food-service sanitation.
Technical Specifications
| Series / Gauge | Regaline 9 Series – 18 ga, type 304 SS |
|---|---|
| Compartments | 3 bowls, each 20" W × 28" F/B × 12" D |
| Drainboard | 36" (L) right-hand, integrally welded with splash |
| Overall Dimensions | 108" L × 36" F/B × 44" H (to top of backsplash) |
| Backsplash | 8" H, 1" return, faucet holes on 8" centers |
| Base | Open frame, side cross-rails, 1 ⅝" tubular legs, (6) legs total |
| Feet | 1" stainless adjustable bullet feet |
| Drains | (3) 1 ½" IPS stainless basket drains (centered in bowls) |
| Certifications | NSF |
| Ship Weight | Approx. 277 lb |
Installation & Plumbing
- Hot & cold supply: ½" IPS.
- Waste outlet: 1 ½" IPS to common trap (open floor, wall or through-floor drain rough-ins—see cut-sheet).
- Legs provide 1" height adjustment for leveling on uneven floors.
- 36" drainboard models ship with two extra legs; no additional supports required in the field.
Faucets, cutting boards, sink covers and other accessories are shown for demonstration purposes and are sold separately.
