Advance Tabco  |  Regaline  |  SKU: 9-83-60-36L  |  UPC: 747545107008

Advance Tabco 9-83-60-36L Regaline Compartment Sinks

$5,422.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

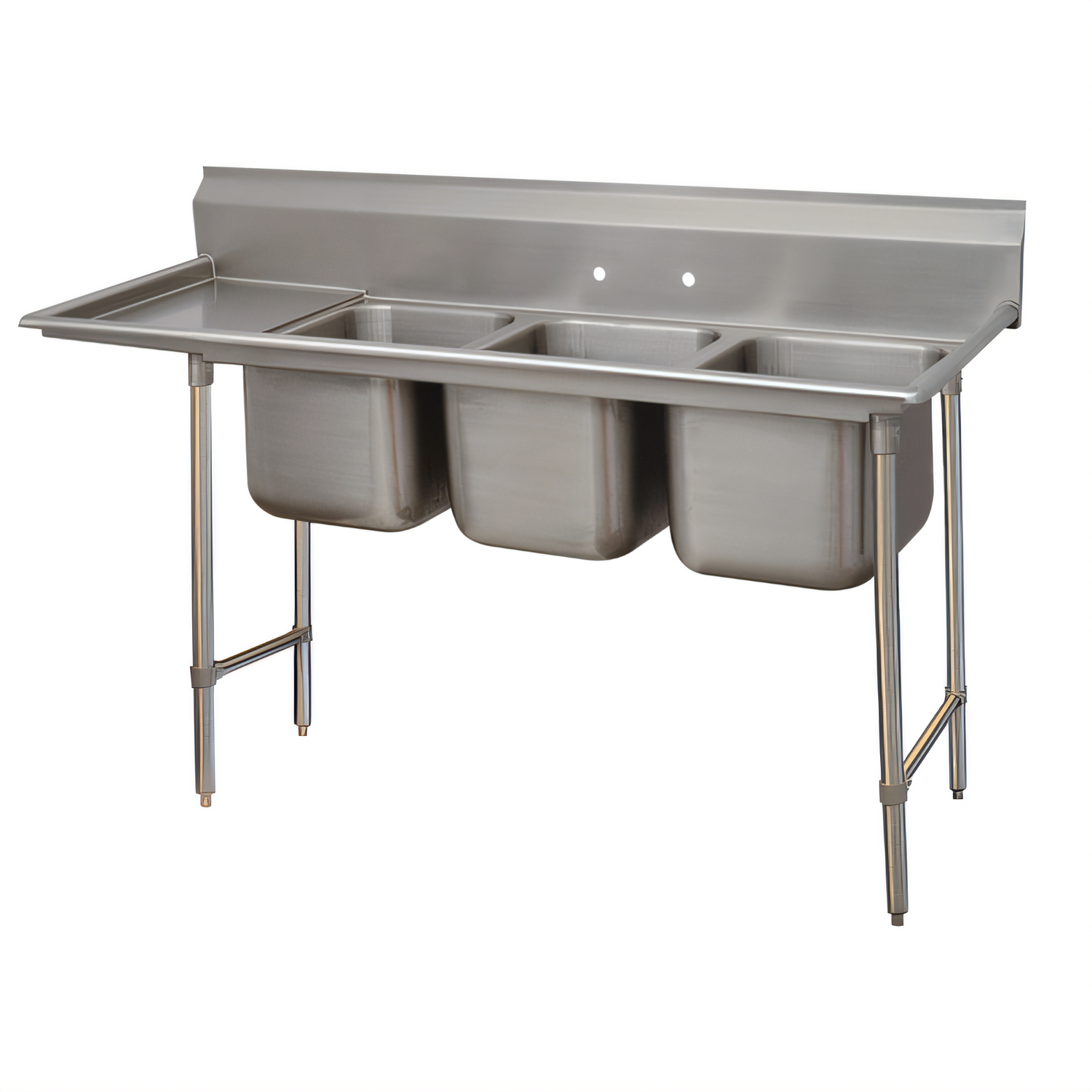

Advance Tabco “Regaline” 3-Compartment Sink with 36" Left Drainboard

Model 9-83-60-36 L • 18 ga 304 Stainless Steel • NSF

Built for high-volume dishrooms and commissary kitchens, the Regaline 9-Series combines extra-large bowl capacity with rock-solid TIG-welded construction. An integral 36" drainboard keeps workflow organized while the open frame base simplifies floor sanitation—giving you a rugged, code-ready solution straight out of the box.

Why You’ll Love It

  • Three spacious 20" W × 28" F/B × 12" D bowls accommodate roasting pans, sheet pans, and stock pots.
  • 36" left-hand drainboard with integral splash provides generous staging or air-drying space.
  • 8" high backsplash with tile edge for a quick, watertight wall seal.
  • 18 gauge type 304 stainless steel top & bowls resist corrosion and heavy chemical use.
  • Fully TIG welded; welds are blended to a smooth, sanitary satin finish.
  • Open tubular base with adjustable side cross-bracing—no front bracing to block clean-up access.
  • 1 ⅝" Ø stainless legs with 1" adjustable bullet feet for fast, wobble-free leveling.
  • (3) 1 ½" IPS stainless basket drains supplied and installed.
  • Pre-punched 8" on-center faucet holes (faucets sold separately).
  • NSF listed for food-service sanitation and hygiene.

At-a-Glance Specifications

Overall Dimensions 36" F/B × 108" L/R × 43" H (to top of backsplash)
Compartments 3
Bowl Interior (each) 20" W × 28" F/B × 12" D
Drainboard 36" (left side) with 8" splash
Backsplash Height 8"
Material / Gauge 18 ga type 304 stainless steel
Base Style Stainless open frame with side cross-rails
Legs & Feet 1 ⅝" Ø S/S legs, 1" adjustable S/S bullet feet
Drain Size / Type 1 ½" IPS center drains with basket strainers (included)
Faucet Mount 8" on-center (3 holes)
Approx. Weight 277 lb
Certifications NSF

Looking for different bowl sizes, drainboard sides, or custom modifications? Ask about Advance Tabco’s Smart Fabrication™ options.

Installation Notice: Faucets, supply lines, and P-traps are not included. Units with 36" drainboards ship with two additional support legs—install all legs to maintain NSF compliance and warranty coverage. Always follow local plumbing codes.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

108.0in

Depth

36.0in

Shipping Weight

277.0lbs

Drainboards

with left-hand drainboard

Compartment (front - back)

28"

Overall Length

97" - 108"

Base Type

legs with side crossrails

Splash Height

8"

Compartment Width (side - side)

20"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Base Construction

stainless steel

Top Gauge

18 gauge

Specifications

Regaline Sink, 3-compartment, with left-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboard, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 36" F/B x 108" L/R, NSF
