Advance Tabco  |  Regaline  |  SKU: 9-83-60-24R  |  UPC: 747545106988

Advance Tabco 9-83-60-24R Regaline Compartment Sinks

$5,388.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Plumbing
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

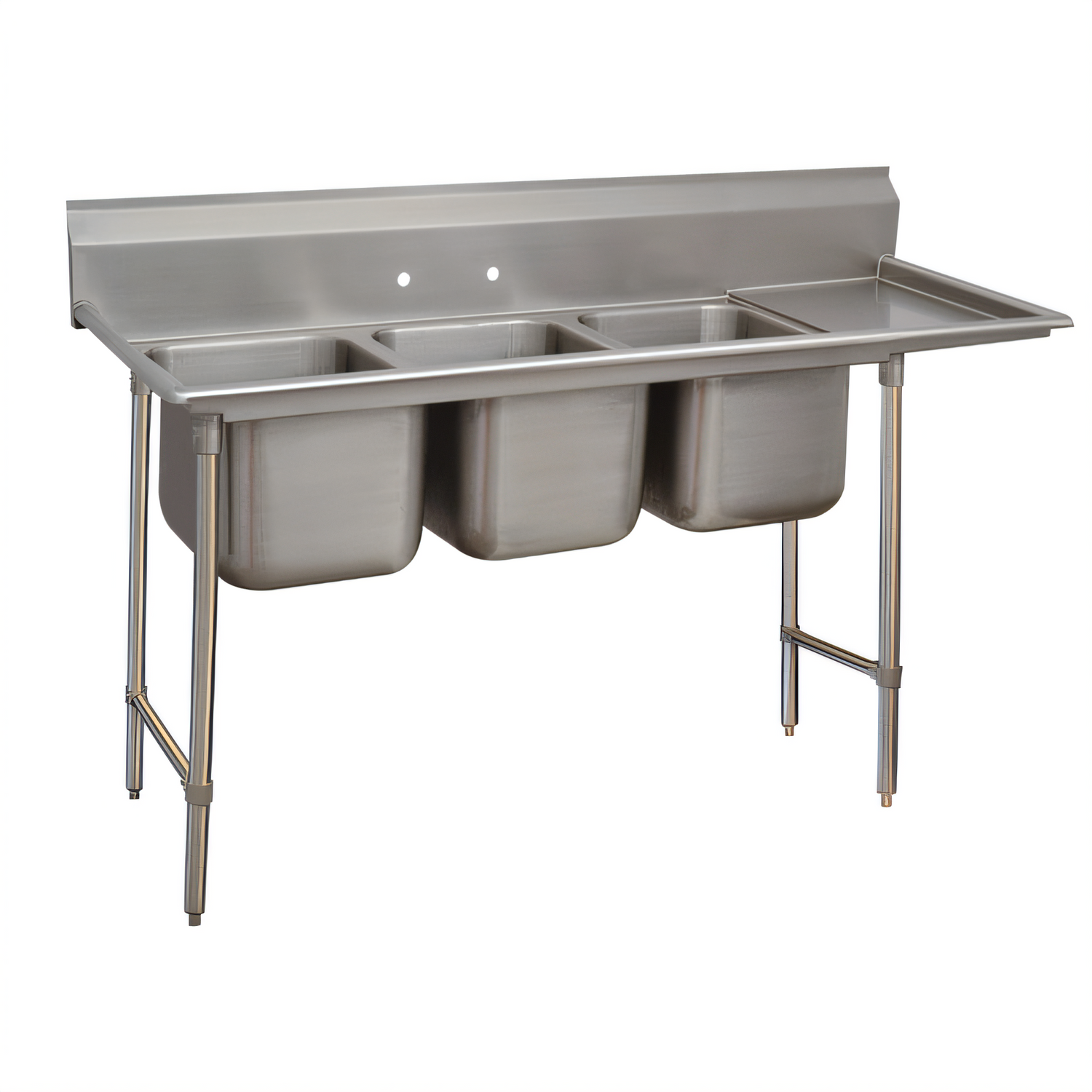

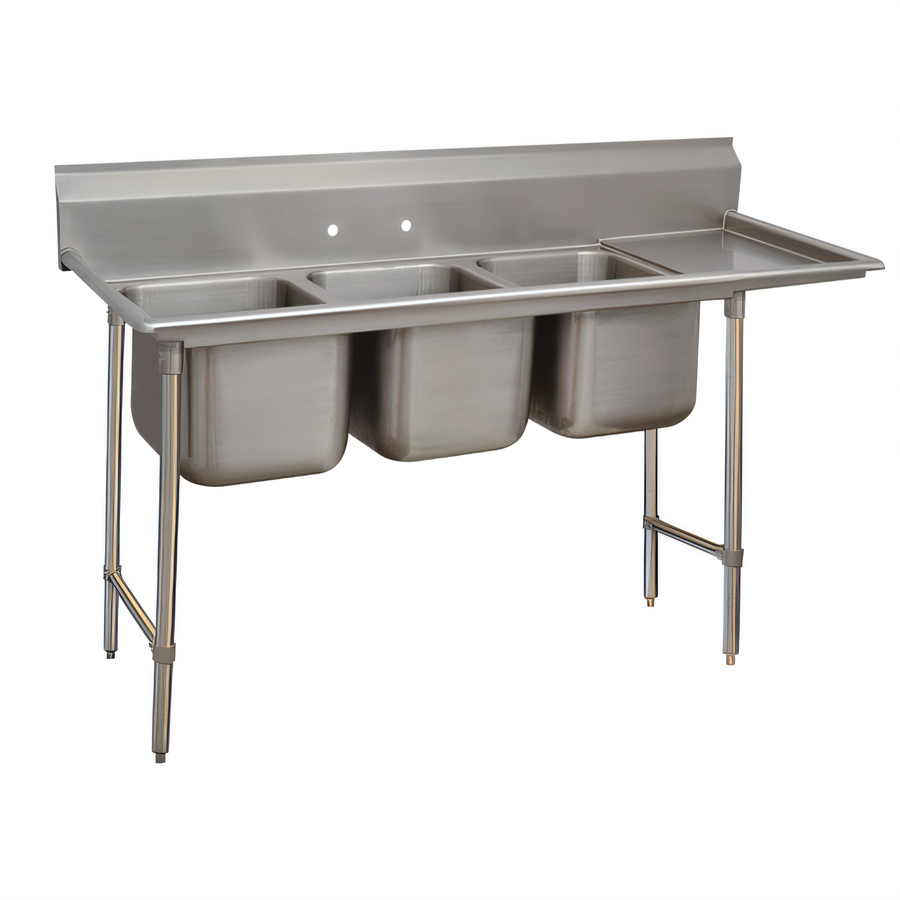

Advance Tabco Regaline 3-Compartment Sink w/ 24" Right-Hand Drainboard

Model 9-83-60-24R | NSF Listed

Engineered for demanding commercial kitchens, this Regaline Super Saver sink delivers rugged durability, easy sanitation and the workflow efficiency today’s dishrooms expect.

Key Features
  • Three seamless 20" W × 28" F/B × 12" D bowls with generous 3" radius corners for quick clean-up.
  • 24" right-hand drainboard slopes toward the bowls to keep countertops dry.
  • 8" backsplash with 2" return helps contain splashes and meets health-code requirements.
  • All TIG-welded 18-gauge 304 SS construction; welds are ground and polished to a uniform satin finish.
  • Open tubular base with adjustable side crossrails—strong, light and easy to clean underneath.
  • 1 ⅝"-diameter stainless legs with 1" adjustable bullet feet for on-site levelling.
  • Factory-punched 8"-on-center faucet holes (faucets sold separately).
  • Three 1 ½" IPS basket drains included.
  • NSF certified for food-service sanitation.
Specifications
Overall dimensions 96" L × 36" F/B × 44" H (to top of backsplash)
Compartments 3
Bowl size (each) 20" W × 28" F/B × 12" D
Drainboard 24" right-hand, integrally welded
Backsplash height 8"
Material 18-gauge type 304 stainless steel (sink & drainboard)
Legs / feet 1 ⅝" Ø stainless legs with 1" SS bullet feet
Plumbing connections 1 ½" IPS drains; faucet holes on 8" centers, ½" IPS hot & cold supplies
Certifications NSF
Ideal Applications
  • High-volume restaurant dishrooms
  • School & hospital food-service operations
  • Commissaries & ghost kitchens
  • Food-processing & meat-cutting facilities
Note: Faucets, overflow drains and pre-rinse units are sold separately.

Advance Tabco continually improves its products; specifications may change without notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

96.0in

Depth

36.0in

Shipping Weight

268.0lbs

Splash Height

8"

Drainboards

with right-hand drainboard

Overall Length

85" - 96"

Base Type

legs with side crossrails

Compartment (front - back)

28"

Compartment Width (side - side)

20"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Base Construction

stainless steel

Top Gauge

18 gauge

Specifications

Regaline Sink, 3-compartment, with right-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboard, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 36" F/B x 96" L/R, NSF
