Advance Tabco 9-83-60-24L Regaline Compartment Sinks
$5,388.00
Unit price
/
Unavailable
Description

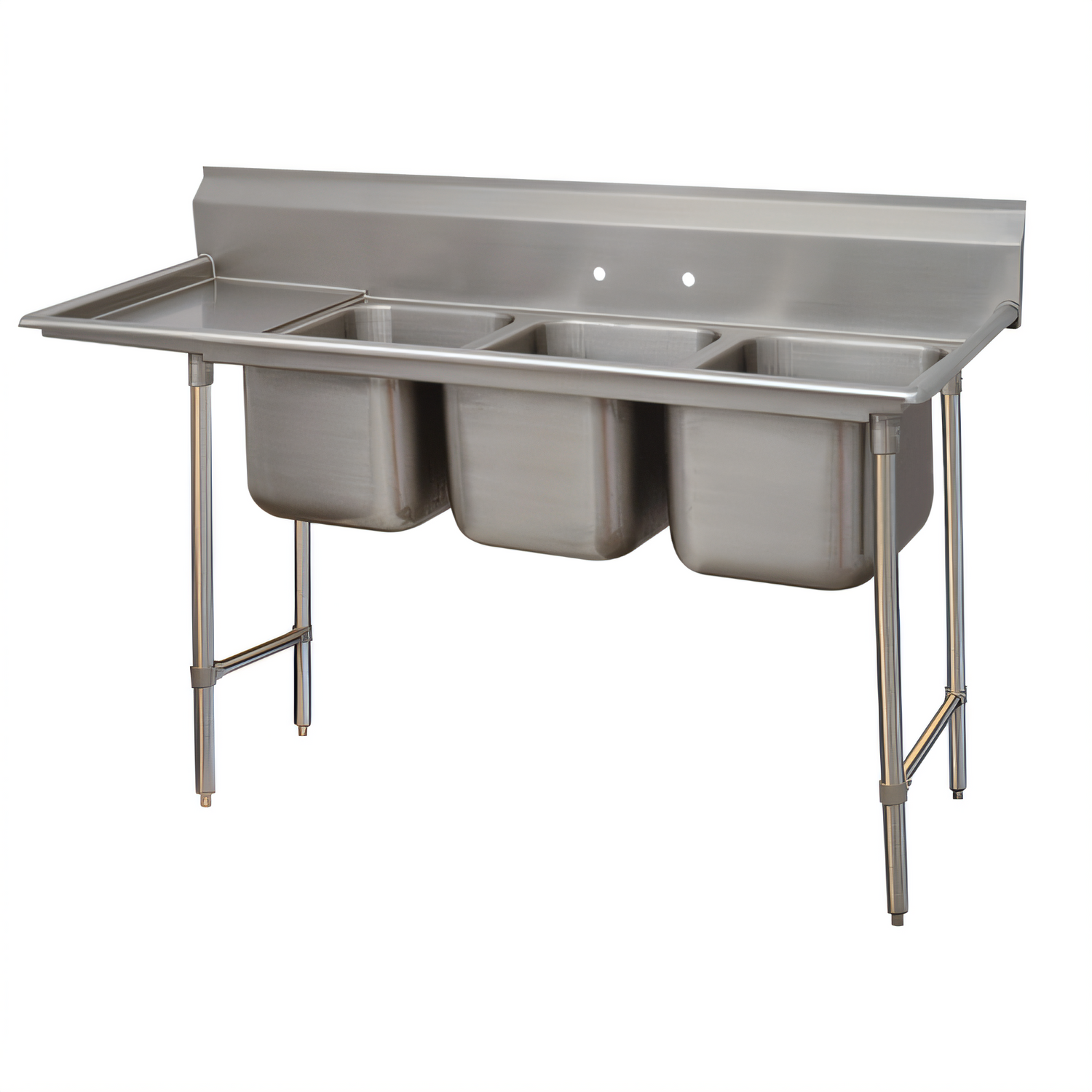

Advance Tabco Regaline – 3-Compartment Sink with 24" Left Drainboard
Super Saver 9 Series | 18 Ga. 304 Stainless Steel | NSF CertifiedEngineered for high-volume warewashing, this Regaline sink combines rugged TIG-welded construction, generous bowl capacity and a full-size drainboard to keep even the busiest prep area clean and organized.
Key Features
- Three seamless sink bowls – each 28" front-to-back × 20" wide × 12" deep
- Integral 24" left-hand drainboard with splash to contain runoff
- 8" high backsplash with tile edge for a sanitary, watertight wall seal
- 18-gauge type 304 stainless steel top, bowls & splash: corrosion-resistant and easy to sanitize
- All TIG-welded; welds are blended to a satin finish for a professional look
- Open stainless steel frame base with 1 5⁄8" Ø legs, stainless gussets and adjustable side cross-rails for extra rigidity
- 1" stainless steel bullet feet – height-adjustable for fast leveling
- Large 3" radius bowl corners speed cleanup and promote complete drainage
- (3) 1 ½" IPS stainless steel basket drains included
- Pre-punched faucet holes on 8" centers – ready for wall or splash-mounted faucets*
At-a-Glance Specifications
| Overall dimensions (L × F/B) | 96" L × 36" F/B |
|---|---|
| Number of compartments | 3 |
| Compartment size (each) | 28" F/B × 20" W × 12" D |
| Drainboard | 24" left-hand |
| Backsplash height | 8" |
| Material thickness | 18 ga. type 304 stainless steel |
| Legs / bracing | 1 5⁄8" Ø stainless legs with adjustable side cross-bracing |
| Feet | 1" adjustable stainless bullet feet |
| Drains | (3) 1 ½" IPS basket strainers (centered) |
| Faucet holes | (3) sets, 8" on-center* |
| Certifications | NSF |
| Shipping weight | Approx. 268 lb |
*Faucets are sold separately. Compatible pre-rinse units, splash-mount faucets and other accessories are available in the Accessories tab.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
42.0in
Width
96.0in
Depth
36.0in
Shipping Weight
268.0lbs
Drainboards
with left-hand drainboard
Compartment (front - back)
28"
Splash Height
8"
Base Type
legs with side crossrails
Overall Length
85" - 96"
Compartment Width (side - side)
20"
Sink Depth (rim - drain)
12"
Top Stainless Series
300 series
Base Construction
stainless steel
Top Gauge
18 gauge
Specifications
Regaline Sink, 3-compartment, with left-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboard, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 36" F/B x 96" L/R, NSF
