Advance Tabco  |  SKU: 9-83-60-18RL

Advance Tabco 9-83-60-18RL Regaline Compartment Sinks

$5,192.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

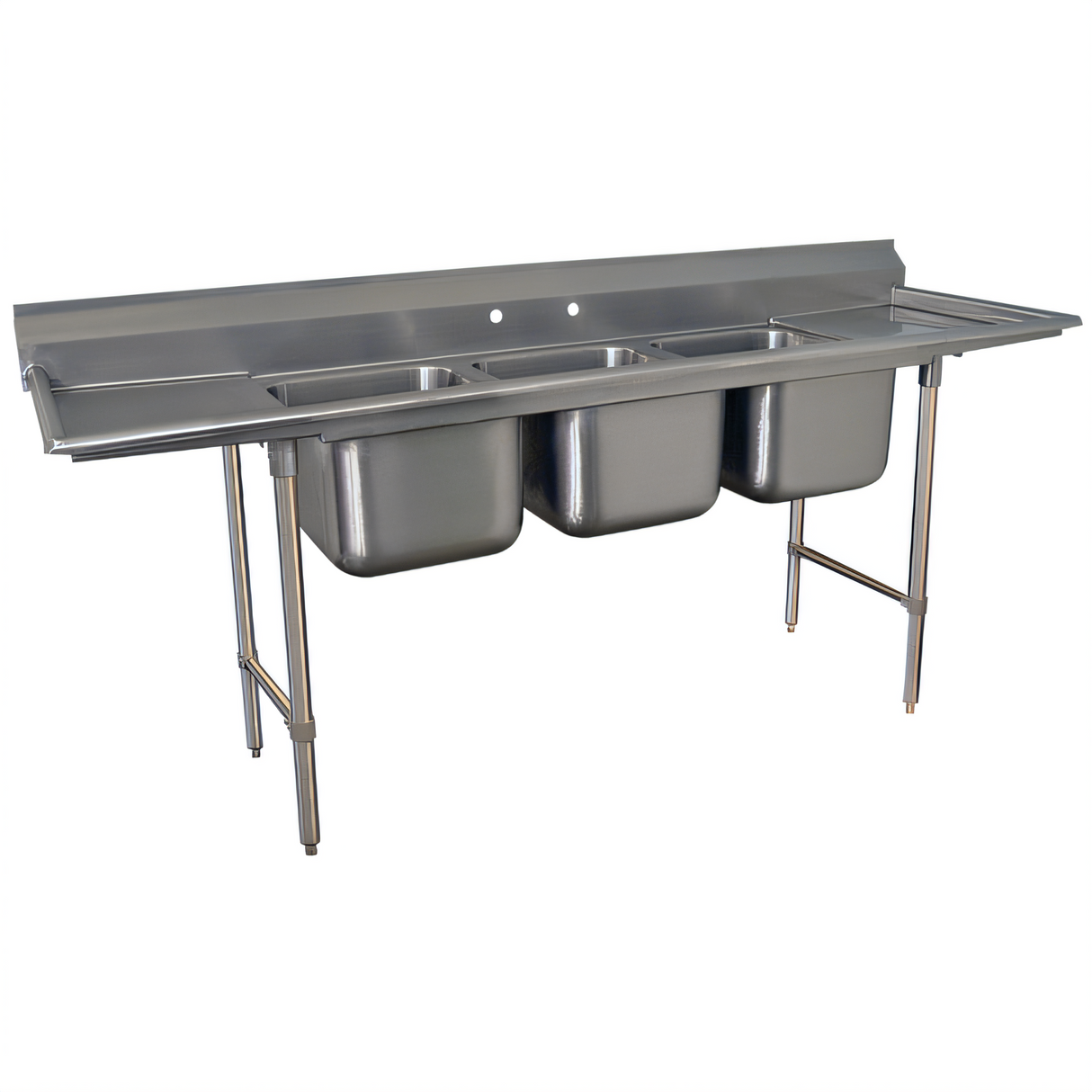

Advance Tabco Regaline 9 Series 3-Compartment Sink with Dual 18" Drainboards

Model 9-83-60-18RL | NSF Listed

Engineered for demanding food-service operations, the Regaline 9 Series combines rugged 18 gauge 304 stainless steel with smart, labor-saving details that keep ware-washing running smoothly shift after shift.

Why You’ll Love It
  • Three deep-drawn bowls — 20" W × 28" F/B × 12" D — handle everything from sheet pans to stock pots.
  • Left and right 18" drainboards with integral splash provide dedicated landing zones for dirty and clean ware.
  • 8" backsplash with tile edge and 2" return protects walls and simplifies installation.
  • 18 ga type 304 stainless steel (Super Saver 9 Series) delivers excellent corrosion resistance while keeping weight down.
  • Fully TIG-welded; welds are blended and polished to a uniform satin finish.
  • Open frame base with 1-5/8" O.D. tubular S/S legs, stainless gussets and adjustable side cross-rails for outstanding rigidity.
  • 1" stainless steel adjustable bullet feet level the sink on uneven floors.
  • Pre-punched 8" on-center faucet holes (faucets sold separately).
  • (3) 1-1/2" IPS stainless steel basket drains included.
Specifications
Brand / Series Advance Tabco Regaline 9 Series (Super Saver)
Model No. 9-83-60-18RL
Compartments (3) 20" W × 28" F/B × 12" D bowls
Drainboards (2) 18" integral, left & right
Overall Length 103" (left → right)
Overall Depth 36" (front → back)
Backsplash Height 8"
Material / Gauge 18 ga type 304 stainless steel
Legs / Feet 1-5/8" O.D. tubular S/S legs with S/S bullet feet
Faucet Holes (1 set) 8" on-center, 1-1/8" dia.
Drain Size (3) 1-1/2" IPS basket drains (included)
Approx. Shipping Weight 277 lb (crated)
Certifications NSF

Dimensions are nominal; shipping weight is approximate.

Important: Faucets, plumbing fittings and installation hardware are sold separately. Always verify local code requirements before installation.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

103.0in

Depth

36.0in

Shipping Weight

227.0lbs

Overall Length

97" - 108"

Compartment (front - back)

28"

Splash Height

8"

Base Type

legs with side crossrails

Compartment Width (side - side)

20"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Base Construction

stainless steel

Top Gauge

18 gauge

Drainboards

with left & right-hand drainboards

Specifications

Regaline Sink, 3-compartment, with left & right-hand drainboards, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboards, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 36" F/B x 103" L/R, NSF
