Advance Tabco  |  Regaline  |  SKU: 9-83-60-18R  |  UPC: 747545106926

Advance Tabco 9-83-60-18R Regaline Compartment Sinks

$5,336.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

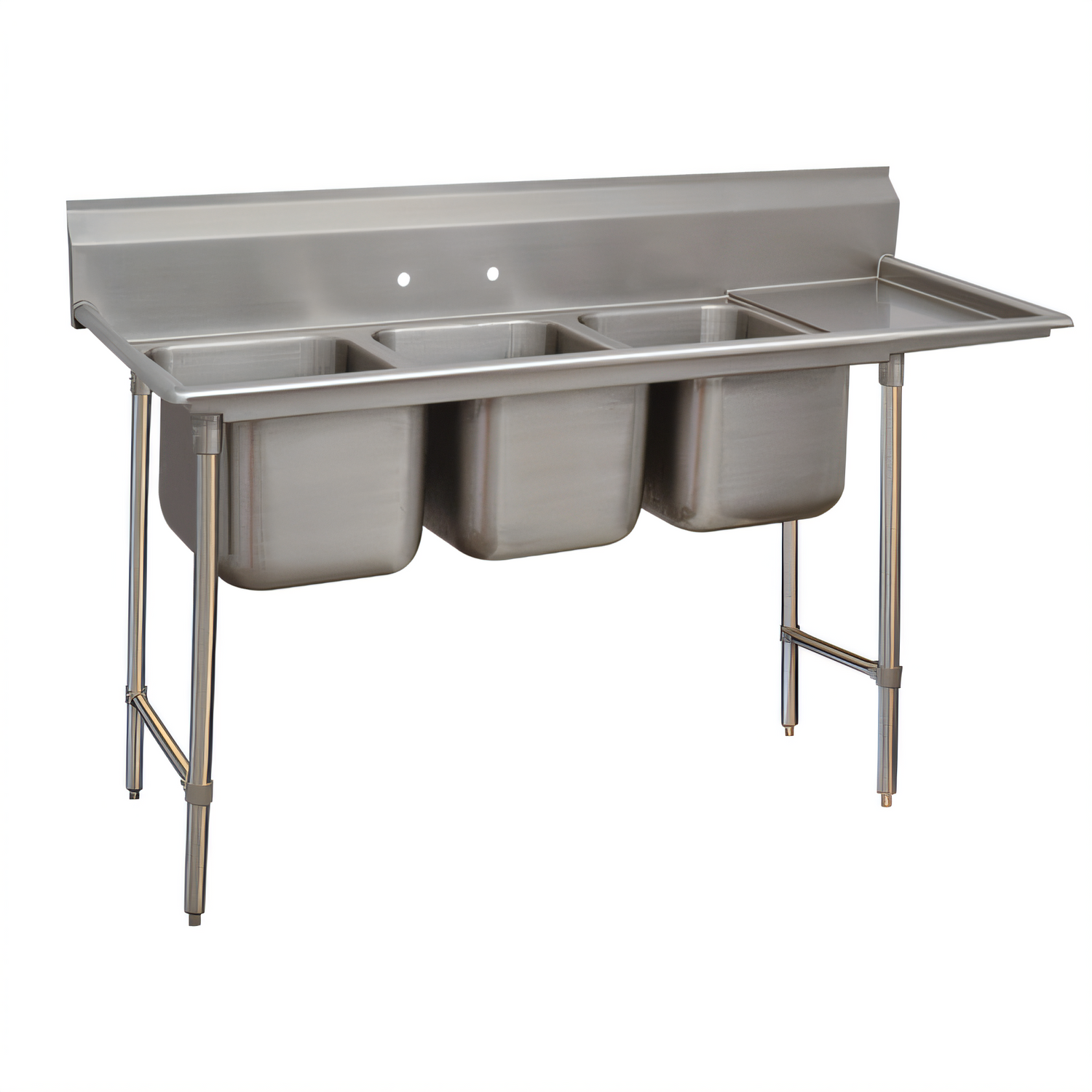

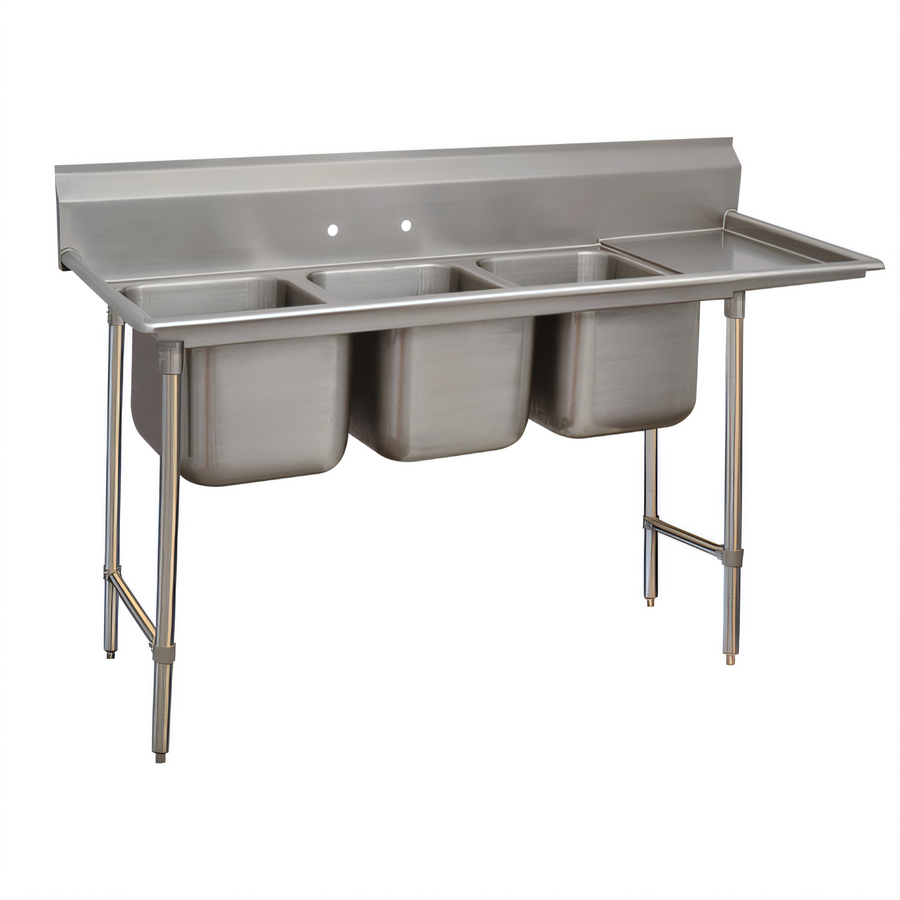

Advance Tabco Regaline 3-Compartment Sink with 18" Right Drainboard

Model 9-83-60-18R  |  90" L × 36" F/B | NSF Listed

Built for demanding commercial environments, the Regaline “Super Saver” series delivers professional-grade durability in an economical 18 ga 304 stainless package. Three spacious 20" × 28" × 12" bowls, an integrated 18" right-side drainboard and a sanitary 8" backsplash create a complete ware-washing workstation that installs fast and cleans even faster.

Key Features

  • (3) deep-drawn bowls: 20" wide × 28" front-to-back × 12" deep, with easy-clean 3" corner radius
  • 18" wide drainboard (right-hand) with raised marine edge to keep water on the deck
  • All TIG-welded seams, blended to a smooth satin finish for a seamless look and feel
  • Heavy-duty open frame base with 1 5⁄8" Ø stainless legs, side cross-bracing & 1" adjustable bullet feet
  • 8" high backsplash with 2" return and pre-punched 8"-on-center faucet holes (½" IPS)
  • (3) 1-½" IPS stainless basket drains included—centered in each bowl
  • Food-grade 18 ga type 304 stainless steel throughout; resists rust, chemicals & high heat
  • NSF certified for food-service sanitation compliance

Specifications

Overall dimensions 90" L × 36" F/B × 44" H (to top of backsplash)
Bowl interior (each) 20" L × 28" F/B × 12" D
Drainboard 18" W, right-hand
Backsplash height 8"
Material 18 ga 304 stainless steel
Legs / base 1 5⁄8" Ø stainless tubing with side cross-rails
Adjustable feet 1" stainless bullet feet
Plumbing (3) 1-½" IPS drains; faucet holes on 8" centers (faucets not included)
Certifications NSF

Perfect For

  • High-volume dish & pot washing stations
  • Restaurant, hotel & banquet kitchens
  • Schools, hospitals & institutional cafeterias
  • Food-truck commissaries needing a space-efficient 3-bay sink
Note: Faucet(s) and additional plumbing connections are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

90.0in

Depth

36.0in

Shipping Weight

225.0lbs

Splash Height

8"

Drainboards

with right-hand drainboard

Overall Length

85" - 96"

Base Type

legs with side crossrails

Compartment (front - back)

28"

Compartment Width (side - side)

20"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Base Construction

stainless steel

Top Gauge

18 gauge

Specifications

Regaline Sink, 3-compartment, with right-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 36" F/B x 90" L/R, NSF
