Advance Tabco  |  Regaline  |  SKU: 9-83-60-18L  |  UPC: 747545106919

Advance Tabco 9-83-60-18L Regaline Compartment Sinks

$5,336.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

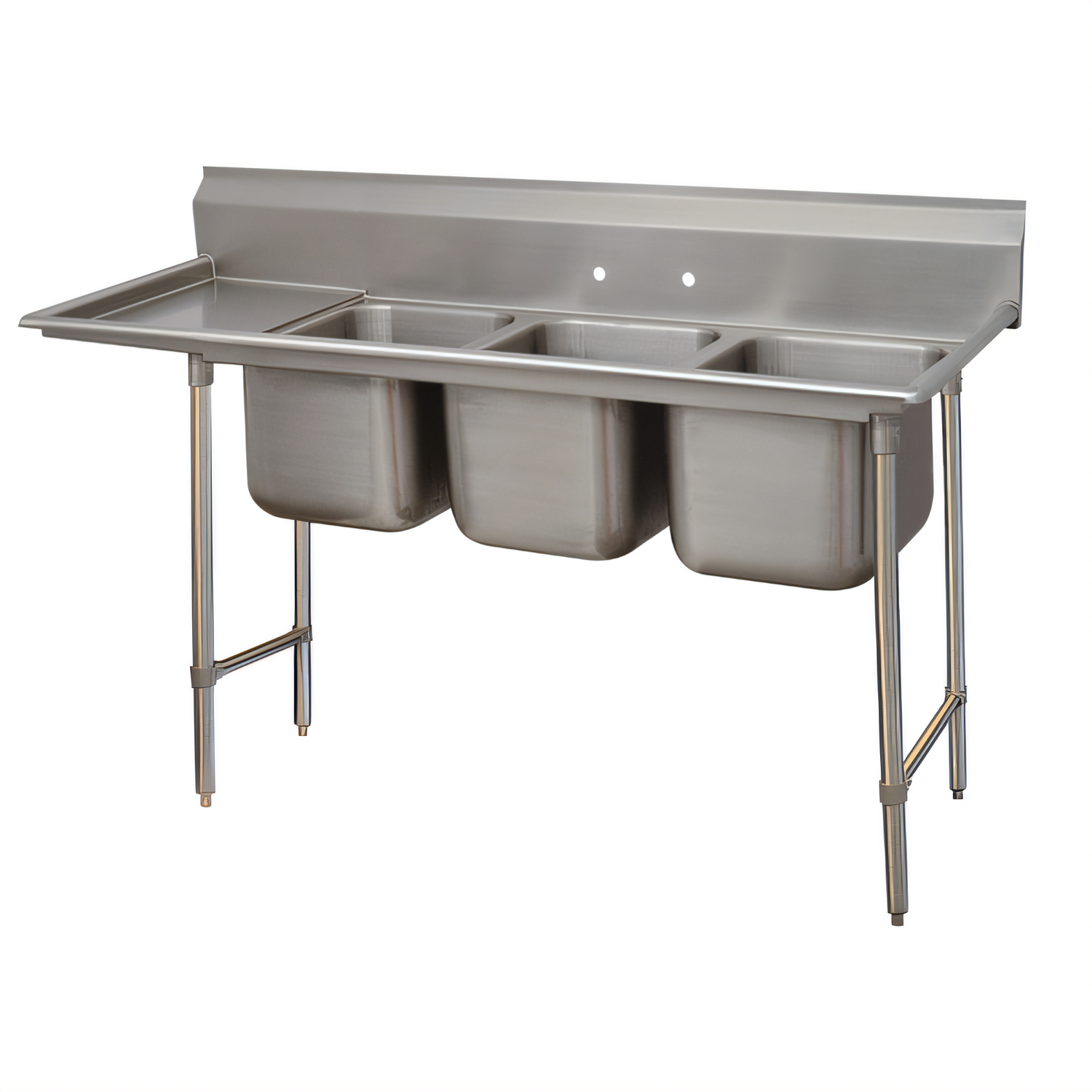

Advance Tabco “Regaline” 3-Compartment Sink with 18" Left-Hand Drainboard

Model 9-83-60-18L • 18 ga Type 304 Stainless Steel • NSF Certified

Built for high-volume warewashing and prep, the Advance Tabco Regaline Series combines heavy-duty construction with smart, labor-saving details. Three extra-large bowls handle oversize sheet pans, stock pots, and bussing racks, while the integrated 18" drainboard keeps work areas organized and sanitary.

Why You’ll Love It

  • Roomy 20" W x 28" F/B x 12" D deep-drawn bowls with generous 3" radiused corners for fast cleanup.
  • 18" left-hand drainboard sloped toward the sink to speed draining and drying.
  • 8" backsplash (with 2" return) protects walls and contains splashes.
  • Entire unit fabricated from 18 gauge type 304 stainless steel for outstanding corrosion resistance.
  • All-TIG-welded seams are blended to a satin finish for a seamless, professional appearance.
  • Open stainless steel frame with 1 5/8" Ø tubular legs, stainless gussets, and adjustable side cross-bracing for rock-solid stability.
  • 1" stainless steel bullet feet let you level the sink on uneven floors.
  • Pre-punched 8"-on-center faucet holes; accepts most commercial faucets (sold separately).
  • (3) 1 1/2" IPS basket drains included—no need for add-ons.

Quick Specs

Model 9-83-60-18L
Bowl Count / Size 3 bowls — 20" W × 28" F/B × 12" D each
Drainboard 18" (left side, integrally welded)
Overall Dimensions 90" L × 36" F/B × 34" H to work surface (42" H to top of backsplash)
Material / Gauge Type 304 stainless steel, 18 ga
Backsplash 8" high with 2" return
Faucet Holes (2) holes on 8" centers, 1/2" IPS hot & cold supply
Drains (3) 1 1/2" IPS basket-type drains (centered)
Legs / Feet 1 5/8" Ø stainless legs with adjustable side cross-rails & 1" bullet feet
Certifications NSF
Shipping Weight Approx. 225 lb.

Engineered for Heavy Use

From busy hotel dishrooms to commissary prep lines, Regaline sinks are designed to take a beating and still look great. Adjustable side cross-braces tighten with leg clamps to eliminate wobble, and large 3" radiused bowl corners clean up in seconds—saving precious labor every shift.

Installation

  • Arrives fully welded; simply set in place, level, and connect supply & waste lines.
  • Punchings accept standard 8"-center splash-mount faucets (not included).
  • Requires 1/2" IPS hot & cold water and 1 1/2" IPS waste per bowl (see cut sheet for rough-in).
Note: Faucet, cutting boards, and sink covers are shown for reference only and are sold separately. Advance Tabco may update specifications without notice; please consult the latest cut sheet before installation.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

90.0in

Depth

36.0in

Shipping Weight

225.0lbs

Drainboards

with left-hand drainboard

Compartment (front - back)

28"

Splash Height

8"

Base Type

legs with side crossrails

Overall Length

85" - 96"

Compartment Width (side - side)

20"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Base Construction

stainless steel

Top Gauge

18 gauge

Specifications

Regaline Sink, 3-compartment, with left-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 36" F/B x 90" L/R, NSF
