Advance Tabco 9-82-40-36RL Regaline Compartment Sinks
Description

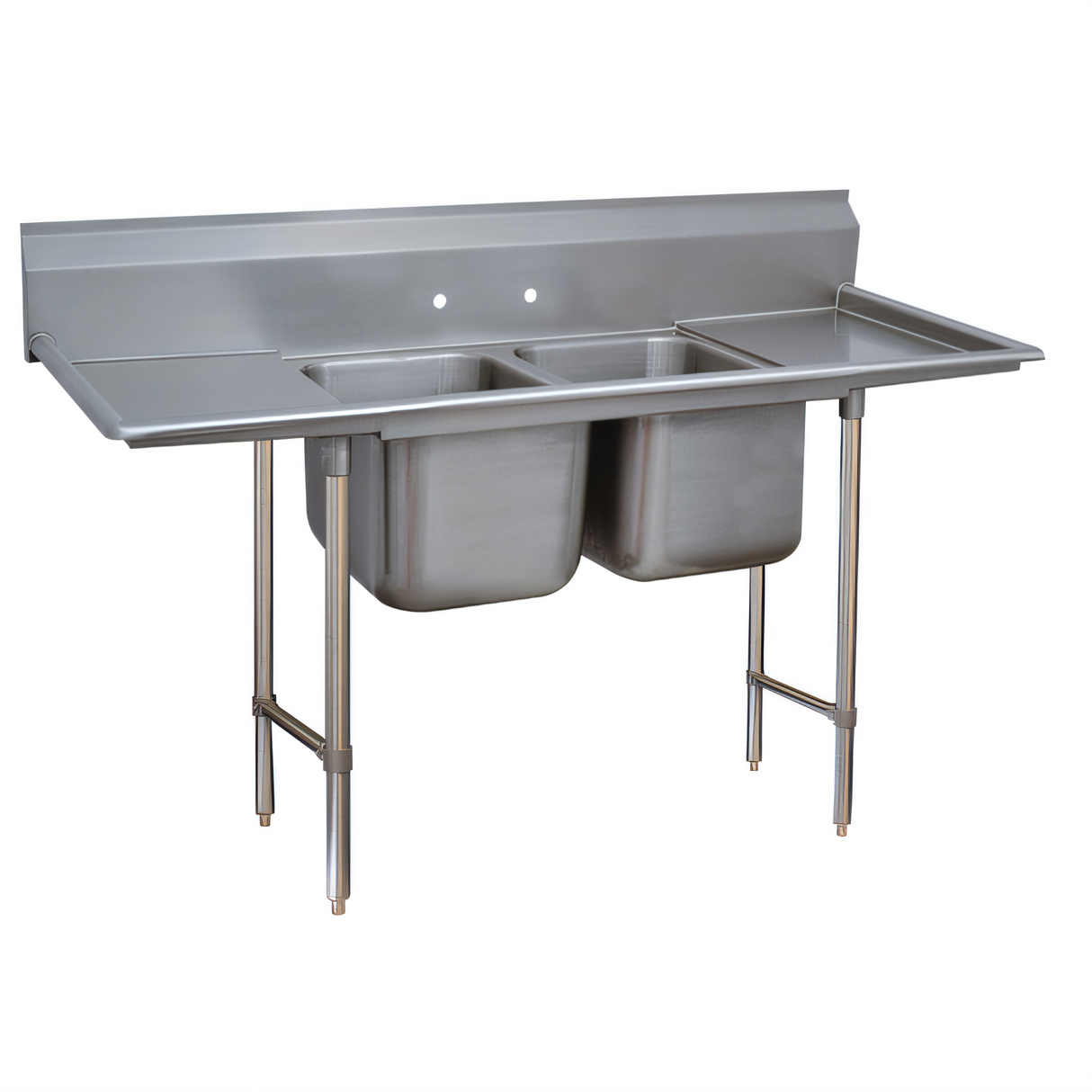

Advance Tabco Regaline 9-Series 2-Compartment Sink w/ Dual 36" Drainboards
Model 9-82-40-36RL • 18 ga 304 SS • NSF CertifiedGive staff the room they need to rinse, wash and air-dry in one continuous work station. Built from food-grade 304 stainless steel, this Regaline sink pairs two oversized bowls with extra-long drainboards on both sides—perfect for high-volume dish or prep lines that demand durability and effortless sanitation.
Key Features
- 18 ga type 304 stainless steel – durable & corrosion-resistant economy choice in the Regaline line.
- (2) seamless deep-drawn bowls, 28" F/B × 20" W × 12" D, with generous 3" radius corners for easy cleaning.
- Left & right 36" drainboards with raised marine edge and integral splash; each board reinforced by two additional legs.
- 8" high backsplash with tile edge for a watertight, finish-grade wall seal.
- All TIG-welded construction; welds ground & blended to a uniform satin finish.
- 1 ⅝" O.D. tubular stainless legs, side cross-rails and stainless gussets create a rigid open-frame base.
- 1" adjustable stainless bullet feet level the unit on uneven floors.
- 1 ½" IPS basket drains supplied; faucet holes punched on 8" centers (faucets sold separately).
- NSF listed for food-contact safety.
At-a-Glance Specifications
| Manufacturer / Series | Advance Tabco – Regaline 9 Series (Standard) |
|---|---|
| Model | 9-82-40-36RL |
| Compartments | 2 |
| Bowl Size (each) | 28" F/B × 20" W × 12" D (14" flood level) |
| Drainboards | (2) × 36" with splash & marine edge |
| Overall Dimensions | 36" F/B × 117" L/R × ≈45" H (to top of backsplash) |
| Backsplash Height | 8" |
| Material / Gauge | 18-ga type 304 stainless steel |
| Legs & Bracing | 1 ⅝" tubular SS legs, side cross-rails; extra legs under each drainboard |
| Feet | 1" adjustable stainless bullet feet |
| Drain Opening | 1 ½" IPS basket drains (centered) |
| Faucet Mount | (2) 1 ⅛" holes on 8" centers |
| Certifications | NSF Standard 2 |
| Shipping Weight / Cube | Approx. 261 lb / 96 cu ft |
Faucets, pre-rinse units and additional plumbing hardware are not included and may be purchased separately.
