Advance Tabco  |  Regaline  |  SKU: 9-82-40-36R  |  UPC: 747545106889

Advance Tabco 9-82-40-36R Regaline Compartment Sinks

$4,435.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

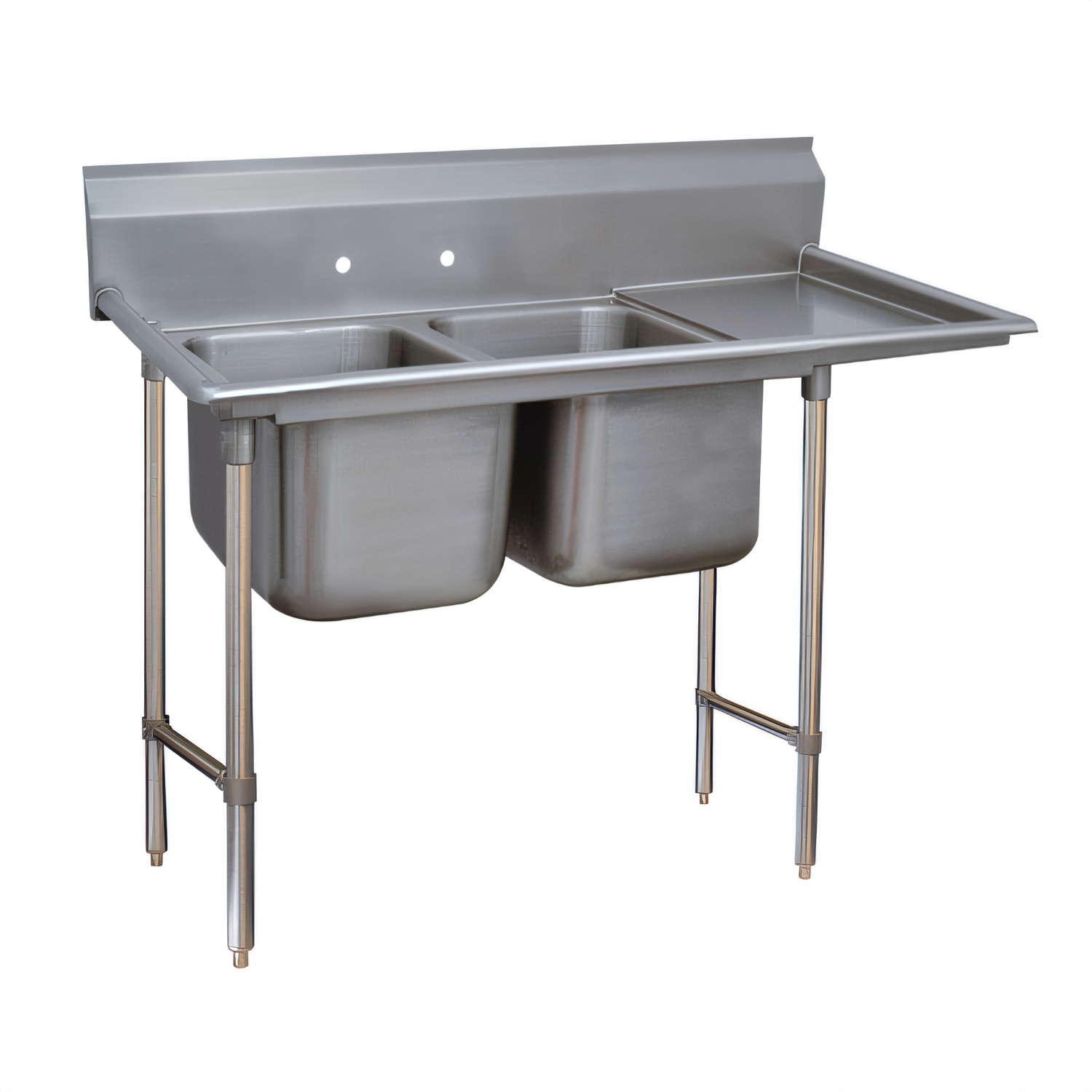

Advance Tabco Regaline 2-Compartment Sink
with 36" Right-Hand Drainboard

Model 9-82-40-36R • NSF Listed • 18 ga 304 Stainless Steel

Built for everyday, high-volume warewashing, the Regaline 9-Series delivers dependable performance in a lighter-weight, budget-friendly package. TIG-welded seams, generous 3" bowl radii, and a one-piece deep-drawn design make cleaning fast and keep health inspectors happy.

Why you’ll love it

  • Two spacious 20" W × 28" F/B × 12" D compartments handle full-size sheet pans with ease.
  • Right-hand 36" drainboard is pitched toward the bowls to keep water off your floors.
  • 18 ga type 304 stainless steel resists rust and harsh detergents.
  • 8" high backsplash with tile edge speeds installation and helps protect walls.
  • Open stainless frame with side crossrails + two extra drainboard legs for rock-solid stability.
  • 1 ⅝" tubular legs with 1" adjustable bullet feet level the sink on uneven floors.
  • (2) 1 ½" IPS stainless basket drains included—no extra trip to the hardware store.
  • Pre-punched 8"-on-center faucet holes accept most commercial wall-mount faucets.

At-a-glance specifications

Overall dimensions 85" L (left-to-right) × 36" F/B (front-to-back)
Number of compartments 2
Bowl size (each) 20" W × 28" F/B × 12" D
Drainboard 36" Right-hand, integral with bowls
Backsplash height 8"
Material & gauge 18 ga type 304 stainless steel (sink, drainboard & frame)
Construction TIG-welded, satin-blended finish
Legs / bracing 1 ⅝" Ø stainless legs, adjustable side crossrails, 2 extra legs under drainboard
Feet 1" stainless bullet feet, height adjustable
Drain fittings (2) 1 ½" IPS basket drains (center-mounted)
Faucet mounting (2) 1 ⅛" dia. holes on 8" centers (faucet not included)
Certifications NSF ®, ANSI 2

Perfect for

  • Restaurants & ghost kitchens needing economical, NSF-approved warewashing.
  • Bakeries and cafés washing full-size pans and mixing bowls.
  • Catering commissaries seeking a lighter sink that still meets code.
Heads up: Wall-mount faucet, P-trap, and supply lines are shown for reference only and are sold separately. Always verify local plumbing codes prior to installation.

Need custom modifications or accessories? Ask about Advance Tabco Smart Fabrication ™. Lead times as quick as 10 days on most requests.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

85.0in

Depth

36.0in

Shipping Weight

207.0lbs

Splash Height

8"

Base Construction

stainless steel

Compartment (front - back)

28"

Base Type

legs with side crossrails

Compartment Width (side - side)

20"

Overall Length

73" - 90"

Drainboards

with right-hand drainboard

Top Gauge

18 gauge

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Specifications

Regaline Sink, 2-compartment, with right-hand drainboard, 28" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboard, 1" adjustable bullet feet,18 gauge 304 stainless steel, overall 36" F/B x 85" L/R, NSF
