Advance Tabco  |  Regaline  |  SKU: 9-82-40-24RL  |  UPC: 747545106865

Advance Tabco 9-82-40-24RL Regaline Compartment Sinks

$4,584.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

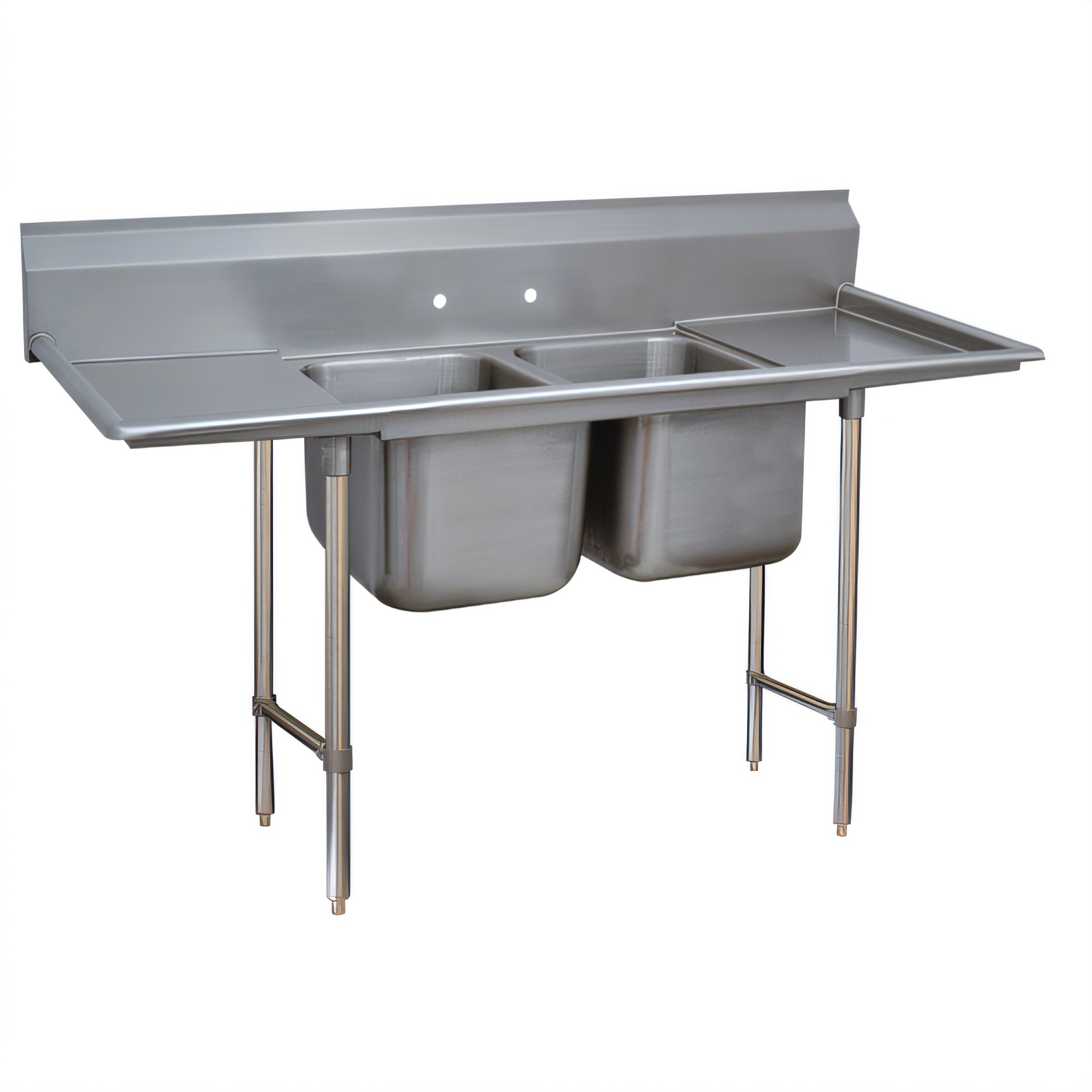

Advance Tabco Regaline Two-Compartment Sink with Dual 24" Drainboards

Model 9-82-40-24RL  |  18 ga Type 304 Stainless Steel  |  NSF Listed

Tackle heavy-duty ware-washing, prep, and pot-scrubbing in one station. This Regaline 93" sink features seamless deep-drawn bowls, generous drainboards on both sides, and a rock-solid open frame base—everything you need for an efficient clean-to-dirty workflow.

Highlights

  • Two 20" W x 28" F/B x 12" D compartments handle full-size sheet pans and stock pots.
  • 24" drainboards (left & right) speed up loading and air-drying.
  • 8" high backsplash with tile edge creates a sanitary, watertight wall seal.
  • All TIG-welded construction; welds are blended to a satin finish for a polished, easy-to-clean surface.
  • Large 3" radius interior corners eliminate hard-to-reach crevices.
  • Heavy-duty 1 5/8" Ø tubular legs with adjustable side cross-bracing stabilize the sink without blocking storage space.
  • 1" stainless steel bullet feet level the unit on uneven floors.

Technical Specifications

Compartments 2
Bowl Interior (W × F/B × Depth) 20" × 28" × 12"
Overall Dimensions (L × F/B) 93" × 36"
Drainboard Length 24" each (left & right)
Backsplash Height 8"
Material / Gauge 18 gauge type 304 stainless steel
Legs & Bracing (4) 1 5/8" Ø S/S legs with adjustable side cross-rails
Feet 1" stainless steel adjustable bullet feet
Drain Outlets (2) 1-1/2" IPS S/S basket drains (included)
Faucet Holes 8" on-center (faucets sold separately)
Shipping Weight Approx. 228 lb
Certifications NSF

Built for the Long Haul

  • “Yes! It’s SeaMless!” deep-drawn bowls minimize weld seams for superior sanitation.
  • Satin-finished 304 stainless steel resists corrosion from food acids, detergents, and high-chlorine environments.
  • Tile-edge backsplash speeds up installation and helps maintain a leak-free joint.
  • Open frame design leaves ample under-sink clearance for disposers, chemical racks, or mop buckets.

Installation requires 1/2" IPS hot & cold water feeds and a 1-1/2" waste line. Faucets and additional accessories are available—ask us for compatible Advance Tabco options.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

93.0in

Depth

36.0in

Shipping Weight

228.0lbs

Drainboards

with left & right-hand drainboards

Base Construction

stainless steel

Overall Length

91" - 135"

Base Type

legs with side crossrails

Splash Height

8"

Compartment Width (side - side)

20"

Compartment (front - back)

28"

Sink Depth (rim - drain)

12"

Top Gauge

18 gauge

Top Stainless Series

300 series

Specifications

Regaline Sink, 2-compartment, with left & right-hand drainboards, 28" front-to-back x 20"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboards, 1" adjustable feet, 18 gauge 304 stainless steel, overall 36" F/B x 93" L/R, NSF
