Advance Tabco 9-82-40-18L Regaline Compartment Sinks
Description

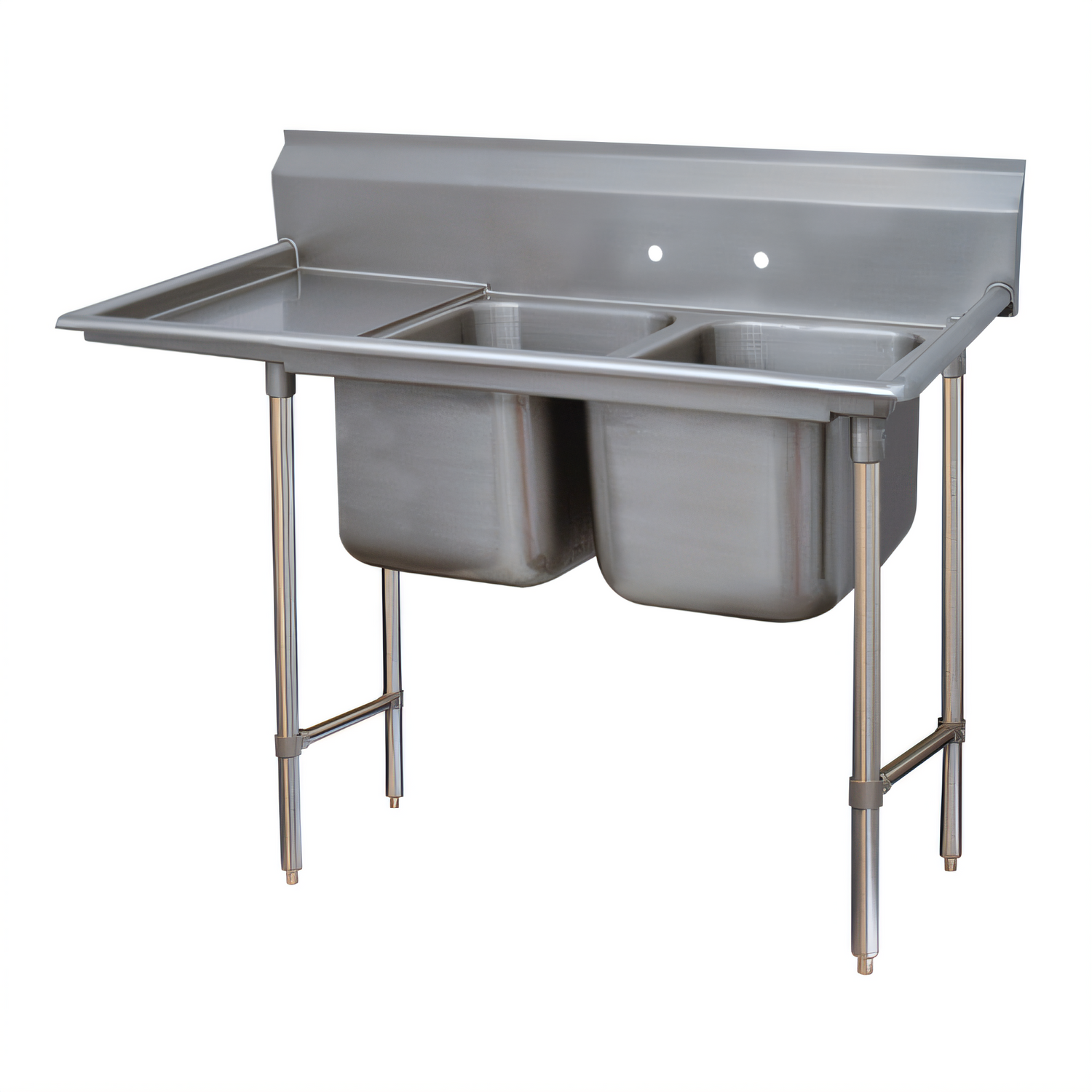

Regaline 2-Compartment Sink with 18" Left Drainboard
Advance Tabco Model 9-82-40-18L | NSF ListedBuilt for busy commercial kitchens, the Advance Tabco Regaline series combines rugged construction with thoughtful design. This 67" long, 18 gauge, 304 stainless steel sink features two oversized 20" W × 28" F/B × 12" D bowls and an integrated left-hand drainboard that speeds up prep, wash, and rinsing tasks while keeping your workspace sanitary and organized.
Why you’ll love it
- Premium 18 gauge, type 304 stainless steel resists corrosion & everyday abuse.
- Deep-drawn bowls with generous 3" radius corners for fast, easy clean-up.
- Seamless TIG-welded construction—no crevices for soil to hide.
- 8" high backsplash with tile edge simplifies wall installation and protects surrounding surfaces.
- Full-size 18" drainboard (left side) with embossed drain channels keeps dishes elevated and water flowing to the bowl.
- Sturdy open-frame base with 1 5/8" Ø stainless legs, side crossrails, and gussets for rock-solid stability.
- 1" adjustable stainless bullet feet level the unit on uneven floors.
- (2) 1 1/2" IPS stainless basket drains included; faucet holes punched on 8" centers (faucet sold separately).
At-a-glance specs
| Overall size | 67" L × 36" F/B × 42" H (to top of 8" backsplash) |
|---|---|
| Compartment bowls (2) | 20" W × 28" F/B × 12" D, 14" flood level |
| Drainboard | 18" L (left-hand) |
| Material / gauge | 304 stainless steel / 18 ga (bowls, top, backsplash & drainboard) |
| Backsplash height | 8" |
| Legs / bracing | 1 5/8" Ø stainless legs with adjustable side crossrails |
| Drain connection | (2) 1 1/2" IPS, centered |
| Faucet mounting | (2) holes on 8" centers, 1 1/8" Ø |
| Certifications | NSF |
| Shipping weight | Approx. 167 lb |
Installation & care
- Requires 1/2" hot & cold supplies and a 1 1/2" waste line (see spec sheet for rough-ins).
- Level the unit with the bullet feet before final plumbing connections.
- Clean daily with mild detergent; avoid harsh chlorides to preserve the stainless finish.
Need faucets, scrap baskets, or custom accessories? Chat with our team—most ships in 24 hrs.
