Advance Tabco 9-81-20-24L Regaline Compartment Sinks
Description

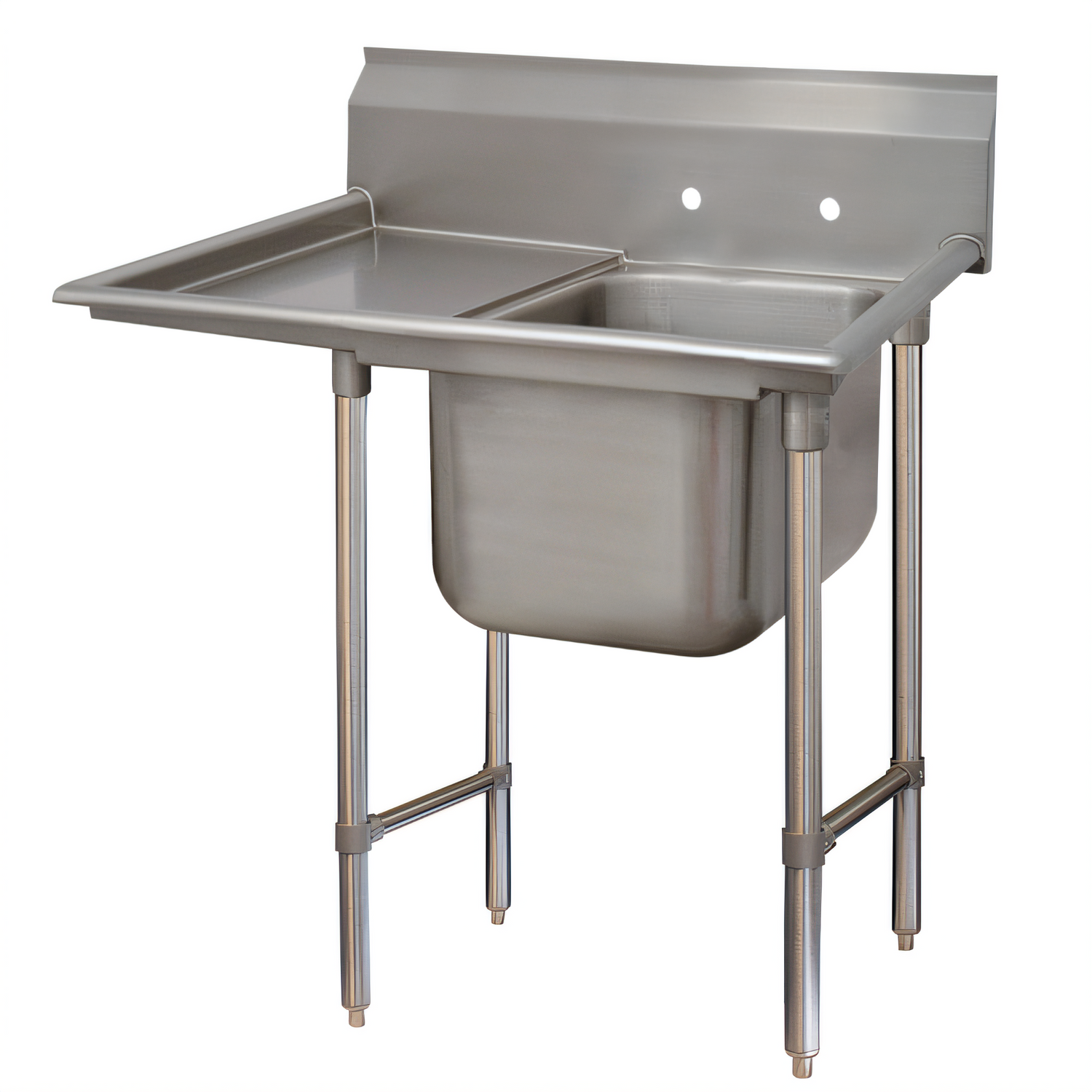

Advance Tabco “Regaline” 1-Compartment Sink
with 24" Left Drainboard
Super Saver 9 Series · NSF Listed · 18 ga 304 Stainless Steel
Engineered for daily, heavy-duty food-service use, the Regaline Super Saver sink pairs a spacious 28" × 20" bowl with a full-size, 24-inch left-hand drainboard—all in a compact 50-inch footprint. Its TIG-welded, 18-gauge 304 stainless construction, 8-inch backsplash and open tubular base are designed to handle constant pot- and pan-washing while meeting the latest NSF sanitation standards.
Key Benefits
- Deep-Drawn Bowl: 28" front-to-back × 20" wide × 12" deep with generous 3" radius corners for easy cleaning.
- Integrated 24" Drainboard: Left-hand drainboard slopes toward the bowl for efficient drying & water run-off.
- 18 ga Type 304 Stainless Steel: Resists corrosion, chemicals and everyday kitchen abuse.
- 8" High Backsplash: Helps contain splashes; tile-edge rear makes wall installation fast and sanitary.
- Open Frame Base: 1 5⁄8" Ø tubular legs with side cross-rails provide rock-solid support while keeping plumbing accessible.
- Adjustable Bullet Feet: 1" stainless feet level the sink on uneven floors.
- TIG-Welded & Satin-Finished: All welds are polished to match surrounding surfaces for a seamless look.
- Plumbing Ready: 8" on-center faucet holes & 1½" IPS basket drain included (faucet not included).
At-a-Glance Specifications
| Overall Dimensions | 36" front-to-back × 50" left-to-right |
|---|---|
| Bowl Interior (W × F/B × Depth) | 20" × 28" × 12" |
| Drainboard Size | 24" (left-hand) |
| Backsplash Height | 8" |
| Material Thickness | 18 ga Type 304 SS (Super Saver 9 Series) |
| Legs / Bracing | 1 5⁄8" Ø stainless legs with side cross-rails |
| Feet | 1" adjustable stainless bullet feet |
| Faucet Holes | 2 × 1⅛" dia on 8" centers (rear deck) |
| Drain | 1½" IPS stainless basket strainer (centered) |
| Certifications | NSF Standard 2 (Food Equipment) |
Installation & Plumbing Notes
- Connect hot & cold supply lines (½" IPS) to deck-mount faucet (sold separately).
- Waste outlet is 1½" IPS; P-trap or floor sink furnished by installer.
- Leg clearance beneath bowl: 24 ⅛" (front-to-rear 24 ⅛").
Need custom modifications? Advance Tabco Smart Fabrication™ can add additional drainboards, shelves, or accessories—contact us for a quote.
