Advance Tabco  |  Regaline  |  SKU: 9-81-20-18RL  |  UPC: 747545106674

Advance Tabco 9-81-20-18RL Regaline Compartment Sinks

$3,004.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

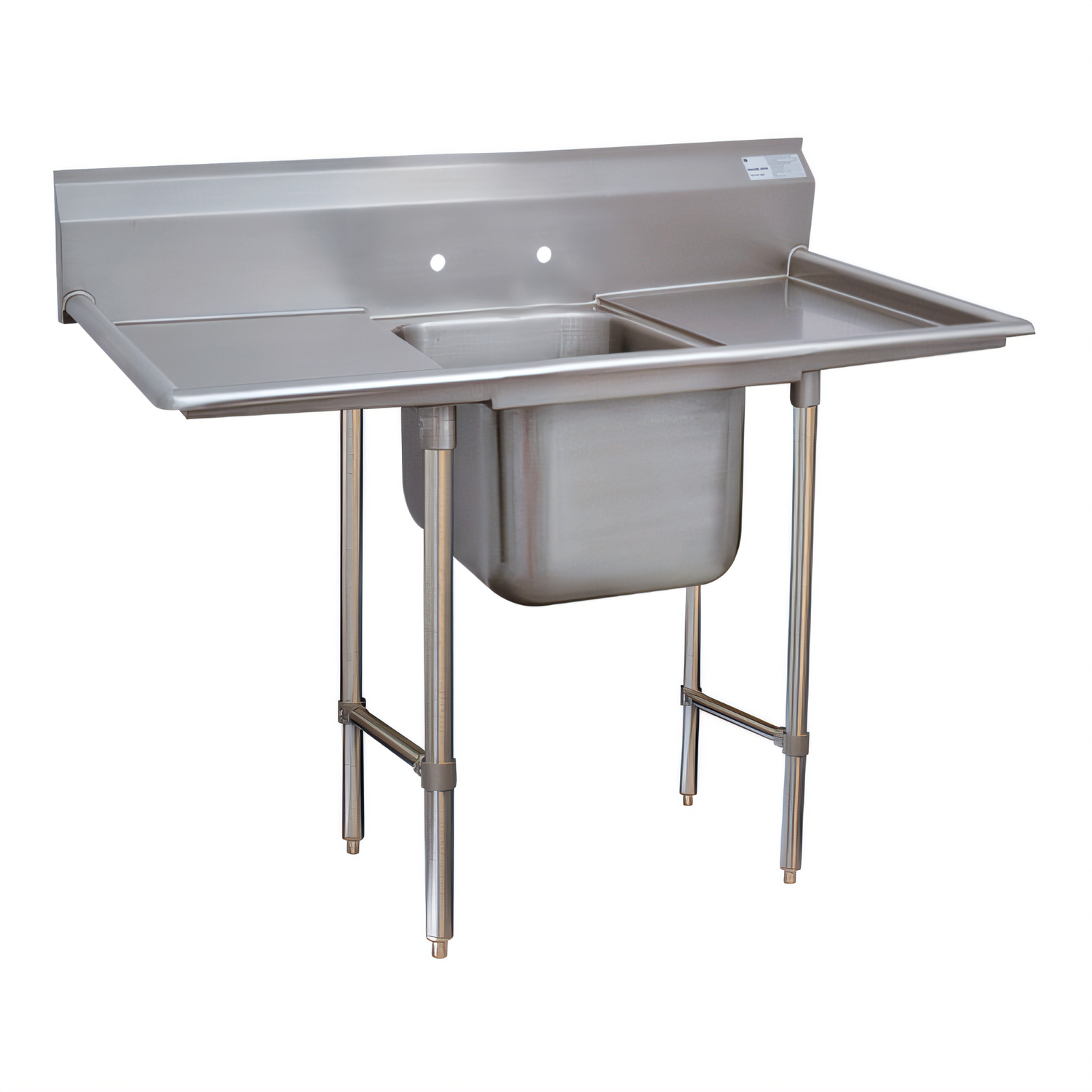

Advance Tabco “Regaline” 1-Compartment Sink with Dual 18" Drainboards

Super Saver 9 Series • Model 9-81-20-18RL

Built for busy prep and ware-washing areas, the Advance Tabco Regaline 9-81-20-18RL combines a spacious single bowl with 18" drainboards on both sides. 18-gauge type 304 stainless steel construction, sanitary TIG welds, and NSF certification make this sink a long-term performer in any commercial kitchen.

Key Features

  • Deep-drawn bowl: 28" front-to-back × 20" wide × 12" deep for large cookware and sheet pans
  • Integral 18" left & right drainboards with positive pitch for rapid water run-off
  • 8" high backsplash with tile edge for a water-tight wall seal
  • Pre-punched 8" on-center faucet holes (faucet sold separately)
  • 3" radius interior corners speed up cleaning and meet health-code requirements
  • 18-ga 304 stainless steel bowl, drainboards & splash resist corrosion and chemicals
  • Open frame base with 1 ⅝" Ø stainless steel legs and adjustable side cross-bracing
  • 1" stainless steel bullet feet level the unit on uneven floors
  • 1 ½" IPS basket drain included; accepts standard commercial P-traps
  • NSF listed for food-service sanitation

At-a-Glance Specs

Compartments 1
Bowl size (W × F/B × D) 20" × 28" × 12"
Drainboards 18" L (each side)
Overall dimensions 58" L × 36" F/B × 34" H to rolled rim
Backsplash height 8" (≈ 37" overall height)
Faucet centers 8" O.C.
Material thickness 18-ga type 304 stainless steel
Legs / bracing 1 ⅝" Ø tubular SS legs with adjustable side cross-rails
Feet 1" adjustable stainless steel bullet feet
Drain connection 1 ½" IPS basket drain (included)
Certifications NSF

Faucet, trap and supply lines are shown for reference and are not included with the sink. Need a different size or configuration? Ask us about Advance Tabco Smart Fabrication™ custom sinks.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

58.0in

Depth

36.0in

Shipping Weight

150.0lbs

Base Type

legs with side crossrails

Overall Length

54" - 62"

Splash Height

8"

Drainboards

with left & right-hand drainboards

Compartment Width (side - side)

20"

Base Construction

stainless steel

Compartment (front - back)

28"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Top Gauge

18 gauge

Specifications

Regaline Sink, 1-compartment, with left & right-hand drainboards, 28" front-to-back x 20"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboards, 18 gauge 304 stainless steel, 1" adjustable bullet feet, overall 36" F/B x 58" L/R, NSF
