Advance Tabco Regaline 4-Compartment Commercial Sink with Left-Hand Drainboard, 24 x 24 Inch Bowls, 36 Inch Drainboard

SKU: 9-44-96-36L
GTIN: 747545106216
$6,249.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Advance Tabco Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

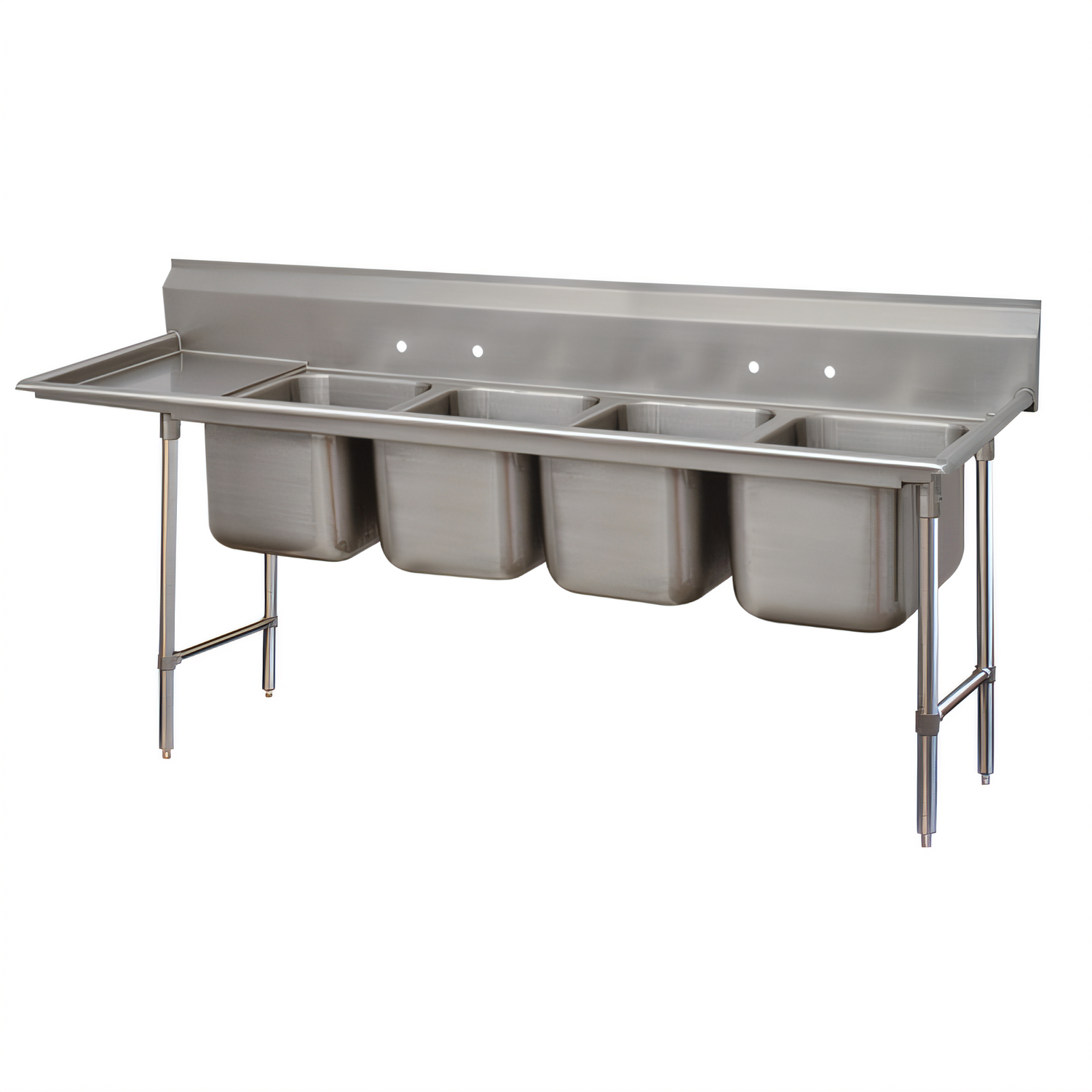

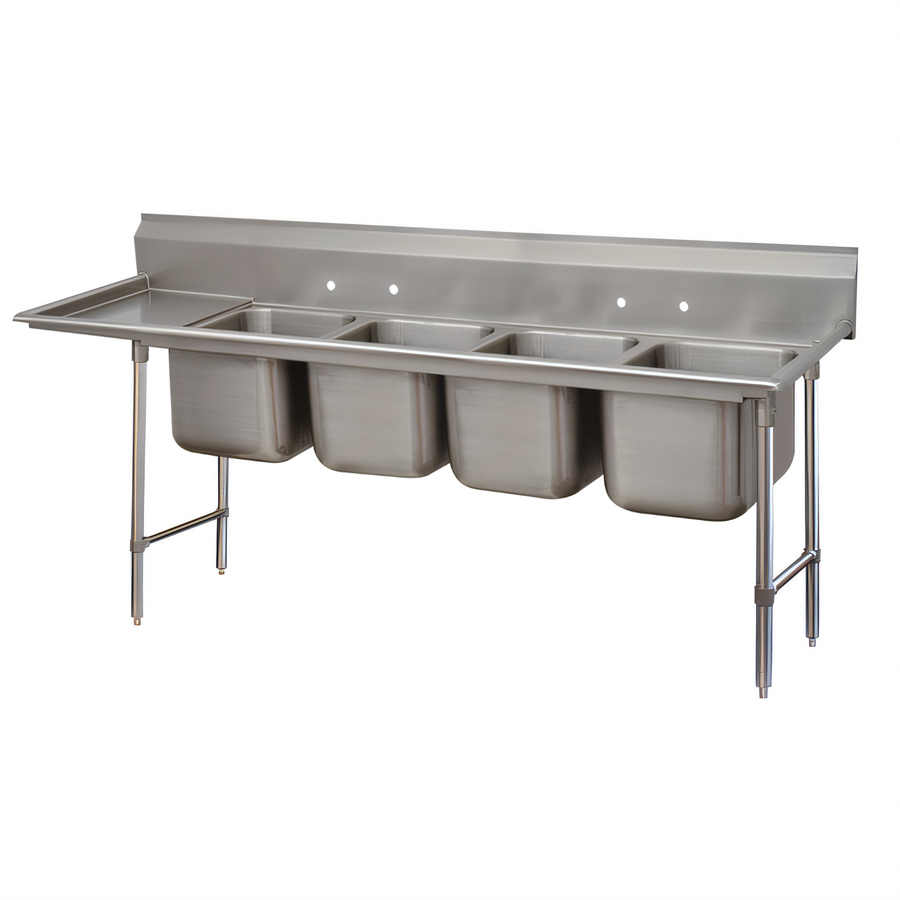

Advance Tabco Regaline 4-Compartment Commercial Sink with Left-Hand Drainboard, 24 x 24 Inch Bowls, 36 Inch Drainboard

18 Gauge 304 Stainless Steel, 8 Inch Backsplash, Stainless Steel Open Frame Base

Built for high-volume warewashing, this Regaline sink combines four oversized bowls, a left-hand drainboard, and durable 304 stainless steel construction in one hardworking station.

  • Four 24 x 24 inch compartments provide plenty of room for washing, soaking, rinsing, and prep.
  • Left-hand 36 inch drainboard creates a roomy landing area for clean or dirty ware.
  • 18 gauge Type 304 stainless steel construction is built for demanding commercial use.
  • 8 inch backsplash helps protect walls from splashes and mess.
  • Stainless steel open frame base with side crossrails adds stability and support.
  • 1 inch adjustable bullet feet help level the sink on uneven floors.
  • Basket-type waste drains are included; faucets are sold separately and two faucets are required.

Overall Dimensions:

146.0"W x 32.0"D x 42.0"H

Product Weight:

440.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Four Compartment Layout

Four 24 x 24 inch sink bowls support multi-step warewashing and prep tasks.

Left-Hand Drainboard

36 inch drainboard is positioned on the left side for staging and draining.

18 Gauge 304 Stainless Steel

Durable Super Saver construction offers corrosion resistance and commercial-grade strength.

8 Inch High Splash

Helps contain water and protect the wall behind the sink.

Open Frame Base With Side Crossrails

Stainless steel frame design adds rigidity and long-term support.

Adjustable Bullet Feet

1 inch adjustable feet make it easier to level the sink on uneven floors.

Included Basket-Type Waste Drains

1 1/2 inch IPS stainless steel basket-type waste drains are included in the bowls.

Two-Faucet Setup

Faucets are not included; the sink requires two faucets and faucet holes are spaced on 8 inch centers.

Drainboard Support

36 inch drainboards are supplied with additional legs for support.

Type 4-Compartment Sink
Style Left-Hand Drainboard
Installation Type Floor Model
Material 304 Stainless Steel
Top Gauge 18 Gauge
Compartments 4
Compartment Width 24 Inches
Compartment Depth 24 Inches
Splash Height 8 Inches
Base Type Legs With Side Crossrails
Drainboard Size 36 Inches
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1 1/2 Inch IPS
Selling Unit Each
Units Per Case 1
Shipping Width 145 Inches
Shipping Depth 32 Inches
Shipping Height 42 Inches
Shipping Weight 440 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Plumbing PDF Download

Frequently Asked Questions

It has four sink compartments.
Each compartment measures 24 inches front-to-back by 24 inches wide and is 12 inches deep.
This model has a left-hand drainboard.
No. Faucets are not included, and the sink requires two faucets with faucet holes on 8 inch centers.
Yes. 1 1/2 inch IPS stainless steel basket-type waste drains are included.
Yes. Regalines with 36 inch drainboards are supplied with additional legs for support.
