Advance Tabco 9-44-96-24RL Regaline Compartment Sinks
Description

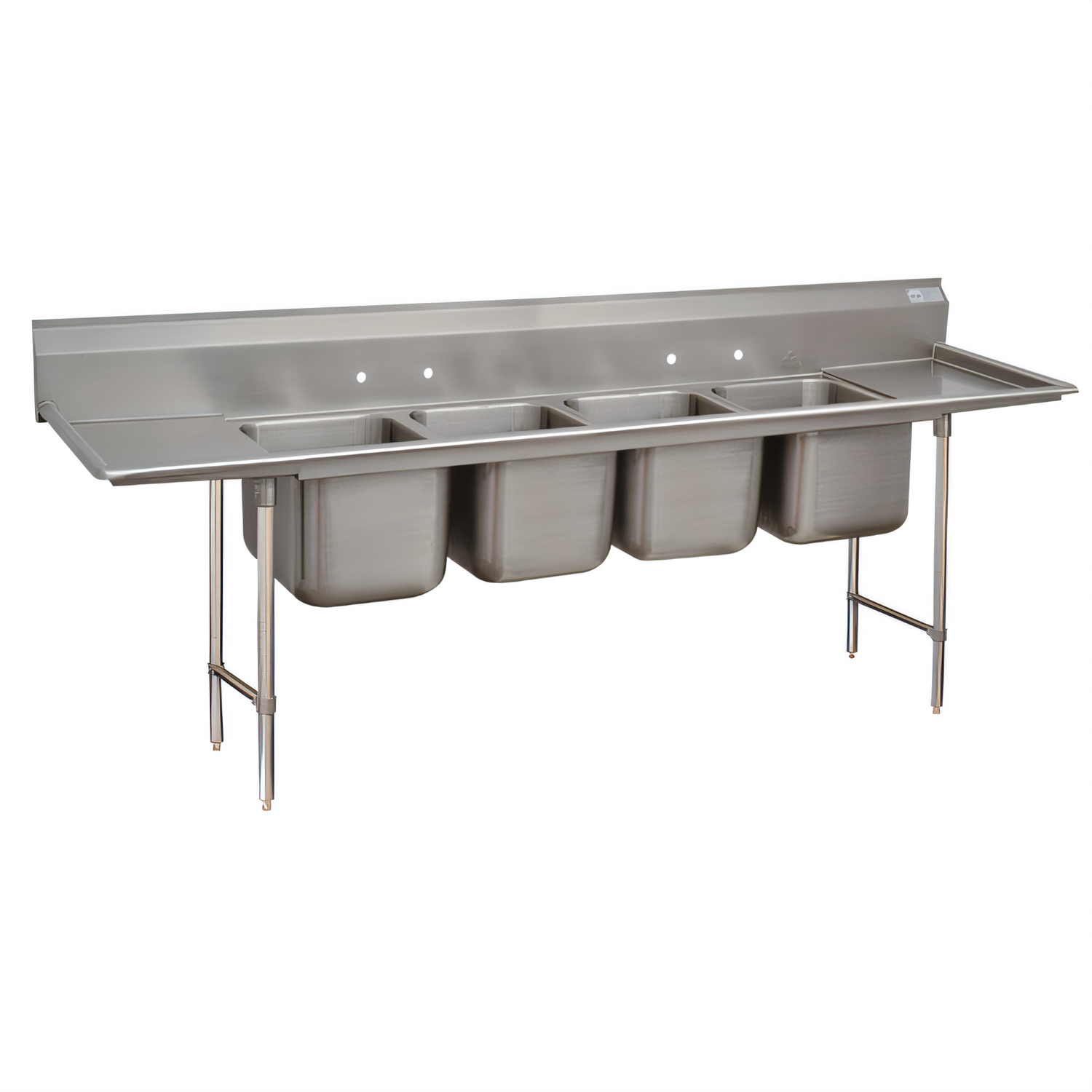

Advance Tabco Regaline 4-Compartment Sink
with 24" L/R Drainboards
Super Saver 9 Series • Model 9-44-96-24RL
Designed for demanding food-service kitchens, the Regaline 9 Series combines robust 18-gauge 304 stainless steel with seamless TIG-welded construction. Four spacious 24" × 24" × 12" bowls and full-size drainboards on both ends give you the capacity and workflow efficiency you need for high-volume warewashing, prep or pot-scrubbing stations—all in one NSF-listed unit.
Why You’ll Love It
- 4 deep-drawn bowls with large 3" radius corners for fast clean-up.
- Dual 24" drainboards with integral splash for easy staging and drying.
- 8" high backsplash with tile-edge return keeps water on the deck, not the wall.
- Open tubular base with adjustable side cross-bracing maximizes undersink clearance.
- 1 ⅝" O.D. stainless legs, welded gussets & 1" adjustable bullet feet provide rock-solid stability on uneven floors.
- TIG-welded seams blended to a uniform satin finish—no crevices, no leaks.
- All (4) 1 ½" IPS stainless basket drains included.
- NSF certified for safe, sanitary operation.
At-a-Glance Specs
| Overall dimensions | 154" W × 32" D × 44" H (to top of backsplash) |
|---|---|
| Compartment qty / size | 4 bowls, each 24" F/B × 24" W × 12" D |
| Drainboards | 24" left & 24" right (pitched for positive drainage) |
| Backsplash height | 8" with 2" tile-edge return |
| Material & gauge | Type 304 stainless steel, 18 ga (Super Saver) |
| Legs / base | 1 ⅝" O.D. tubular S/S legs, side cross-bracing, 1" S/S bullet feet |
| Drain fittings | (4) 1 ½" IPS S/S basket drains (centered) |
| Faucet holes | Two sets, 8" on-center (requires 2 faucets—sold separately) |
| Approx. shipping weight | 348 lb |
| Certifications | NSF |
Ideal Applications
- High-volume warewashing lines
- Pot & pan sanitation stations
- Produce or protein wash & prep areas
- Commissaries, ghost kitchens & catering facilities
Need custom modifications, cutting boards or sink covers? Ask about Advance Tabco Smart Fabrication™ options.
