Advance Tabco 9-44-96-24L Regaline Compartment Sinks
Description
Advance Tabco “Regaline” 4-Compartment Sink w/ 24" Left-Hand Drainboard
9 Series • 18 ga Type 304 Stainless Steel • NSF ListedBuilt for the busiest pot-washing and prep stations, the Advance Tabco Regaline 4-compartment sink delivers rugged performance in a space-saving, 32" front-to-back footprint. Four generous 24" × 24" × 12" deep bowls handle sheet pans, stock pots and bulk produce, while the 24" left-hand drainboard keeps workflow moving. Fully TIG-welded 18 gauge type 304 stainless steel and an open tubular base with adjustable side crossrails give you rock-solid durability without the extra weight—or the extra cost.
Key Benefits
- Four oversize bowls – 24" W × 24" F/B × 12" D each; large 3" bowl radius for easy cleaning.
- Integrated 24" drainboard (left) – One-piece drawn surface slopes for fast drainage.
- 8" backsplash with tile-edge mounting – Protects walls and simplifies installation.
- Open frame base – 1 ⅝" Ø tubular legs with side cross-bracing for maximum legroom and mop access.
- 1" adjustable stainless bullet feet – Level the sink on uneven floors in seconds.
- NSF certified – Meets food-service sanitation standards right out of the box.
- TIG-welded stainless construction – 18 ga type 304 bowls & top blended to a satin finish.
At-a-Glance Specs
| Overall Dimensions | 32" F/B × 134" L/R |
|---|---|
| Bowl Interior (each) | 24" W × 24" F/B × 12" D |
| Number of Compartments | 4 |
| Drainboard | 24" L (left-hand), integrally formed |
| Backsplash Height | 8" |
| Material / Gauge | 18 ga type 304 stainless steel |
| Legs & Bracing | 1 ⅝" Ø stainless legs, adjustable side crossrails |
| Feet | 1" stainless bullet feet, height adjustable |
| Faucet Holes | 2 sets, 8" on-center (faucets sold separately) |
| Drain Fittings | 4 × 1 ½" IPS stainless basket drains included |
| Certifications | NSF |
Installation & Plumbing
- Requires two wall or deck-mount faucets with 8" centers.
- 1 ½" IPS waste outlets are centered in each bowl.
- Supply lines: ½" IPS hot & cold.
- Refer to Advance Tabco plumbing rough-in drawings for exact stub-out locations.

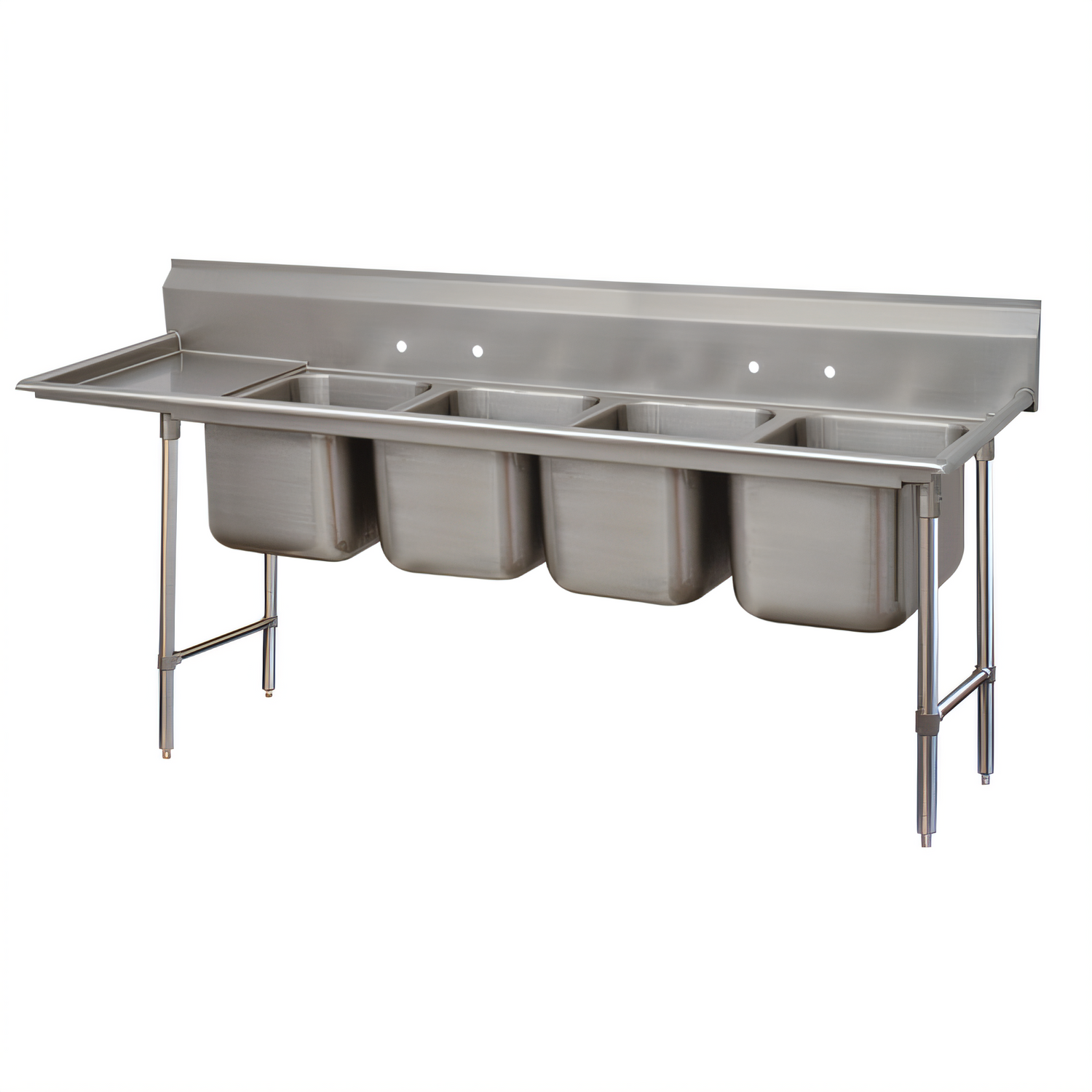

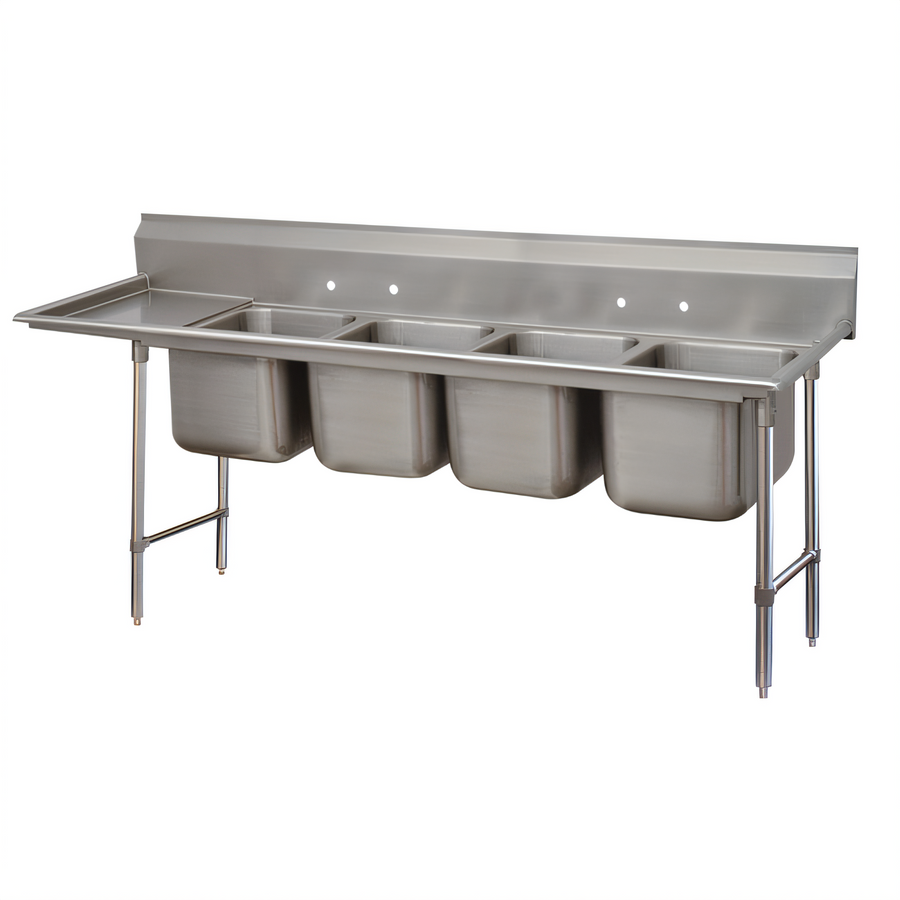

Model shown: 9-44-96-24L (left-hand drainboard). Suitable for high-volume kitchens, commissaries, schools, and institutional foodservice.
