Advance Tabco 9-42-48-24R Regaline Compartment Sinks
Description

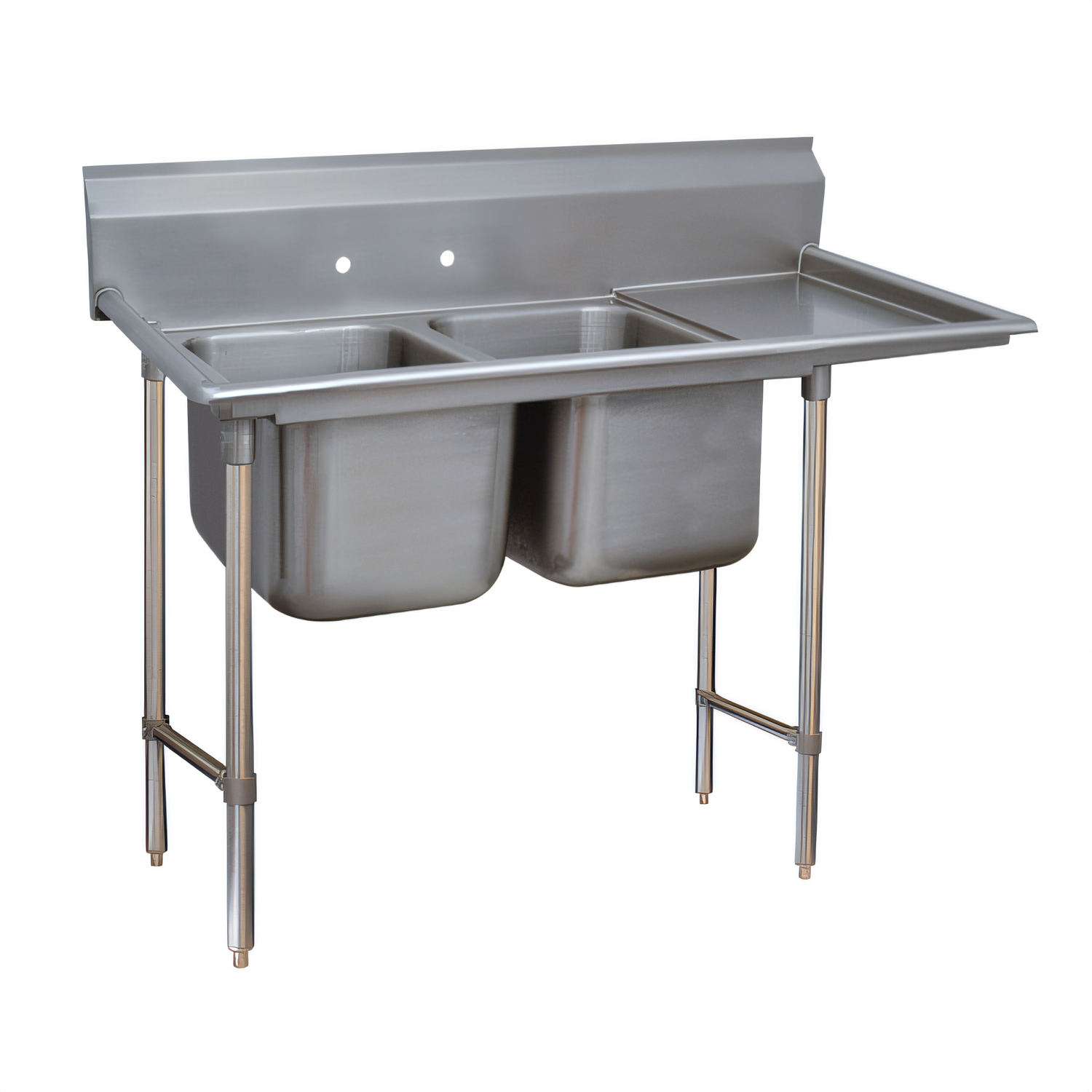

Advance Tabco “Regaline” 2-Compartment Sink w/ 24" Right-Hand Drainboard
Super Saver 9-Series • 18 ga 304 Stainless Steel • NSF ListedBuilt for dependable back-of-house performance, the Advance Tabco Regaline 9-Series delivers rock-solid durability in an easy-to-install, open-base design. Two generous 24" × 24" bowls handle high-volume warewashing, while the integrated 24" drainboard keeps clean or soiled items organized and moving. All TIG-welded seams are blended to a smooth satin finish—just what you expect from the “Yes! It’s SeaMless!” line.
Why you’ll love it
- 18 gauge type 304 stainless steel resists corrosion and daily abuse.
- Two 24" × 24" × 12" deep sink bowls with large 3" inside corner radius for fast, thorough cleaning.
- 24" right-hand drainboard with formed splash funnels water back to the bowl.
- 8" high backsplash with tile-edge for a flush, sanitary wall installation.
- 1 5/8" O.D. tubular stainless steel legs with adjustable side cross-rails for unmatched rigidity.
- 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- Factory-punched 8" on-center faucet holes (faucet not included) simplify plumbing.
- Includes (2) 1-1/2" IPS stainless steel basket drains.
- NSF listed for absolute food-service compliance.
Technical specifications
| Model | 9-42-48-24R (right drainboard) |
|---|---|
| Compartments | (2) – 24" W × 24" F/B × 12" D |
| Drainboard | 24" L (right side) with splash |
| Overall Dimensions | 81" L (left-to-right) × 32" D (front-to-back) |
| Backsplash Height | 8" |
| Material & Finish | 18 ga type 304 stainless steel, satin finish |
| Legs / Bracing | 1 5/8" Ø S/S tubing, side cross-rails, open front |
| Feet | 1" S/S bullet feet, height-adjustable |
| Faucet Holes | (2) holes on 8" centers (1-1/8" Ø) |
| Drain Opening | 1-1/2" IPS, center of each bowl |
| Shipping Weight | ≈ 172 lb |
| Certifications | NSF |
Recommended applications
- Food-service kitchens seeking a cost-conscious, all-stainless warewashing station
- Utility, produce, or pot-washing areas that require large bowl capacity
- Any operation needing an NSF-listed, wall-mounted sink solution with integrated drainboard
Need custom modifications? Ask about Advance Tabco’s Smart Fabrication™ options.
