Advance Tabco  |  Regaline  |  SKU: 9-4-72-36RL  |  UPC: 747545105950

Advance Tabco 9-4-72-36RL Regaline Compartment Sinks

$4,695.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

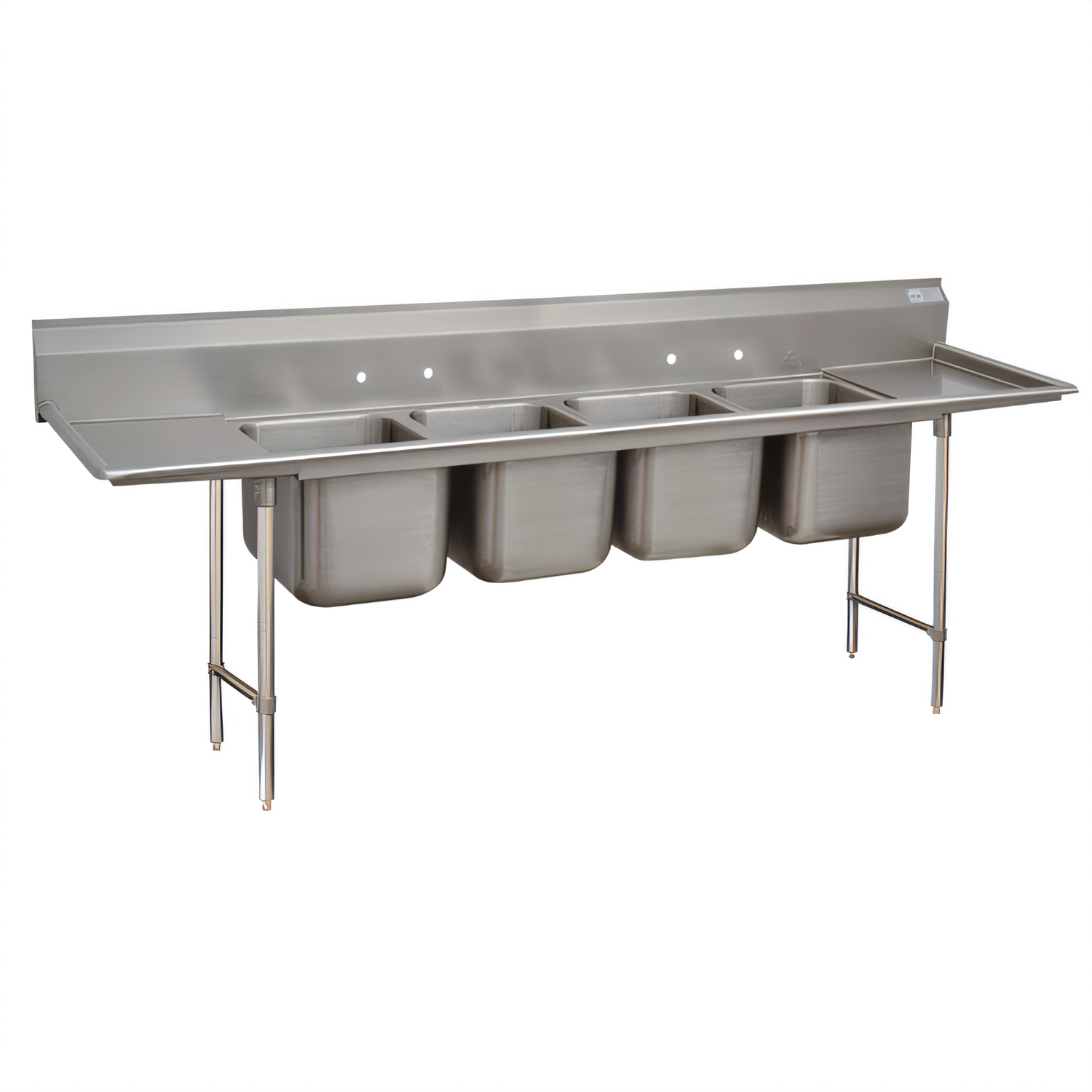

Advance Tabco Regaline 4-Compartment Sink w/ 36" Dual Drainboards

18 ga Type 304 Stainless Steel | Model 9-4-72-36RL | NSF Listed

Built for the rigors of high-volume foodservice, the Advance Tabco Regaline four-compartment sink delivers a seamless workflow from wash to air-dry. Extra-long drainboards on both sides, an open frame base, and TIG-welded 304 stainless construction make it the go-to solution for dish rooms, prep areas, and commissary kitchens that demand durability and efficiency.

Key Features

  • (4) sink bowls – 20" front-to-back x 16" wide x 12" deep.
  • (2) 36" drainboards (left & right) with integral splash containment.
  • 18 ga type 304 stainless steel top, bowls & drainboards for superior corrosion resistance.
  • Open frame base with 1 5/8" Ø stainless steel legs, gussets, and side cross-rails.
  • Additional support legs under each 36" drainboard prevent sagging when fully loaded.
  • 8" high backsplash with sanitary tile-edge for quick, watertight installation.
  • All TIG-welded; welds are ground & polished to a uniform satin finish.
  • Generous 3" radius interior corners speed up cleaning and reduce bacteria traps.
  • (4) 1-1/2" IPS basket drains included.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.
  • NSF certified for food-contact safety.

Specifications

Overall dimensions 146" L x 28" F/B x 43" H (to top of backsplash)
Compartment size 20" F/B x 16" W x 12" D (each, 4 total)
Drainboards 36" L – left & right
Backsplash height 8"
Material / gauge 18 ga type 304 stainless steel
Base construction Stainless open frame with side cross-bracing & gussets
Drains (4) 1-1/2" IPS basket drains (centered)
Faucet holes (2) sets on 8" centers – requires 2 faucets (not included)
Adjustability 1" bullet feet
Approx. ship weight 274 lb
Certifications NSF

Perfect For

  • School & corporate cafeterias
  • Catering commissaries and ghost kitchens
  • Brewery & bar glass-washing stations
  • High-volume restaurant dish pits
Installation note: Faucet sets and plumbing traps are sold separately. Unit ships with two additional support legs for each 36" drainboard.

Looking for compatible faucets, scrap blocks, or cutting boards? Contact us for a quick quote.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

146.0in

Depth

28.0in

Shipping Weight

274.0lbs

Overall Length

130" - 198"

Compartment (front - back)

20"

Compartment Width (side - side)

16"

Base Type

legs with side crossrails

Sink Depth (rim - drain)

12"

Drainboards

with left & right-hand drainboards

Splash Height

8"

Top Gauge

18 gauge

Top Stainless Series

300 series

Base Construction

stainless steel

Specifications

Regaline Sink, 4-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboards, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 28" F/B x 146" L/R, NSF (requires 2 faucets)
