Advance Tabco 9-4-72-36L Regaline Compartment Sinks
Description

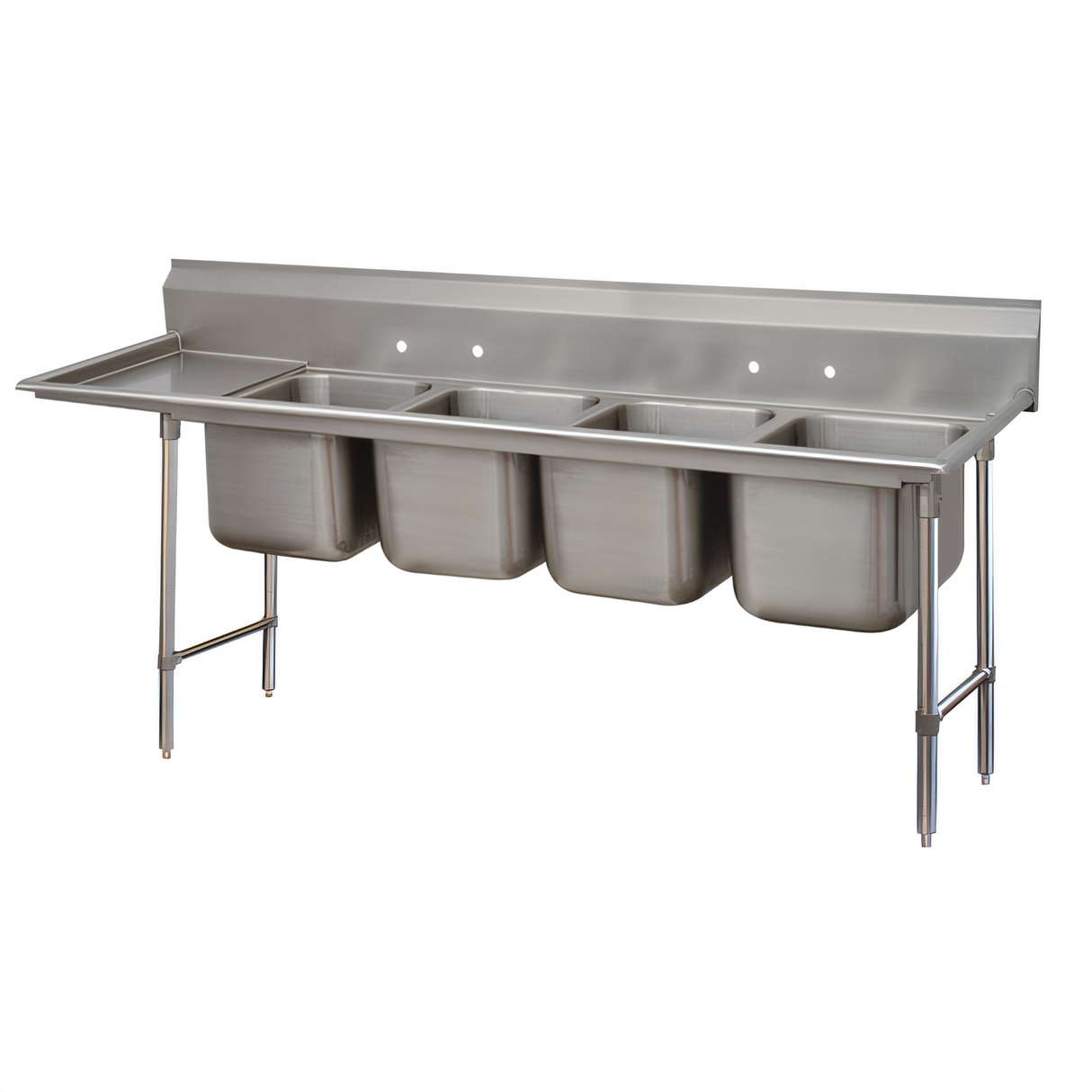

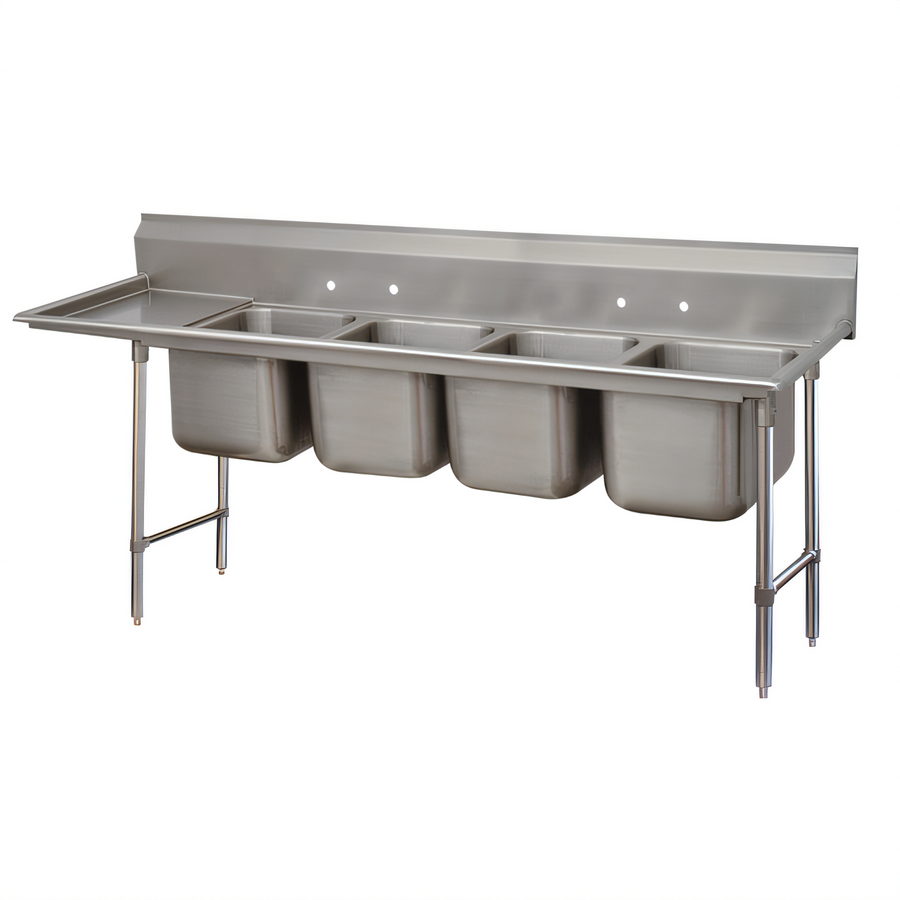

Advance Tabco “Regaline” 4-Compartment Sink w/ 36" Left Drainboard
Model 9-4-72-36L | 18 ga 304 Stainless Steel | NSFBuilt for heavy, everyday use in commercial kitchens, the Advance Tabco Regaline Series combines rugged 18-gauge type 304 stainless construction with thoughtful, operator-friendly details. This four-compartment sink features a generous 36 inch left-hand drainboard and deep drawn bowls that make quick work of prep, wash, rinse and sanitize tasks while keeping workflow moving smoothly down the line.
Key Features
- Four (4) sink bowls – 20" front-to-back × 16" wide × 12" deep
- Integrated 36" drainboard (left side) with positive drain pitch
- 8" high backsplash with tiled edge for easy, sanitary installation
- 18-gauge type 304 stainless steel top, bowls & drainboard – resists corrosion and chemicals
- All TIG-welded seams, blended to a smooth satin finish
- Large 3" radius bowl corners for fast, thorough clean-up
- Open tubular frame base with 1 5⁄8" Ø stainless legs
- Adjustable side cross-rails & stainless steel gussets for rock-solid stability
- 1" stainless bullet feet – field adjustable for a level install
- NSF listed for food-service sanitation
At-a-Glance Specifications
| Overall dimensions | 114" L × 28" F/B × 43" H (to top of backsplash) |
|---|---|
| Compartment size (4) | 20" F/B × 16" W × 12" D |
| Drainboard | 36" L (left side) |
| Backsplash height | 8" |
| Drain outlets | 1 1⁄2" IPS stainless basket strainers (included) |
| Faucet holes | Two sets on 8" centers (faucets sold separately) |
| Material & finish | 18 ga type 304 stainless, satin finish |
| Legs / bracing | 1 5⁄8" Ø stainless legs, adjustable side cross-bracing |
| Feet | 1" adjustable stainless bullet feet |
| Compliance | NSF & ANSI/ASTM standards |
Why Choose the Regaline 9 Series?
- 18-gauge build keeps weight down without sacrificing everyday durability.
- Open frame base offers maximum leg room and easy access for plumbing connections.
- Pre-engineered to accept optional Poly-Vance cutting boards and sink covers—create extra work surface in seconds.
Need a different drainboard orientation, bowl size, or accessories? Contact our team for fast, factory-approved modifications.
