Advance Tabco 9-4-72-18R Regaline Compartment Sinks
$4,211.00
Unit price
/
Unavailable
Description

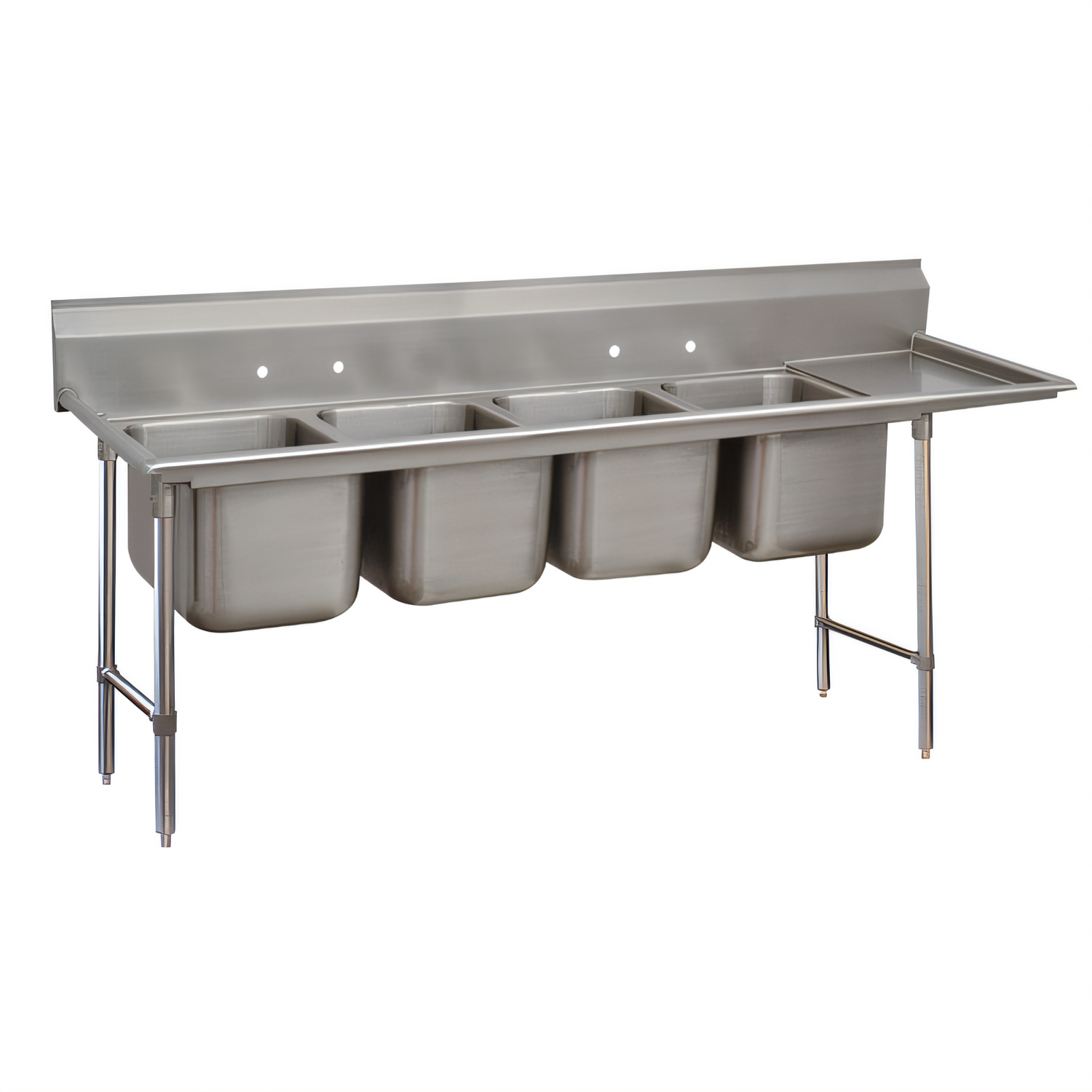

Advance Tabco Regaline 9-4-72-18R
4-Compartment Sink with Right-Hand 18" Drainboard
Built for the everyday demands of busy commercial kitchens, this NSF-listed Regaline sink delivers four roomy wash bays, a space-saving right drainboard, and rock-solid 18 ga. 304 stainless steel construction—all in a compact 96" footprint.
Key Benefits
- Four seamless 16" W x 20" F/B x 12" D bowls with generous 3" corner radius for fast cleanup.
- Integrated 18" right-hand drainboard slopes toward the bowl to keep counters dry.
- 8" backsplash with 1" tile edge contains splashes and mounts tight to the wall.
- Open tubular base with stainless side cross-rails maximizes under-sink access and strength.
- 1 ⅝" O.D. legs with 1" adjustable bullet feet level the unit on uneven floors.
- All TIG-welded joints blended to a satin finish for a sleek, sanitary workspace.
- Type 304 stainless steel—excellent corrosion resistance for dish & pot washing applications.
- NSF certified for safe food-contact use.
Specifications
| Model # | 9-4-72-18R |
|---|---|
| Series / Gauge | Regaline 9 Series – 18 ga. type 304 stainless steel |
| Compartments | 4 |
| Bowl Size (W × F/B × Depth) | 16" × 20" × 12" |
| Drainboard | 18" right-hand, integrally welded |
| Overall Dimensions | 96" L × 28" D × 34" H (work height) ≈ 45" H to top of backsplash |
| Backsplash | 8" high with tile edge |
| Faucet Holes | (2) sets on 8" centers • faucets required, not included |
| Drains | (4) 1 ½" IPS stainless basket drains (included) |
| Legs & Bracing | 1 ⅝" Ø tubular S/S legs • side cross-bracing • 1" adjustable bullet feet |
| Approx. Shipping Weight | 158 lb. |
| Certifications | NSF |
Ideal For
- Restaurant & bar dish stations
- Café or bakery pan washing
- Catering commissaries & ghost kitchens
- Food truck prep areas requiring NSF sinks
Important: This sink requires two deck-mount faucets and related plumbing components, which are sold separately.
Need custom modifications or accessories? Advance Tabco’s Smart Fabrication™ team can help—contact us for a quote.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
42.0in
Width
96.0in
Depth
28.0in
Shipping Weight
158.0lbs
Sink Depth (rim - drain)
12"
Base Type
legs with side crossrails
Drainboards
with right-hand drainboard
Compartment (front - back)
20"
Splash Height
8"
Base Construction
stainless steel
Compartment Width (side - side)
16"
Overall Length
75" - 97"
Top Gauge
18 gauge
Top Stainless Series
300 series
Specifications
Regaline Sink, 4-compartment, with right-hand drainboard, 20" front-to-back x 16"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable feet, 18 gauge 304 stainless steel, overall 28" F/B x 96" L/R NSF (requires 2 faucets)
