Advance Tabco 9-3-54-24R Regaline Compartment Sinks
Description

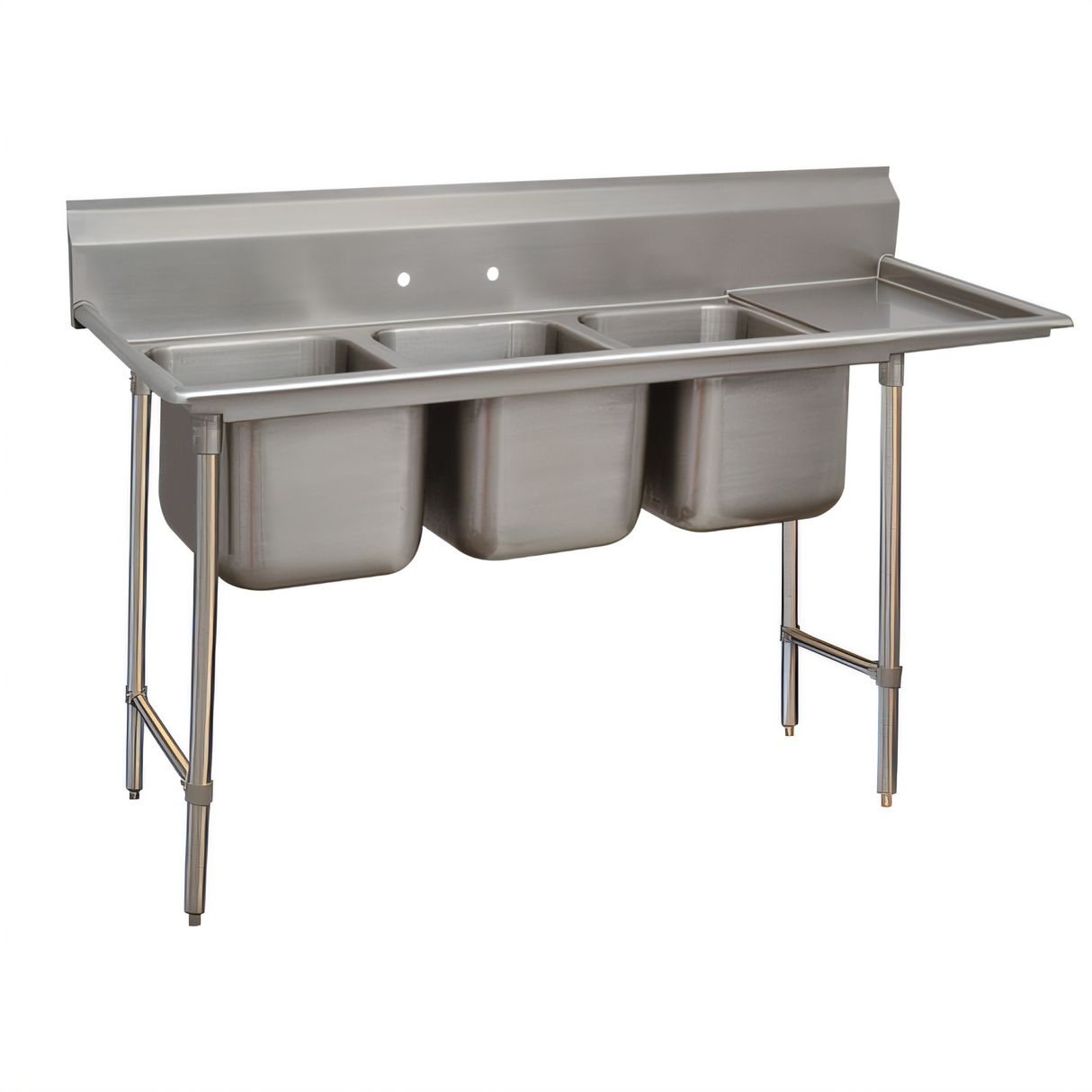

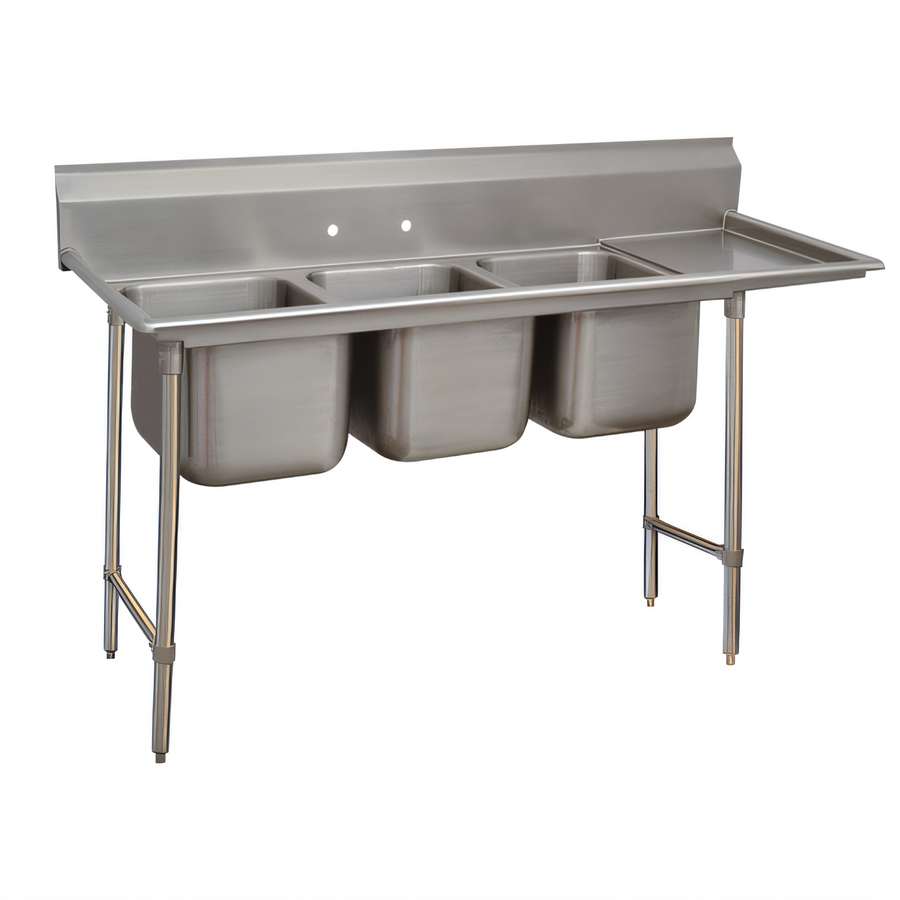

Advance Tabco “Regaline” 3-Compartment Sink w/ 24" Right-Hand Drainboard – 84" x 28"
Model 9-3-54-24R | NSF Listed 18 Ga 304 Stainless SteelBuilt to thrive in high-volume kitchens, this Regaline three-compartment sink pairs deep-drawn bowls with a full 24-inch right-hand drainboard, giving your warewashing team the space and strength they need—all in a compact 84-inch footprint.
Key Features
- Three seamless bowls, each 16" W x 20" F/B x 12" D with generous 3" radius corners for effortless cleaning.
- 24" right-side drainboard with integral splash speeds drying and staging.
- 8" high backsplash with tile edge for a sanitary, easy-to-seal installation.
- Heavy-duty 18 gauge type 304 stainless steel top & bowls resist corrosion and chemicals.
- Open-frame base with 1 5⁄8" Ø tubular stainless steel legs and side cross-rails for maximum rigidity.
- 1" adjustable stainless steel bullet feet simplify leveling on uneven floors.
- TIG-welded construction; welds blended to a smooth satin finish.
- Pre-punched 8" on-center faucet holes (faucets sold separately).
- (3) 1 ½" IPS basket drains included—no extra hardware required.
- NSF certified for food-service sanitation compliance.
Technical Specifications
| Overall Dimensions | 84" L x 28" D x 44" H (to top of backsplash) |
|---|---|
| Bowl Configuration | (3) bowls – 16" W x 20" F/B x 12" D |
| Drainboard | 24" Right-hand, integral splash |
| Backsplash | 8" H with 2" return & tile edge |
| Material / Gauge | 18 Ga type 304 stainless steel (top & bowls) |
| Frame / Legs | 1 5⁄8" Ø tubular stainless steel, side cross-bracing, stainless gussets |
| Feet | 1" adjustable stainless steel bullet feet |
| Faucet Holes | (2) holes on 8" centers (faucets not included) |
| Drains | (3) 1 ½" IPS basket-type drains (centered) |
| Shipping Weight | Approx. 177 lb |
| Certifications | NSF, Made in USA |
Need custom bowl sizes, extra drainboards, or welded accessories? Ask about Advance Tabco Smart Fabrication™ options to tailor this sink to your exact workflow.
