Advance Tabco 9-3-54-24L Regaline Compartment Sinks
Description

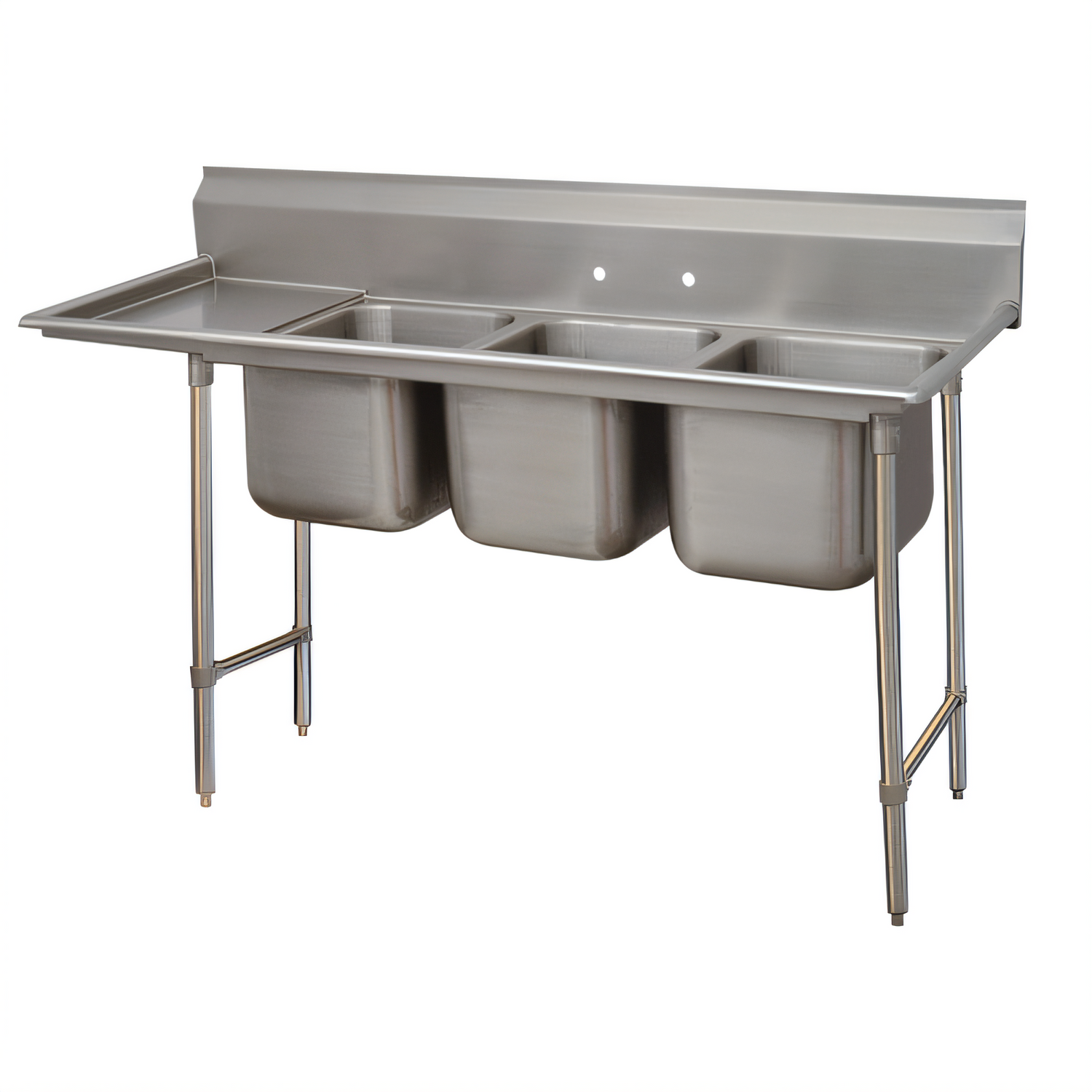

Advance Tabco Regaline 3-Compartment Sink with 24" Left Drainboard
18 ga Type 304 Stainless Steel • Model 9-3-54-24LGet wash, rinse and sanitize all in one rugged station. Advance Tabco’s Regaline series delivers seamless deep-drawn bowls, a generous drainboard and rock-solid stainless frame—perfect for restaurants, bars, cafeterias and commissaries that demand NSF-listed cleanliness and long-term durability.
Key Features
- (3) 16" W × 20" F/B × 12" D seamless bowls—no welded seams to trap debris.
- 24" left-hand drainboard with integrally welded splash to keep water contained.
- 18 ga type 304 stainless steel top, bowls & drainboard, TIG-welded then satin-polished.
- 8" high tile-edge backsplash, pre-punched for faucets on 8" centers.
- 1 5/8" Ø tubular legs with stainless side cross-rails for extra rigidity.
- 1" stainless steel adjustable bullet feet for quick, level installation.
- Large 3" radius bowl corners speed clean-up and promote proper drainage.
- (3) 1 1/2" IPS stainless basket drains included.
- NSF certified – meets the latest food-service sanitation standards.
Technical Specifications
| Compartments | 3 |
|---|---|
| Bowl Size (each) | 16" W × 20" F/B × 12" D |
| Drainboard | 24" L (left-hand) |
| Overall Dimensions | 84" L × 28" F/B × 42" H to top of backsplash (34" working height) |
| Backsplash | 8" H with 1" return |
| Faucet Holes | (2) Ø1 1/8" holes on 8" centers |
| Drain Outlets | 1 1/2" IPS basket strainers (included) |
| Material Thickness | 18 ga (0.050") Type 304 stainless steel |
| Legs & Bracing | 1 5/8" Ø 304 SS legs with adjustable side cross-rails |
| Feet | 1" stainless steel adjustable bullet feet |
| Approx. Shipping Weight | ≈ 177 lb |
| Certifications | NSF |
Looking for a right-hand drainboard, extra faucet holes, or custom modifications? Ask our team about Advance Tabco Smart Fabrication™ options.
