Advance Tabco 9-3-54-18R Regaline Compartment Sinks
Description

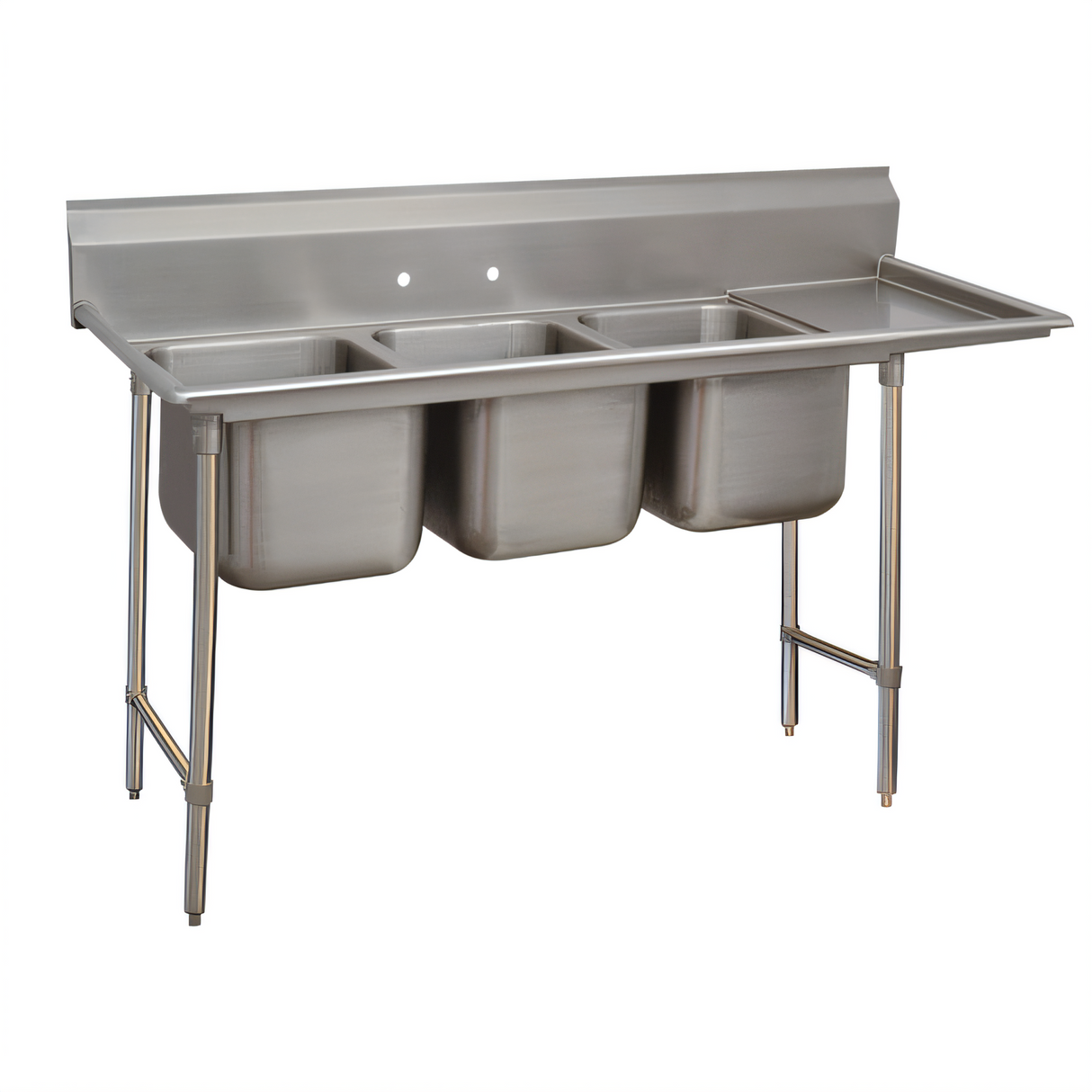

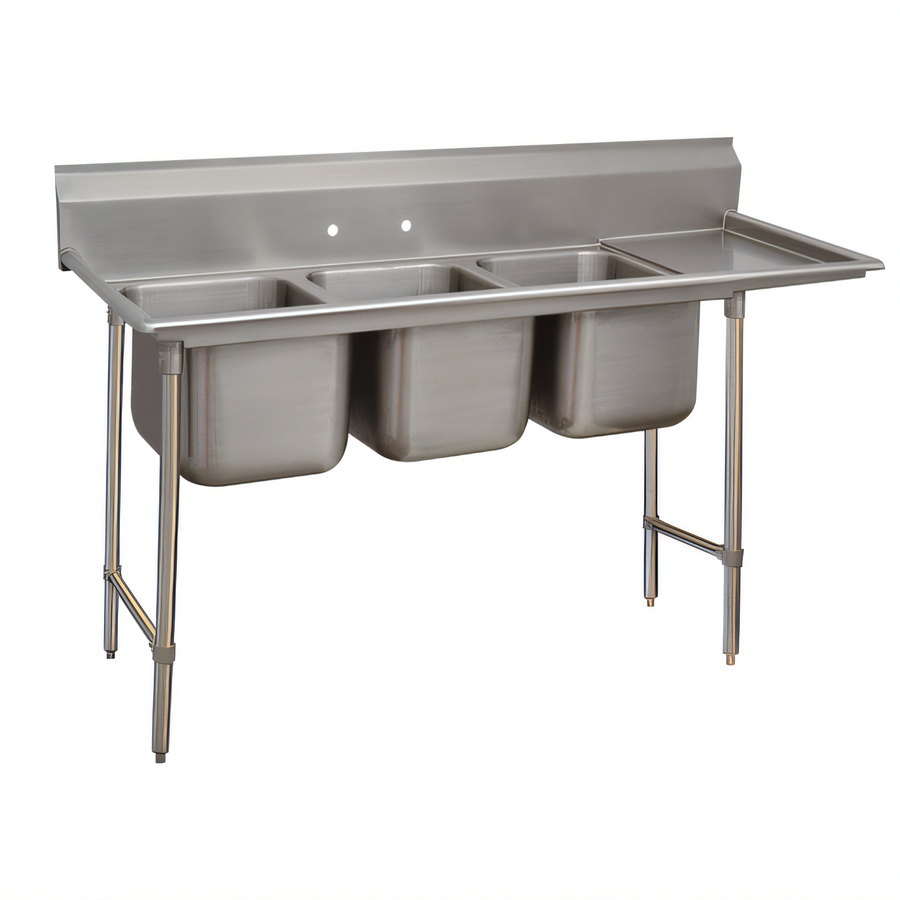

Advance Tabco Regaline 3-Compartment Sink w/ 18" Right Drainboard – 79" x 28"
Model 9-3-54-18R | NSF ListedOutfit your dishroom with a sink that works as hard as you do. The Super Saver Regaline series pairs rugged 18 ga, type 304 stainless steel with TIG-welded construction for years of dependable service. Three deep bowls handle wash, rinse and sanitize cycles, while an 18" right-hand drainboard keeps clean items organized and off the counter.
Key Features
- (3) 20" front-to-back x 16" wide x 12" deep bowls with easy-clean 3" radius corners.
- Integrated 8" backsplash with (2) 1-1/8" faucet holes on 8" centers (faucet not included).
- 18" right-hand drainboard pitched for rapid drainage and equipped with splash guard.
- Open frame base with 1 ⅝" O.D. stainless legs, adjustable side cross-rails and 1" bullet feet.
- All TIG-welded seams blended to a smooth satin finish.
- Includes (3) 1 ½" IPS stainless basket drains—centered in each bowl.
- Recessed bowl rims accept Poly-Vance cutting boards and sink covers (sold separately).
At-a-Glance Specifications
| Series | Regaline Super Saver (9 Series) |
|---|---|
| Model No. | 9-3-54-18R (Right-Hand Drainboard) |
| Overall Dimensions | 79" L × 28" F/B × 43" H (to top of backsplash) |
| Bowl Dimensions (3) | 20" F/B × 16" W × 12" D |
| Drainboard | 18" right-hand |
| Backsplash Height | 8" |
| Stainless Thickness | 18 ga (0.050") type 304 |
| Legs / Feet | 1 ⅝" O.D. tubular SS legs & 1" adjustable bullet feet |
| Drain Size | 1 ½" IPS per bowl |
| Faucet Centers | 8" |
| Approx. Shipping Weight | 167 lb |
| Certifications | NSF |
Plumbing & Installation Notes
- Requires ½" IPS hot & cold supply lines.
- Waste drains connect to 1 ½" piping (open floor, wall, or through-floor rough-ins—see cut-sheet).
- Legs bolt into place; cross-rails adjust for uneven floors.
Need a left-hand drainboard, custom bowl size, or additional accessories? Reach out for a fast Smart-Fab quote.
