Advance Tabco 9-3-54-18L Regaline Compartment Sinks
Description

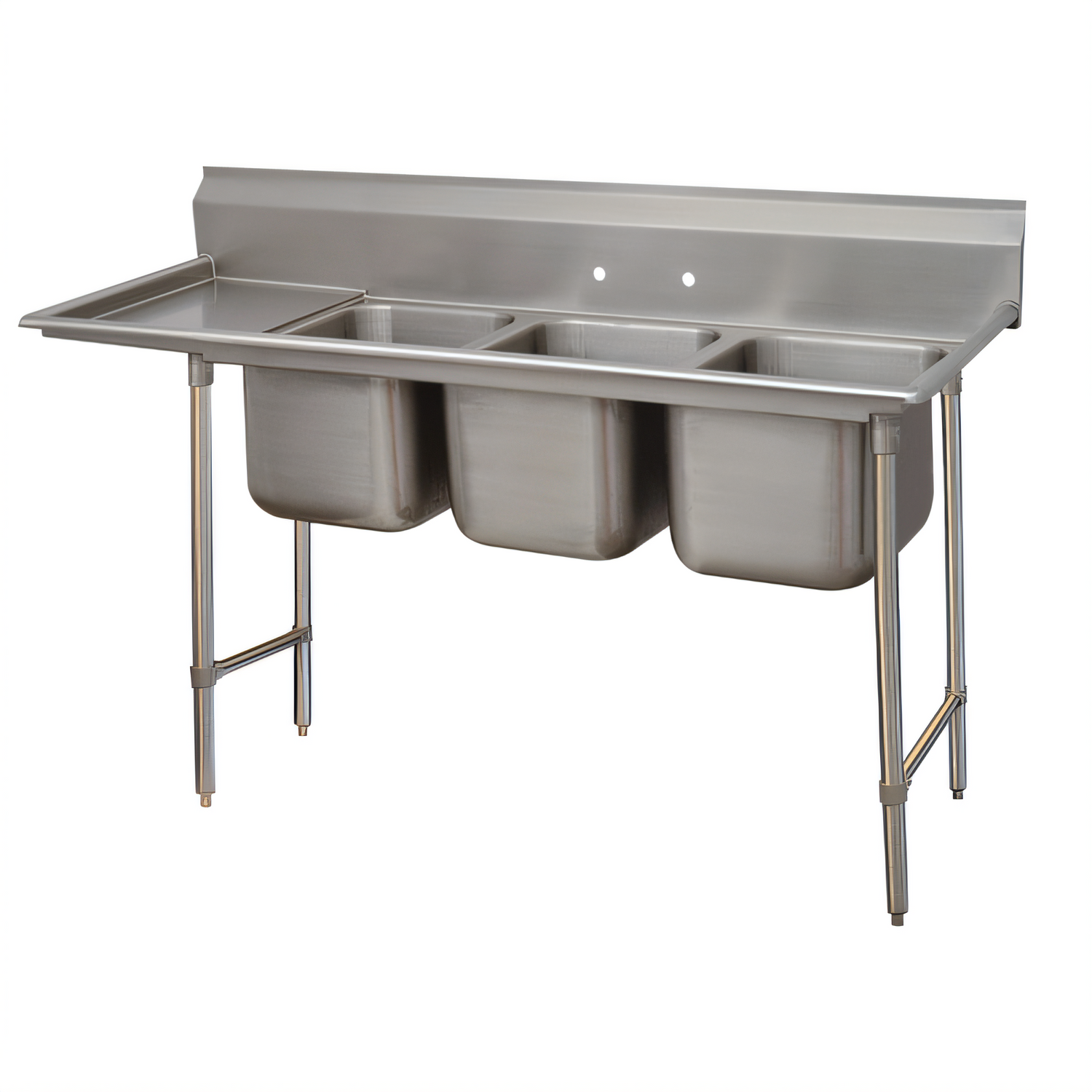

Advance Tabco Regaline 3-Compartment Sink with 18" Left Drainboard
Model 9-3-54-18L · 79" L × 28" D · 18 ga 304 Stainless SteelBuilt for high-volume foodservice, the Regaline Series combines rugged TIG-welded construction with smart, sanitation-focused details. Three spacious bowls and an integrated drainboard keep your dish or prep area moving efficiently while meeting NSF standards.
Key Features
- Three deep-drawn bowls — 20" front-to-back × 16" wide × 12" deep.
- 18" left-hand drainboard with raised backsplash keeps clean and soiled items separated.
- 8" high backsplash with tile edge for quick, watertight wall installation.
- 18 ga type 304 stainless steel top, bowls and splash — rust-resistant and easy to sanitize.
- Large 3" radius bowl corners speed cleaning and eliminate grime-trapping seams.
- Open frame base with 1⅝" Ø stainless legs, adjustable side cross-rails and 1" bullet feet for rock-solid stability.
- (3) 1½" IPS stainless basket drains included; faucet holes punched on 8" centers.
- TIG-welded; welds are blended to a smooth satin finish.
- NSF listed for commercial foodservice use.
Specifications
| Overall size | 79" L × 28" F/B × 43" H (to top of backsplash) |
|---|---|
| Compartments | 3 |
| Bowl dimensions (each) | 20" F/B × 16" W × 12" D |
| Drainboard | 18" L (left side) |
| Backsplash | 8" H with 2" return |
| Material | 18 ga type 304 stainless steel |
| Frame / legs | 1⅝" Ø stainless tubing with adjustable side cross-bracing |
| Feet | 1" stainless bullet feet, height-adjustable |
| Drain openings | (3) 1½" IPS with basket strainers (included) |
| Faucet holes | One set on 8" centers (faucet not included) |
| Certifications | NSF |
| Advance Tabco series | Regaline 9 Series (Super Saver) |
| Approx. shipping weight | 167 lb |
Ideal For
- Restaurant ware-washing stations
- Caterer or commissary prep kitchens
- Bakeries & cafés
- School & institutional foodservice
Looking for a different drainboard location, bowl size or heavier gauge? Ask about the full Advance Tabco Regaline line — custom configurations ship fast.
