Advance Tabco  |  Regaline  |  SKU: 9-24-80  |  UPC: 747545105639

Advance Tabco 9-24-80 Regaline Compartment Sinks

$3,898.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

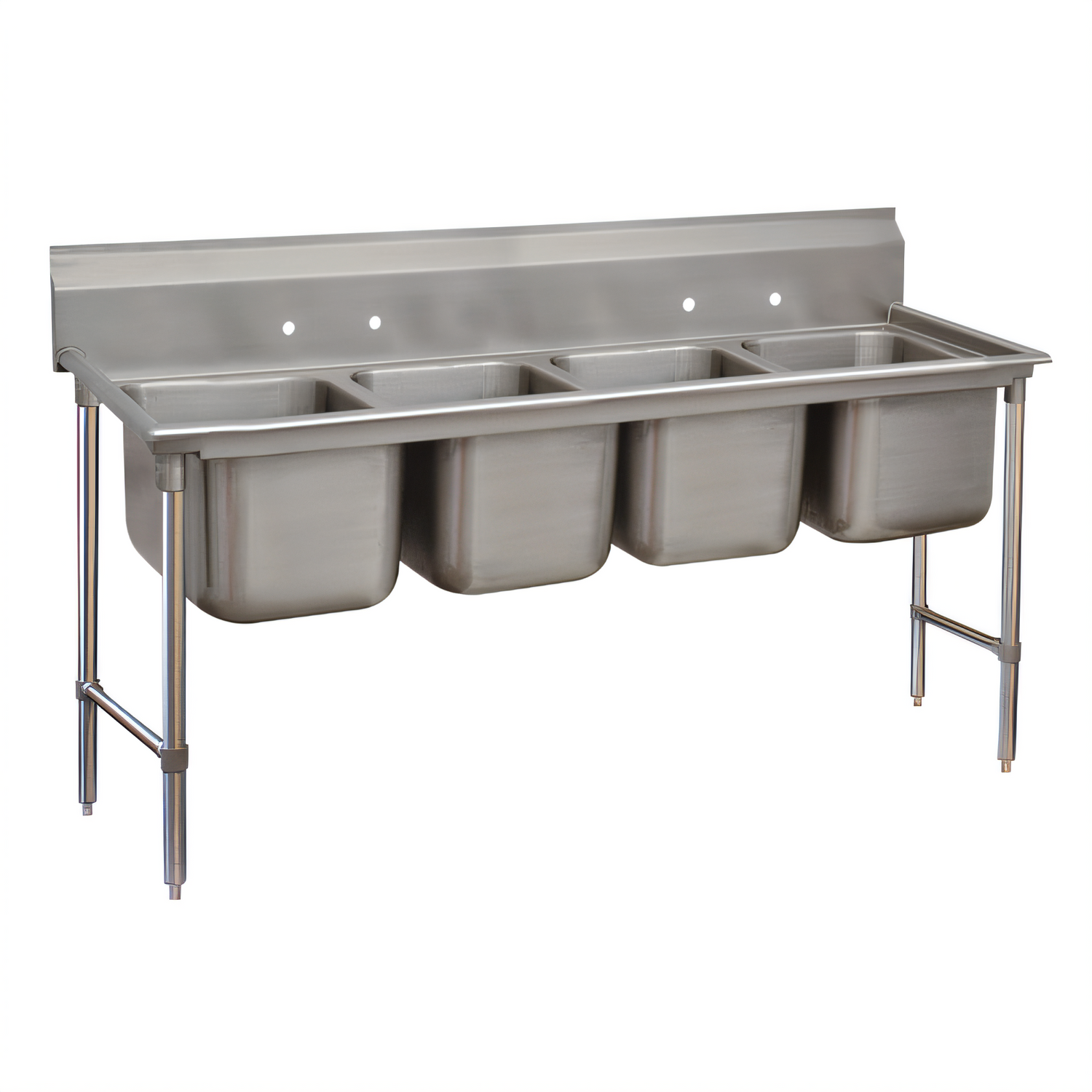

Advance Tabco Regaline 4-Compartment Sink – 9-24-80

99" L/R x 28" F/B • 20" x 20" x 12" Bowls • 18 ga 304 S/S

Built for busy commercial kitchens, this Regaline Super Saver series sink delivers the rugged durability you expect from Advance Tabco at an unbeatable value. Four spacious compartments speed up your wash-rinse-sanitize workflow while the open stainless frame saves floor space and makes cleaning underneath effortless.

Why You’ll Love It

  • Four deep-drawn bowls (20" F/B x 20" W x 12" D) handle high-volume warewashing and pot soaking.
  • 18 gauge type 304 stainless steel resists corrosion and everyday abuse.
  • 8" high backsplash with tile edge keeps water off the wall and installs flush against tiled surfaces.
  • Generous 3" radius bowl corners speed up clean-up and improve drainage.
  • Open frame base with 1 ⅝" O.D. tubular legs, stainless gussets, and adjustable side crossrails for rock-solid stability.
  • 1" adjustable bullet feet level the sink on uneven floors.
  • TIG-welded construction; welds are blended to a satin finish for a sleek, seamless look.
  • NSF listed for safe, code-compliant operation.

At-a-Glance Specifications

Manufacturer Advance Tabco
Series / Model Regaline Super Saver — 9-24-80
Number of Compartments 4
Bowl Interior (each) 20" front-to-back x 20" wide x 12" deep
Overall Dimensions 28" front-to-back x 99" left-to-right
Backsplash Height 8"
Material & Gauge 18 ga type 304 stainless steel
Legs / Base 1 ⅝" O.D. S/S tubular legs with side cross-bracing & 1" adjustable bullet feet
Drain Size & Type 1 ½" IPS basket drains (centered in each bowl, included)
Faucet Holes Two sets on 8" centers — requires 2 faucets (sold separately)
Water Supply ½" IPS hot & cold
Shipping Weight Approx. 192 lb
Certifications NSF

Perfect For

  • High-volume dish rooms that need a dedicated wash › rinse › sanitize › soak / prep sequence
  • Restaurants, commissaries, and ghost kitchens looking to maximize throughput in tight footprints
  • Schools, cafeterias, and healthcare facilities that demand NSF-listed sanitation equipment

Plumbing rough-ins: ½" IPS hot & cold water on 8" centers; 1 ½" IPS waste connections. Review local code requirements prior to installation.

Heads-up: Two deck-mount faucets are required and are not included. Choose from Advance Tabco’s compatible 8" center faucets to complete your setup.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

99.0in

Depth

28.0in

Shipping Weight

179.0lbs

Sink Depth (rim - drain)

12"

Compartment (front - back)

20"

Splash Height

8"

Base Type

legs with side crossrails

Compartment Width (side - side)

20"

Top Stainless Series

300 series

Top Gauge

18 gauge

Overall Length

98" - 113"

Drainboards

without drainboards

Base Construction

stainless steel

Specifications

Regaline Sink, 4-compartment, 20" front-to-back x 20" wide sink compartments, 12" deep, with 8" high splash, stainless steel open frame base, side crossrails, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 28" F/B x 99" L/R, NSF (requires 2 faucets)
