Description

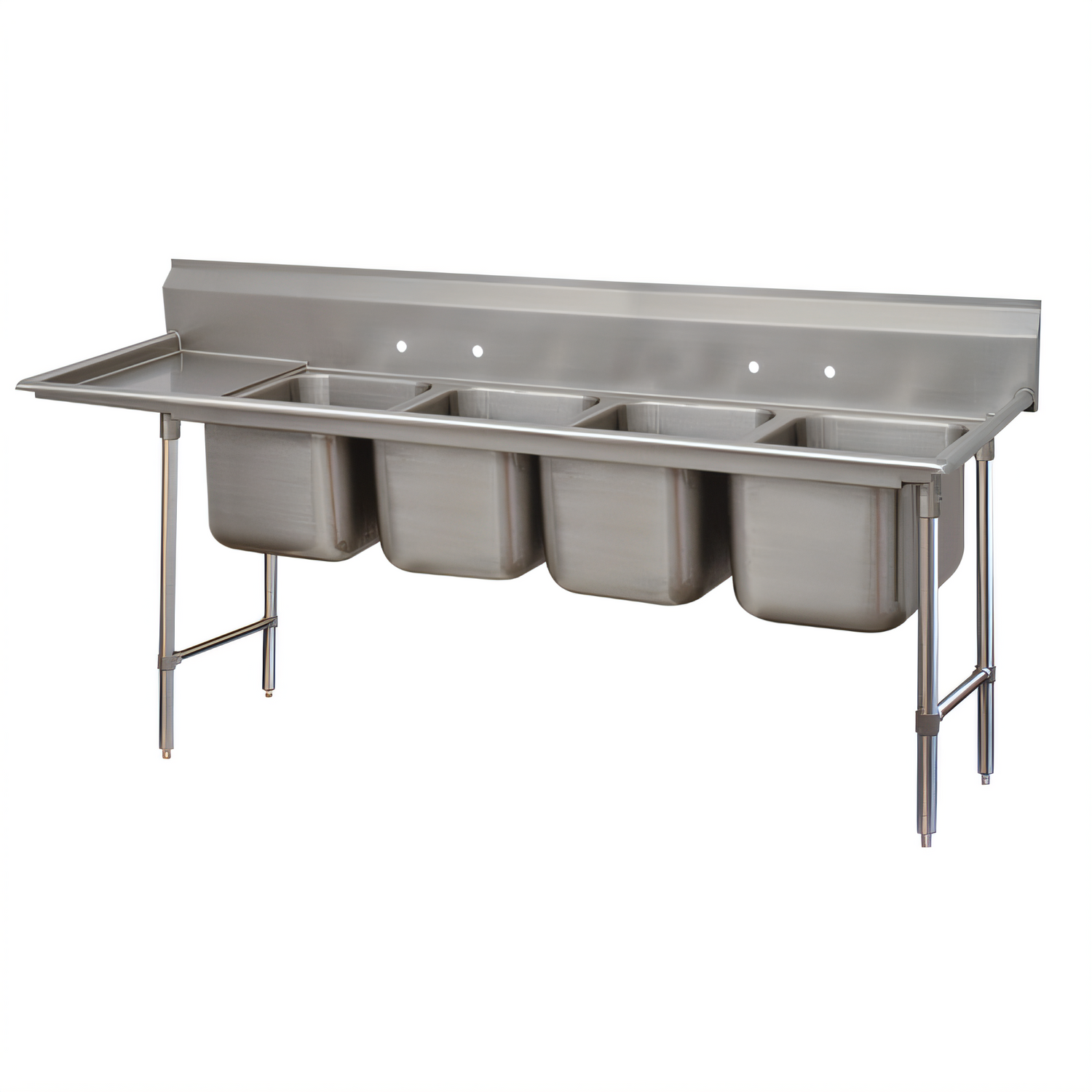

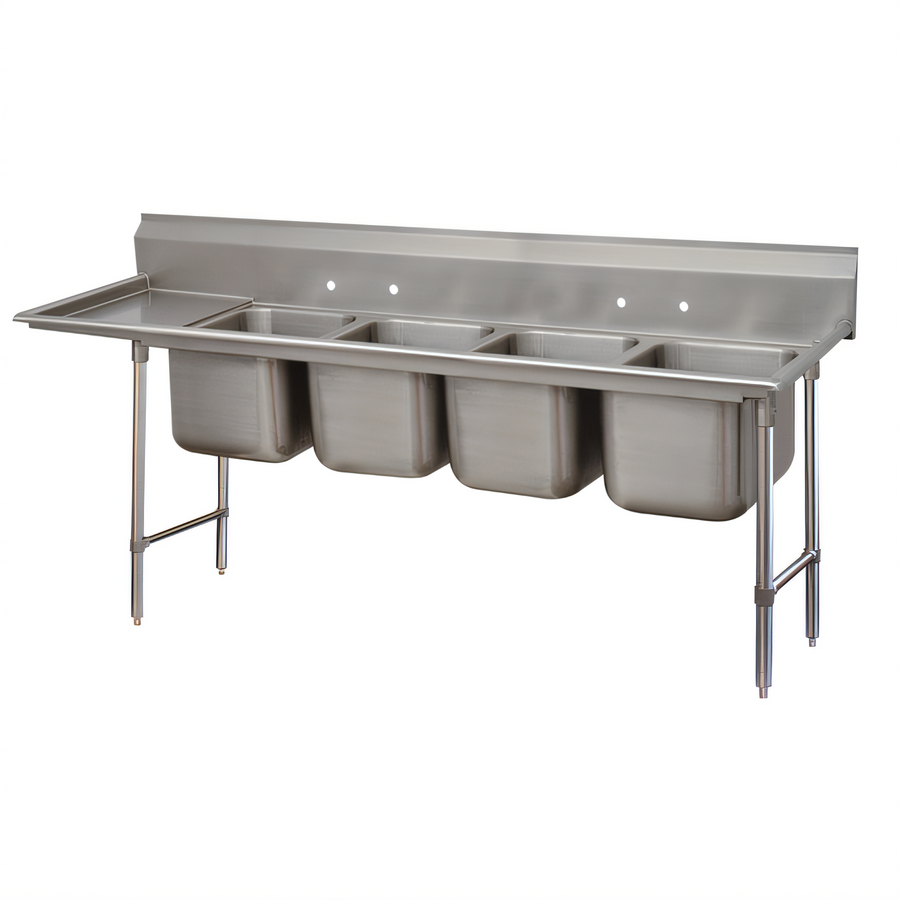

Advance Tabco Regaline 4-Compartment Sink w/ 36" Left Drainboard

Model 9-24-80-36L • 18 ga 304 Stainless Steel • NSF Listed

Built for busy commercial kitchens that need maximum washing capacity in a single, seamless unit, this Advance Tabco Regaline sink features four spacious 20" × 20" bowls, a full-length 36" left-hand drainboard, and the rock-solid durability operators expect from America’s stainless-steel leader.

Key Features

  • (4) 20" D × 20" W × 12" H deep-drawn sink bowls with generous 3" corner radius for easy cleaning
  • One-piece 36" drainboard (left side) with raised ribbed surface for fast drying  •  factory-supplied extra legs for added support
  • 8" rear backsplash with 1" rolled rim protects walls from splashes
  • 18 gauge type 304 stainless steel top, bowls & drainboard – corrosion-resistant and food-safe
  • TIG-welded construction; welds blended to a satin finish for a seamless look
  • Stainless 1 5/8" Ø tubular legs with side crossrails and 1" adjustable bullet feet for rock-steady installation on uneven floors
  • (4) 1 1/2" IPS stainless basket drains included – centered in each compartment
  • Pre-punched 8"-on-center faucet holes (two faucet sets required)
  • NSF certified for sanitation compliance

At-a-Glance Specifications

Overall dimensions 130" L × 28" D × (37" rim / 43" top of backsplash) H
Compartments (qty 4) 20" L × 20" W × 12" D
Drainboard 36" left-hand, integrally welded
Material & gauge 18 ga type 304 stainless steel
Leg frame 1 5/8" Ø stainless tubing & adjustable side cross-bracing
Backsplash height 8" (w/ 1" rolled rim)
Drain size 1 1/2" IPS (basket strainers included)
Faucet mounting (2) sets of 8"-O.C. holes – faucets sold separately
Certifications NSF
Shipping weight ≈ 250 lb
Important: This sink requires two 8" center wall or splash-mount faucets. Faucets and plumbing accessories are not included.

Looking for matching faucets, cutting boards or sink covers? Ask our team about factory-approved Advance Tabco accessories for a perfect fit.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

130.0in

Depth

28.0in

Shipping Weight

250.0lbs

Overall Length

130" - 198"

Compartment (front - back)

20"

Splash Height

8"

Base Type

legs with side crossrails

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Compartment Width (side - side)

20"

Top Gauge

18 gauge

Drainboards

with left-hand drainboard

Base Construction

stainless steel

Specifications

Regaline Sink, 4-compartment, with left-hand drainboard, 20" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboard, 1" adjustable feet, 18 gauge 304 stainless steel, overall 28" F/B x 130" L/R NSF (requires 2 faucets)
