Advance Tabco  |  Regaline  |  SKU: 9-23-60-36L  |  UPC: 747545105608

Advance Tabco 9-23-60-36L Regaline Compartment Sinks

$3,944.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

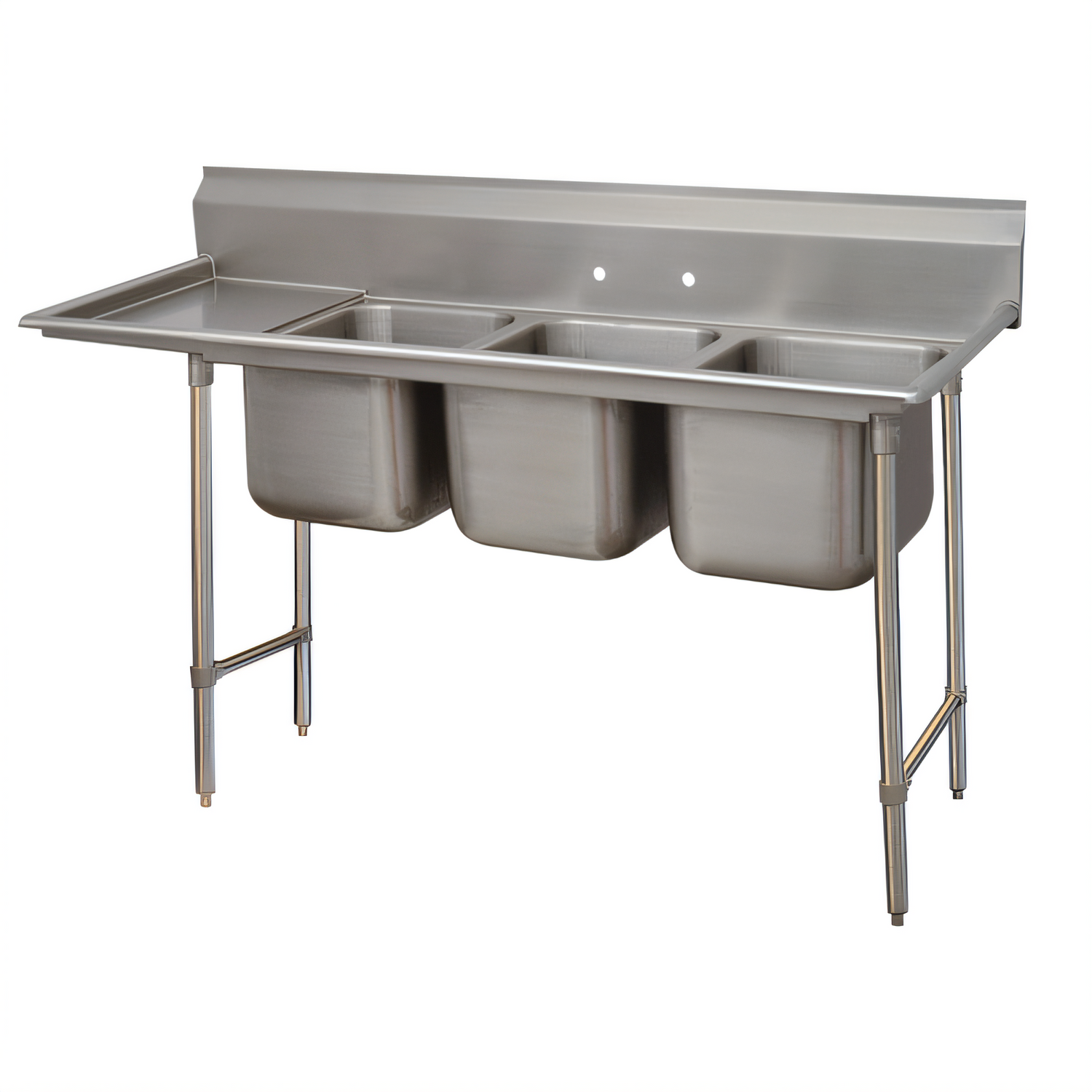

Advance Tabco Regaline 3-Compartment Sink w/ 36" Left Drainboard

Super Saver 9-23-60-36L | 18-Gauge 304 Stainless Steel

Engineered for high-volume ware-washing, the Advance Tabco Regaline series combines generous bowl capacity, an extra-long drainboard, and rugged stainless construction that stands up to daily abuse while keeping your dish room NSF compliant.

Key Features

  • Three 20" × 20" × 12" deep bowls – perfect for wash, rinse & sanitize.
  • 36" left-hand drainboard with splash-guarded embossing for rapid water runoff.
  • 8" high backsplash with 2" return protects surrounding walls.
  • 18-gauge type 304 stainless steel – corrosion-resistant & easy to sanitize.
  • One-piece deep-drawn bowls with smooth 3" radius corners for quick clean-up.
  • TIG-welded open frame base with 1 ⅝" Ø legs & adjustable side cross-rails.
  • 1" stainless bullet feet level the unit on uneven floors.
  • Pre-punched 8" O.C. splash-mount faucet holes (faucet not included).
  • (3) 1 ½" IPS stainless basket drains included – ready for hook-up.
  • NSF listed for commercial food-service use.

Specifications

Overall size 108" L × 28" F/B × 44" H (to top of backsplash)
Work height 34" – field adjustable
Bowl interior (each) 20" L × 20" W × 12" D
Drainboard 36" L – left side
Backsplash 8" H with 2" return
Material 18-ga 304 stainless steel (satin finish)
Legs / base 1 ⅝" Ø S/S tubing, side cross-bracing, 1" bullet feet
Drain opening (3) 1 ½" IPS – centered in bowls
Faucet holes (2) – 8" on-center splash-mount
Approx. weight 208 lb (shipping)
Certifications NSF

Ideal For

  • Restaurants, bars & breweries
  • School & healthcare cafeterias
  • Catering commissaries
  • Pot & pan wash stations
Important: Faucet, trap and supply lines are shown for reference only and are sold separately.

Looking for different bowl sizes, opposite drainboard, or custom add-ons? Ask about Advance Tabco Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

108.0in

Depth

28.0in

Shipping Weight

208.0lbs

Drainboards

with left-hand drainboard

Base Type

legs with side crossrails

Compartment (front - back)

20"

Compartment Width (side - side)

20"

Overall Length

97" - 108"

Sink Depth (rim - drain)

12"

Splash Height

8"

Top Stainless Series

300 series

Base Construction

stainless steel

Top Gauge

18 gauge

Specifications

Regaline Sink, 3-compartment, with left-hand drainboard, 20" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboard, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 28" F/B x 108" L/R, NSF
