Advance Tabco  |  Regaline  |  SKU: 9-23-60-24RL  |  UPC: 747545105592

Advance Tabco 9-23-60-24RL Regaline Compartment Sinks

$4,079.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

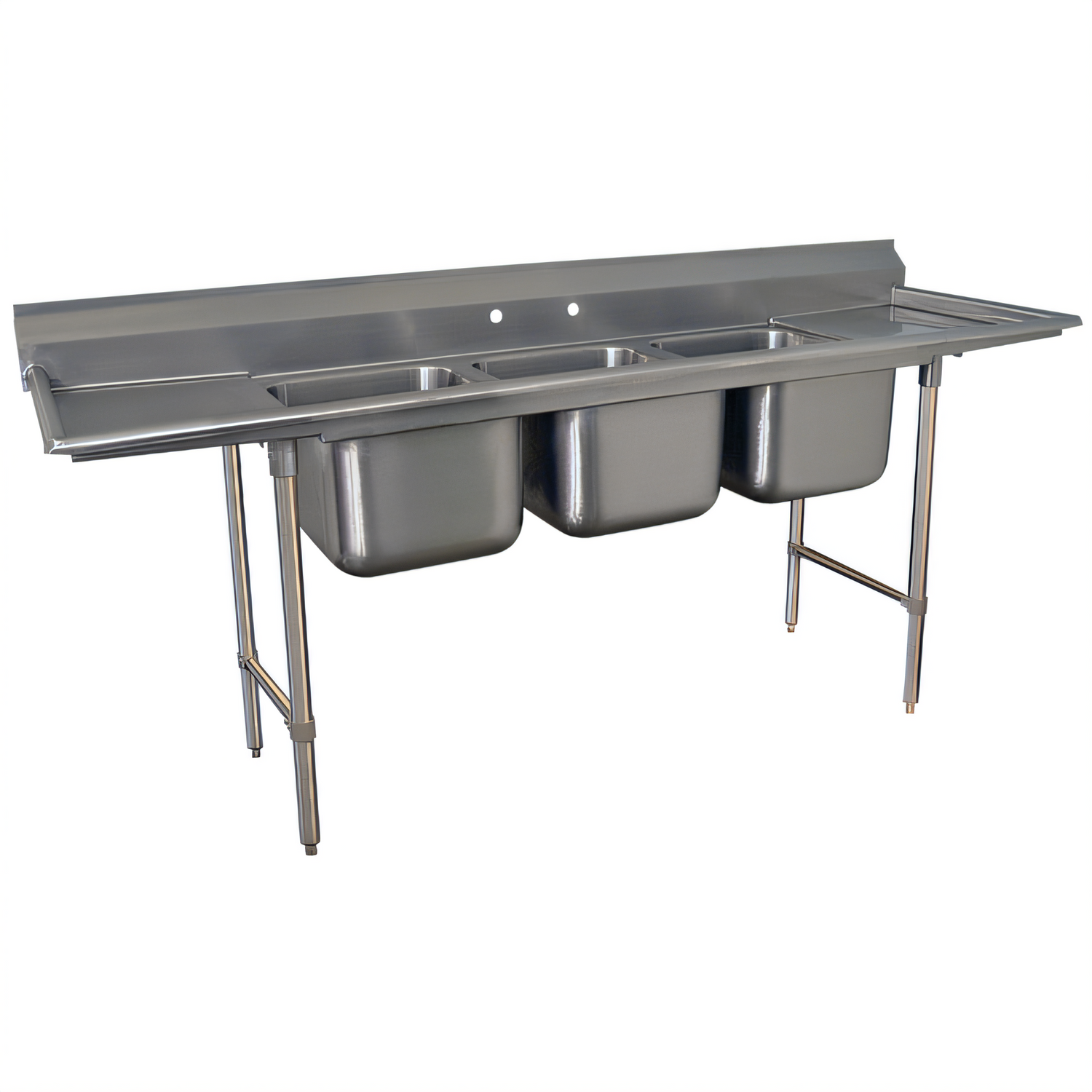

Regaline 3-Compartment Sink with Dual 24" Drainboards

Advance Tabco • NSF Listed • 18 ga 304 Stainless Steel

Built for high-volume dishrooms that demand rock-solid sanitation and lightning-fast workflow, this Advance Tabco Regaline sink delivers three roomy 20" × 20" compartments flanked by full-size drainboards on both the left and right. 100 % TIG-welded stainless construction, an open frame base, and NSF certification make it the professional choice for restaurants, hotels, schools, and commissaries.

Key Features

  • Three 20" × 20" × 12" deep bowls with generous 3" interior corner radius for easy cleaning
  • Dual 24" drainboards (left & right) speed up loading and unloading
  • Integrated 8" backsplash with tile-edge top simplifies wall installation
  • 18 ga type 304 stainless steel—corrosion resistant & food-safe
  • Open frame base with adjustable side crossrails for rock-solid rigidity
  • 1⅝" Ø stainless legs with 1" adjustable bullet feet level the sink on uneven floors
  • Pre-punched 8" on-center faucet holes; 1½" IPS basket drains included (three total)
  • All welds blended to a smooth satin finish; completely TIG welded
  • NSF certified for hygienic commercial use

At-a-Glance Specifications

Overall dimensions (F/B × L/R) 28" × 117"
Number of compartments 3
Bowl size (each) 20" front-to-back × 20" wide × 12" deep
Drainboard length 24" (left) & 24" (right)
Backsplash height 8"
Material / gauge 18 ga type 304 stainless steel
Legs / feet 1⅝" Ø stainless legs with 1" adjustable bullet feet
Plumbing (3) 1½" IPS basket drains included; ½" IPS hot & cold supply, 8" O.C. faucet holes
Certifications NSF

Ideal Applications

  • High-volume dishwashing in full-service restaurants
  • Pot and pan clean-up stations in hotels & resorts
  • School cafeterias, commissaries, and ghost kitchens
  • Food-processing or prep areas that require a dedicated wash-rinse-sanitize setup

Faucets and plumbing trap are shown for reference only and are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

115.0in

Depth

28.0in

Shipping Weight

195.0lbs

Compartment (front - back)

20"

Base Type

legs with side crossrails

Splash Height

8"

Compartment Width (side - side)

20"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Base Construction

stainless steel

Overall Length

109" - 170"

Top Gauge

18 gauge

Drainboards

with left & right-hand drainboards

Specifications

Regaline Sink, 3-compartment, with left & right-hand drainboards, 20" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboards, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 28" F/B x 117" L/R, NSF
