Advance Tabco 9-23-60-24R Regaline Compartment Sinks
Description

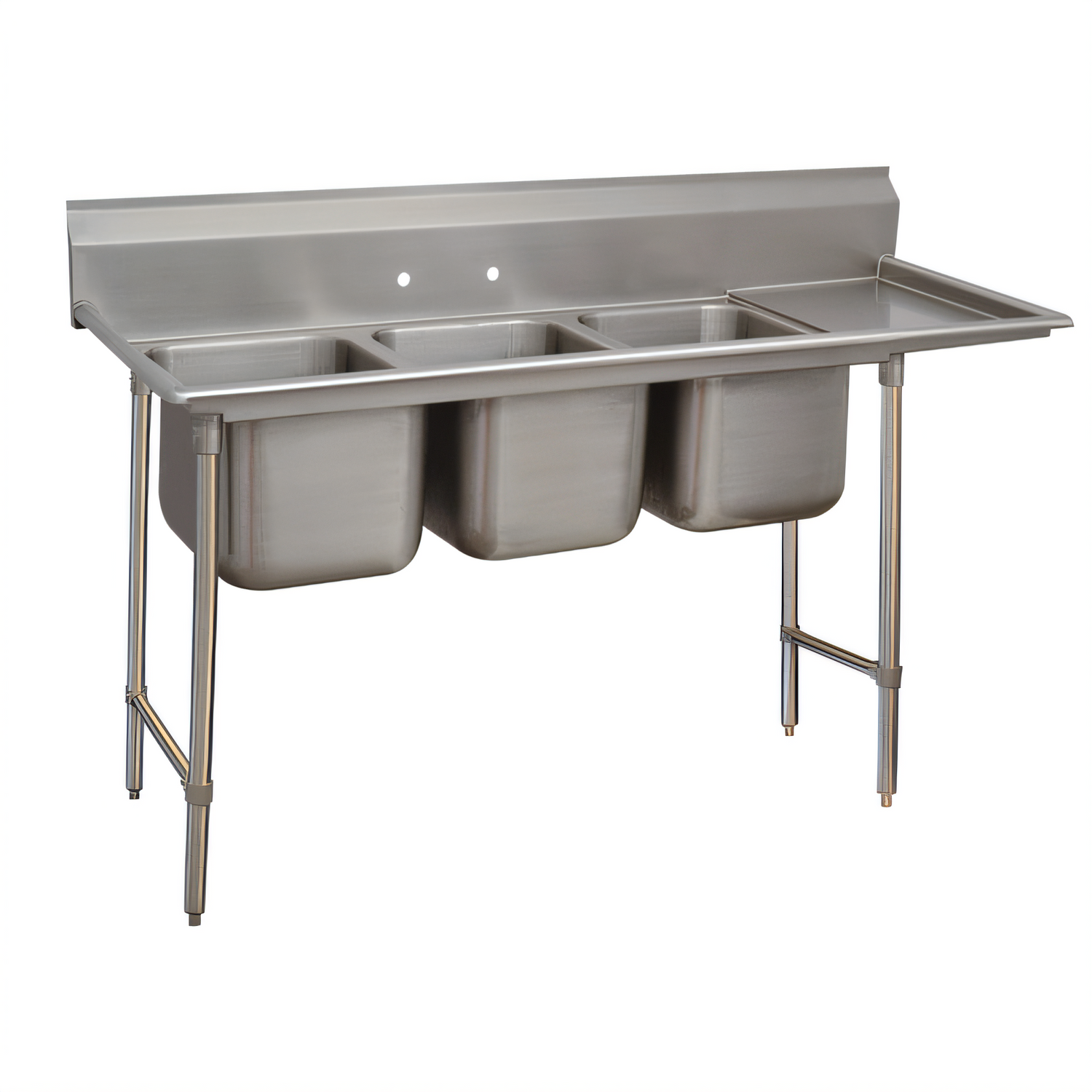

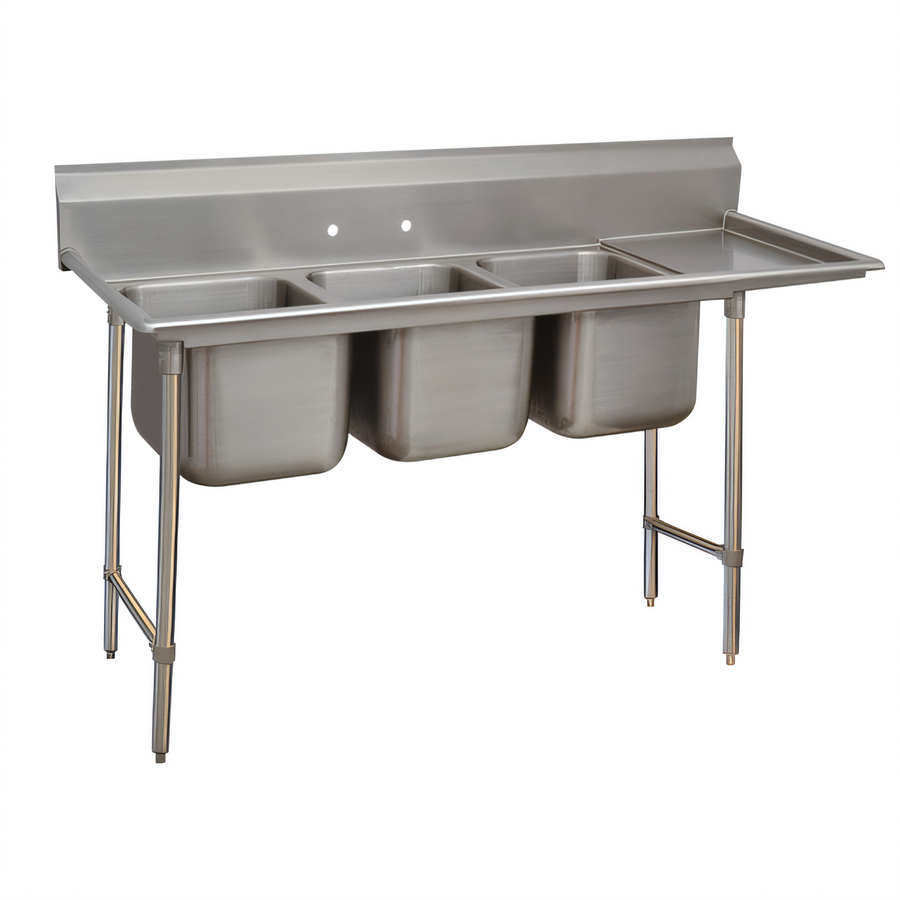

Regaline 3-Compartment Sink w/ 24" Right-Hand Drainboard – 96"L x 28"D
Advance Tabco Super Saver 9 Series • Model 9-23-60-24R • NSF ListedBuilt for high–volume kitchens that need rugged performance in a compact footprint, the Regaline 9 Series brings Advance Tabco’s seamless deep-drawn bowl technology to an 18-gauge, type 304 stainless steel sink that is as tough as it is easy to clean. Three 20" x 20" x 12" bowls handle heavy prep and ware-washing duties, while a full-size 24" drainboard on the right keeps workflow organized and sanitary.
Key Features
- Three deep-drawn, one-piece bowls with generous 3" radius corners for effortless cleanup.
- Bowl size: 20" front-to-back x 20" wide x 12" deep (12" water level).
- Integrated 8" high backsplash with tile edge for leak-free wall installation.
- 24" right-hand drainboard slopes to drain and includes backsplash & retaining lip.
- Heavy-duty 18 ga. type 304 stainless steel construction throughout.
- Open frame base with 1 5⁄8" Ø stainless steel legs, welded gussets & side crossrails.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
- TIG-welded and blended to a smooth satin finish for lasting good looks.
- NSF certified for food-service sanitation.
At-a-Glance Specifications
| Overall dimensions | 96" L x 28" D x 44" H (to top of backsplash) |
|---|---|
| Compartments | (3) — 20" x 20" x 12" |
| Drainboard | 24" right-hand, integrally welded |
| Backsplash height | 8" with 2" return |
| Material | 18 ga. 304 SS (sink, bowls & drainboard) |
| Legs / bracing | 1 5⁄8" Ø 304 SS legs with side cross-bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Drain openings | 1 1⁄2" IPS stainless steel basket drains (included) |
| Faucet mounting | 8" centers (faucets sold separately) |
| Shipping weight | ≈ 193 lb |
Why Choose the Super Saver 9 Series?
- Cost-effective 18 ga. construction without sacrificing the strength of 304 stainless steel.
- “YES! It’s Seamless!” deep-drawn bowls eliminate hard-to-clean weld seams.
- Side-only bracing leaves the front open for easy mop access and under-sink storage.
- Factory support for custom Smart Fabrication™ modifications if your layout requires them.
Need help configuring plumbing accessories or custom options? Call Advance Tabco Smart Fab at 1-800-498-6634.
