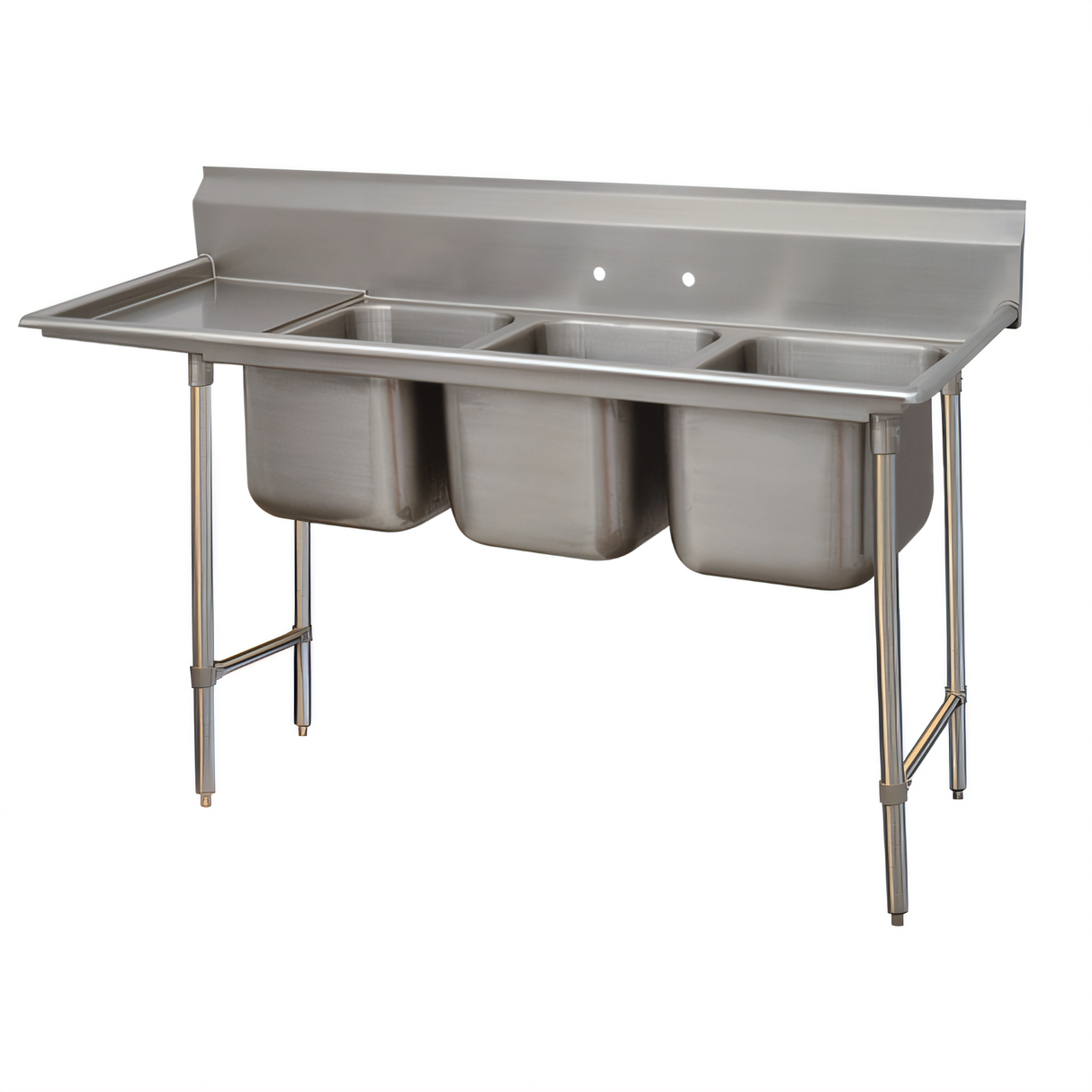

Advance Tabco Regaline 3-Compartment Sink with 24" Left Drainboard
Model 9-23-60-24L | 18 ga Type 304 Stainless SteelEngineered for the demands of commercial kitchens, the Regaline three-compartment sink delivers heavy-duty performance, streamlined cleaning, and NSF-approved sanitation in one space-saving unit.
Key Features
- Three deep-drawn bowls measure 20" W x 20" F/B x 12" D—ideal for wash, rinse & sanitize stations.
- Integral 24" left-hand drainboard with splash neatly channels water back into the sink.
- 8" high backsplash protects walls and arrives pre-punched for an 8"-center faucet (not included).
- 18 gauge, type 304 stainless steel resists corrosion from detergents, salts, and food acids.
- All TIG-welded construction with large 3" radius corners for fast, thorough clean-up.
- Open tubular base with adjustable side cross-rails maximizes leg clearance and floor access.
- 1 ⅝" O.D. stainless steel legs with 1" adjustable bullet feet keep the unit level on uneven floors.
- (3) 1 ½" IPS stainless basket drains included—centered in each compartment.
- NSF listed for food-service sanitation compliance.
Specification Sheet
Compartments | 3 |
---|---|
Individual Bowl Size | 20" W × 20" F/B × 12" D |
Drainboard | 24" (left-hand) |
Overall Dimensions | 28" F/B × 96" L/R |
Backsplash Height | 8" |
Faucet Holes | (2) ⅞" dia. holes on 8" centers |
Drain Size | 1 ½" IPS (basket type, included) |
Material / Gauge | Type 304 stainless steel / 18 ga |
Base Style | Open frame with adjustable side cross-bracing |
Legs & Feet | 1 ⅝" tubular stainless legs, 1" adjustable bullet feet |
Certifications | NSF |
Perfect For
- High-volume restaurants & bars
- Hotel and resort kitchens
- Catering commissaries & ghost kitchens
- School, university & hospital dish rooms
Need a custom size, additional drainboards, or heavier gauge? Ask about Advance Tabco Smart Fabrication™ options.
