Advance Tabco 9-22-40-18RL Regaline Compartment Sinks
Description

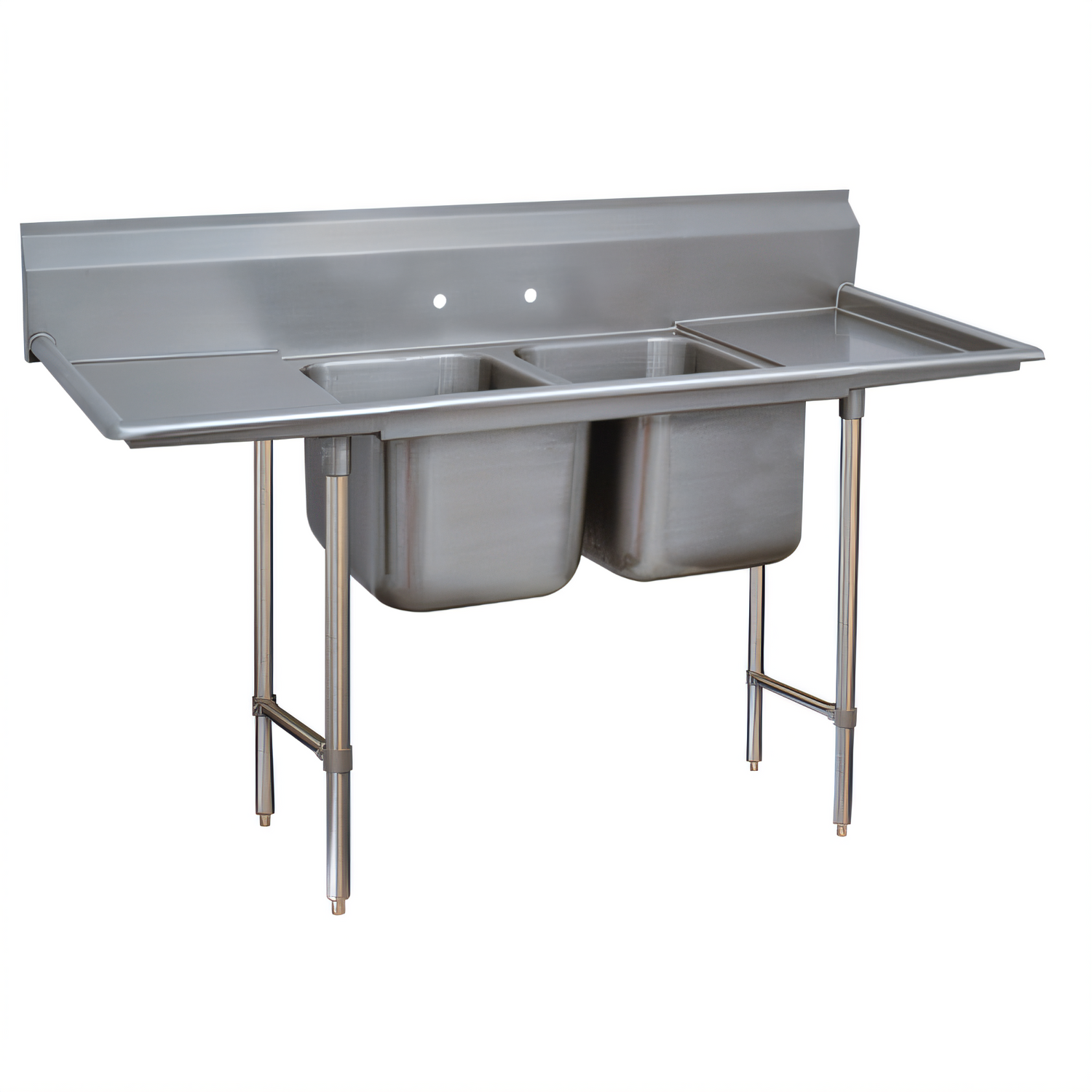

Advance Tabco Regaline 9-22-40-18RL Two-Compartment Sink
81" L x 28" W • Dual 18" Drainboards • 18 ga 304 Stainless SteelBuilt for kitchens that need rock-solid performance on a lean budget, the Super Saver 9-Series Regaline sink combines Advance Tabco’s seamless deep-drawn bowls, TIG-welded durability and NSF sanitation into one efficient workstation.
Key Features
- Two 20" × 20" sink compartments, 12" deep, with easy-to-clean 3" radius corners.
- Left & right 18" sloped drainboards return water directly to the bowls for faster drying.
- 8" high backsplash with tile edge protects walls and speeds installation.
- 18 gauge type 304 stainless steel resists corrosion without the added weight or cost of thicker metal.
- All TIG-welded seams are blended to a uniform satin finish for a professional look.
- Open stainless steel frame with adjustable side crossrails maximizes under-sink storage access.
- 1 5/8" Ø stainless steel legs with 1" adjustable bullet feet for quick, level setup.
- Pre-punched 8" on-center faucet holes; 1½" IPS basket drains included (faucets sold separately).
- NSF certified for food-service sanitation and safety.
At-a-Glance Specifications
| Model | 9-22-40-18RL |
|---|---|
| Series | Regaline “Super Saver” 9 Series |
| Compartments | 2 |
| Bowl Interior (each) | 20" W × 20" F/B × 12" D |
| Drainboards | 18" left & 18" right |
| Backsplash | 8" H with 1" return |
| Overall Dimensions | 81" L × 28" F/B × 37" H (work surface) |
| Material / Gauge | 18 ga type 304 stainless steel |
| Legs / Feet | 1 5/8" Ø S/S legs, 1" adjustable bullet feet |
| Drain Size | 1½" IPS basket drains (included) |
| Faucet Holes | 2 holes, 8" centers (faucet not included) |
| Certifications | NSF |
Looking for heavier 16 ga or 14 ga construction? Check out the 93-Series and 94-Series Regaline models or contact us for custom Smart Fabrication™ options.
