Advance Tabco  |  Regaline  |  SKU: 9-21-20-36RL  |  UPC: 747545105363

Advance Tabco 9-21-20-36RL Regaline Compartment Sinks

$2,696.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

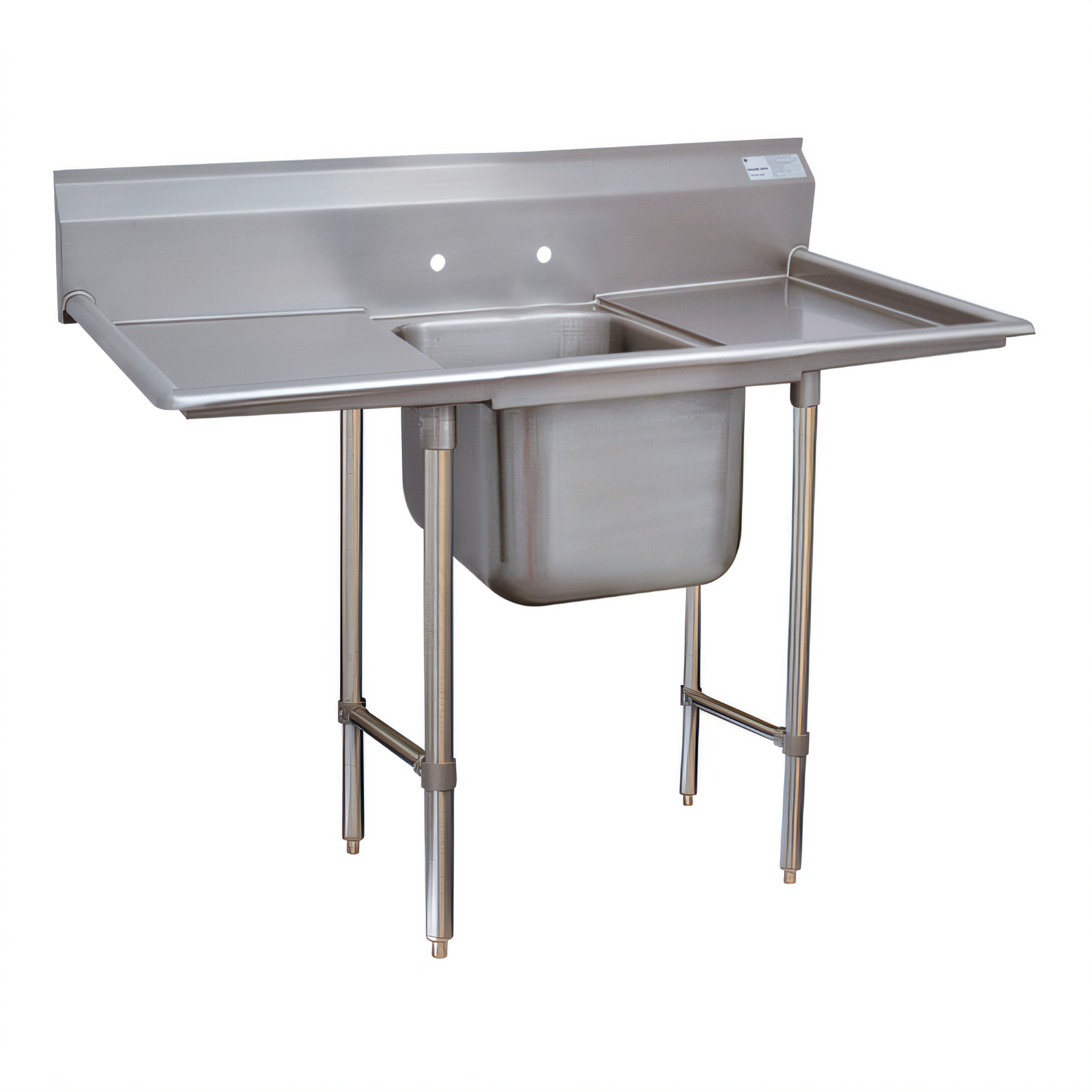

Advance Tabco Regaline 1-Compartment Sink – Dual 36" Drainboards

Model 9-21-20-36RL | Super Saver “9” Series

Built for busy prep, warewashing and pot-scrubbing stations, the Advance Tabco Regaline 9-21-20-36RL combines an extra-large 20" x 20" bowl with full-size 36" drainboards on both sides. Heavy-duty 18-gauge 304 stainless steel, TIG-welded seams and NSF certification ensure years of trouble-free service in commercial kitchens, commissaries and institutional facilities.

Key Features
  • 1 large compartment (20" W x 20" F/B x 12" D) with generous 3" corner radius for easy cleanup
  • (2) 36" integral drainboards—left & right—for maximum landing space
  • 18-gauge type 304 stainless steel – corrosion-resistant & food-safe
  • 8" high backsplash with tile-edge front for quick, sanitary installation
  • TIG-welded, satin-blended seams for a SeaMless! appearance
  • Open frame base with 1⅝"-diameter tubular stainless legs
  • Adjustable side cross-rails & extra support legs under each 36" drainboard
  • 1" stainless steel bullet feet—height adjustable for perfect leveling
  • Pre-punched 8"-on-center faucet holes (faucet sold separately)
  • 1½" IPS stainless steel basket drain included
  • NSF listed for food-service use
Specifications
Manufacturer Advance Tabco
Series Regaline “Super Saver” 9 Series
Model # 9-21-20-36RL
Compartments 1
Bowl Size (W × F/B × D) 20" × 20" × 12"
Drainboards (2) 36" – left & right
Overall Dimensions 94" L × 28" F/B × 41" H (to top of backsplash)
Backsplash Height 8"
Material & Gauge 18-ga. Type 304 stainless steel
Legs & Feet 1⅝" O.D. S/S legs with 1" adjustable bullet feet
Cross-Bracing Adjustable side rails with leg clamps
Drain Opening 1½" IPS with S/S basket strainer (included)
Faucet Holes (2) on 8" centers – accepts deck-mount faucets
Approx. Weight 147 lb
Certifications NSF

Faucet and trap are not included; choose from our compatible faucet options. 36" drainboards are factory-equipped with additional support legs per NSF requirements.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

94.0in

Depth

28.0in

Shipping Weight

147.0lbs

Base Type

legs with side crossrails

Top Gauge

18 gauge

Splash Height

8"

Base Construction

stainless steel

Compartment Width (side - side)

20"

Drainboards

with left & right-hand drainboards

Overall Length

73" - 108"

Sink Depth (rim - drain)

12"

Compartment (front - back)

20"

Top Stainless Series

300 series

Specifications

Regaline Sink, 1-compartment, with left & right-hand drainboards, 20" front-to-back x 20"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboards, 18 gauge 304 stainless steel, 1" adjustable bullet feet, overall 28" F/B x 94" L/R, NSF
