Advance Tabco  |  Regaline  |  SKU: 9-21-20-18L  |  UPC: 747545105257

Advance Tabco 9-21-20-18L Regaline Compartment Sinks

$2,290.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

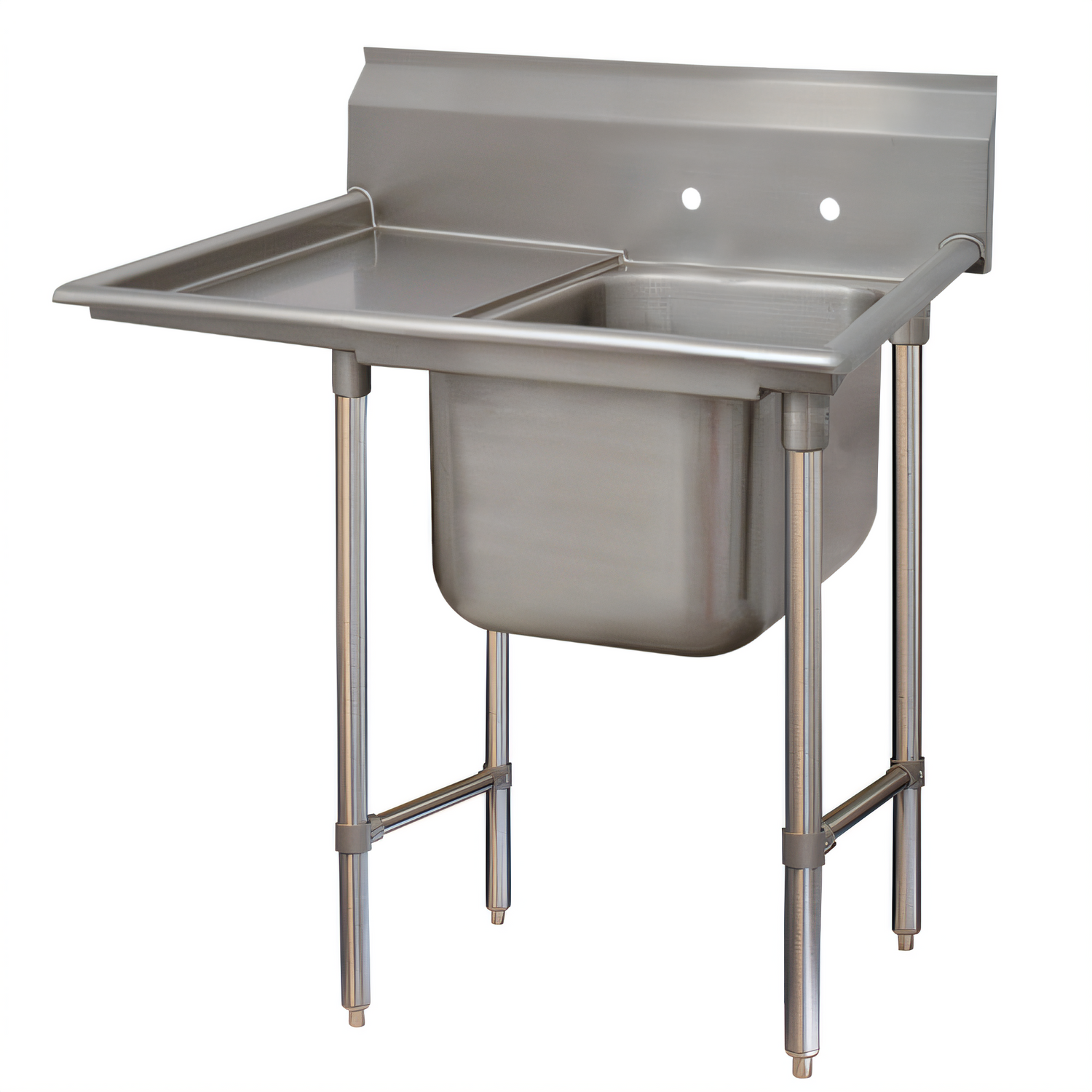

Advance Tabco Regaline 9 Series 1-Compartment Sink with 18" Left Drainboard

Model 9-21-20-18L  |  20" × 20" × 12" Bowl  |  18 ga 304 Stainless Steel

Engineered for demanding food-service environments, the Regaline 9 Series sink delivers heavy-duty performance in a compact footprint. Its seamless TIG-welded construction, open-frame base and generous drainboard make clean-up quicker, safer and more sanitary.

Key Benefits
  • Deep-drawn 20" × 20" × 12" bowl with large 3" corner radius for easy clean-out.
  • 18" left-hand drainboard slopes toward the bowl to keep surrounding counters dry.
  • 8" high backsplash with tile edge simplifies wall sealing and contains splashes.
  • Rugged 18 ga type 304 stainless steel top and bowl resist corrosion and harsh chemicals.
  • All TIG-welded seams are ground and polished to a smooth, sanitary satin finish.
  • 1 ⅝" Ø stainless steel legs with side cross-rails offer rock-solid stability and open-base cleanability.
  • 1" adjustable stainless bullet feet level the unit on uneven floors.
  • 1 ½" IPS basket-type drain assembly included.
  • Faucet holes punched on 8" centers (faucet sold separately).
  • NSF listed for food-contact safety.
Technical Specifications
Overall Dimensions 28" F/B × 44" L/R × 44" H (to top of backsplash)
Bowl Size 20" F/B × 20" L/R × 12" D
Drainboard 18" L/R (left-hand)
Backsplash Height 8"
Material Thickness 18 ga type 304 stainless steel
Legs / Bracing 1 ⅝" Ø stainless legs with adjustable side cross-bracing
Feet (4) 1" adjustable stainless bullet feet
Drain Connection 1 ½" IPS basket strainer (included)
Faucet Mount (2) 1 ⅛" holes on 8" centers
Certifications NSF
Perfect For
  • Food trucks and compact commercial kitchens
  • Bar and beverage stations
  • Cafés, bakeries and coffee shops
  • Prep or pot-washing areas where space is at a premium

Looking for a different drainboard orientation, bowl size or factory-installed accessories? Ask about Advance Tabco’s Smart Fabrication™ options—most customizations ship in just a few days.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

44.0in

Depth

28.0in

Shipping Weight

71.0lbs

Base Type

legs with side crossrails

Base Construction

stainless steel

Splash Height

8"

Compartment (front - back)

20"

Compartment Width (side - side)

20"

Sink Depth (rim - drain)

12"

Top Gauge

18 gauge

Overall Length

40" - 53"

Drainboards

with left-hand drainboard

Top Stainless Series

300 series

Specifications

Regaline Sink, 1-compartment, with left-hand drainboard, 20" front-to-back x 20"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 18" drainboard, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 28" F/B x 44" L/R, NSF
