Advance Tabco 9-2-36 Regaline Compartment Sinks
$2,085.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 9-2-36 Regaline Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 9-2-36 Regaline Compartment Sinks
$2,085.00
Unit price
/
Unavailable
Description

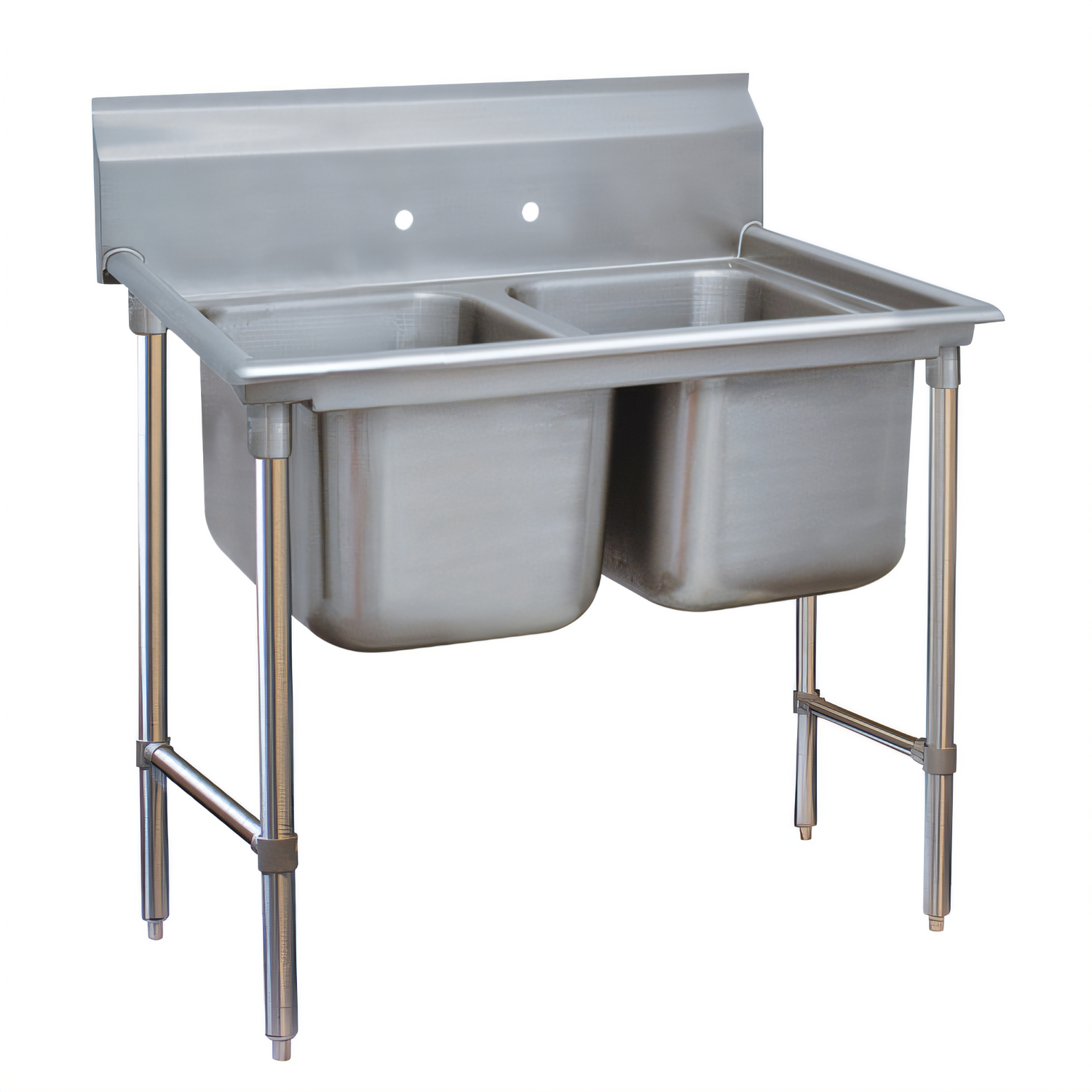

Advance Tabco Regaline 46" 2-Compartment Sink – 18 ga 304 Stainless
Model: 9-2-36 | Super Saver SeriesBuilt for busy commercial kitchens that need reliable performance on a tight footprint, this Regaline 2-compartment sink combines Advance Tabco’s signature seamless construction with an open-frame base that maximizes under-sink access.
Key Benefits
- Two deep-drawn bowls – each 20" F/B × 16" L/R × 12" D with easy-clean 3" bowl radii
- Durable 18 gauge type 304 stainless steel – corrosion-resistant and NSF listed
- Integrated 8" high backsplash with tile edge for a sanitary, flush wall installation
- Open frame base with adjustable side crossrails for extra rigidity without blocking plumbing
- 1 ⅝" Ø tubular stainless-steel legs with 1" adjustable bullet feet level the sink on uneven floors
- Factory-punched 8" on-center faucet holes (faucets sold separately)
- (2) 1 ½" IPS stainless basket drains included – centered in each bowl
- All TIG-welded construction; welds are blended to a satin finish
At-a-Glance Specs
| Overall dimensions (F/B × L/R × H) | 28" × 46" × 44" (to top of backsplash) |
|---|---|
| Bowl dimensions (each) | 20" F/B × 16" L/R × 12" D |
| Number of compartments | 2 |
| Gauge / material | 18 ga type 304 stainless steel |
| Backsplash height | 8" with 2" return |
| Faucet mounting | 8" on-center holes, 1" Ø |
| Drain size & type | 1 ½" IPS stainless basket drains (included) |
| Legs & bracing | 1 ⅝" Ø S/S legs, side crossrails, adjustable bullet feet |
| NSF listed | Yes |
| Approx. weight | 66 lb (ship) |
Ideal Applications
- Vegetable prep & dish rinsing lines
- Cafés, ghost kitchens & food trucks requiring compact dual-bowl washing
- Light-duty pot and pan clean-up where space is limited
Faucet, poly-vance cutting boards and sink covers are available separately – contact us for compatible accessories.
Important: Installation must comply with all local plumbing codes. Faucet rough-ins should be set on 8" centers; waste line requires 1 ½" IPS connection.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Height
42.0in
Width
46.0in
Depth
28.0in
Shipping Weight
66.0lbs
Base Type
legs with side crossrails
Compartment Width (side - side)
16"
Base Construction
stainless steel
Drainboards
without drainboards
Sink Depth (rim - drain)
12"
Splash Height
8"
Overall Length
40" - 53"
Compartment (front - back)
20"
Top Gauge
18 gauge
Top Stainless Series
300 series
Specifications
Regaline Sink, 2-compartment, 20" front-to-back x 16" W compartment, 12" deep, with 8" high splash, stainless steel open frame base, side crossrails, 18 gauge 304 stainless steel, overall 28" F/B x 46" L/R
