Advance Tabco 9-2-36-36L Regaline Compartment Sinks
Description

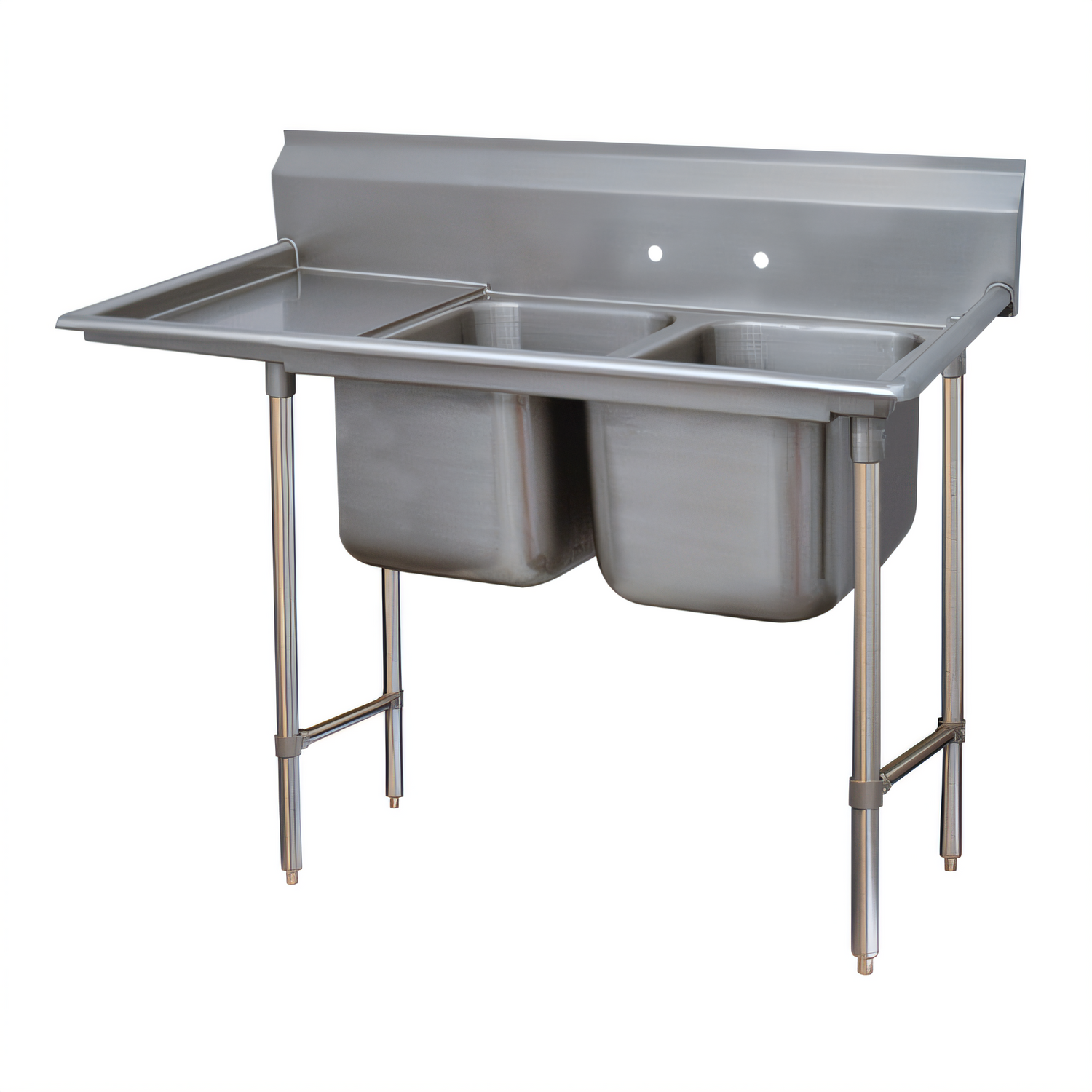

Advance Tabco “Regaline” 2-Compartment Sink with 36" Left-Hand Drainboard
9-2-36-36L • 18 Ga Type 304 Stainless Steel • NSFGet rugged, everyday performance at an economical weight. This Regaline 9 Series sink combines two seamless wash bowls with a full-size drainboard, heavy-duty tubular base and the legendary Advance Tabco satin finish—ideal for small warewashing stations, prep areas or bar service.
Key Features
- Two deep-drawn bowls, each 16" W × 20" F/B × 12" D with easy-clean 3" radius corners
- 36" left-hand drainboard pitched toward the bowls for fast draining
- 8" backsplash with 2" return and tile edge for a sanitary, splash-free installation
- 18 gauge, Type 304 stainless steel top, bowls & drainboard
- TIG-welded construction; welds blended to a smooth satin finish
- Open stainless frame with side crossrails for maximum leg room and easy floor cleaning
- (6) 1 5⁄8" Ø stainless legs (extra pair under the 36" drainboard) with gussets & 1" adjustable bullet feet
- (2) 1-1/2" IPS stainless basket drains included; faucet holes punched on 8" centers (faucet not included)
- NSF listed – built for commercial food-service use
Dimensions & Utilities
| Overall size (L × F/B) | 77" × 28" |
|---|---|
| Working height | 34" to rim (± 1") |
| Backsplash height | 8" (42" overall height) |
| Bowl count / size | (2) 16" W × 20" F/B × 12" D |
| Drainboard | 36" L (left side) |
| Drain openings | 1-1/2" IPS with basket strainers (centered in each bowl) |
| Faucet mount | (2) 1-1/8" Ø holes on 8" centers |
| Material / gauge | Type 304 stainless, 18 ga top & bowls |
| Shipping weight | Approx. 115 lb |
Faucet, supply lines and P-trap are sold separately. Need a custom modification? Ask about Smart Fabrication™ options.
