Advance Tabco  |  Regaline  |  SKU: 9-1-24-36RL  |  UPC: 747545105134

Advance Tabco 9-1-24-36RL Regaline Compartment Sinks

$2,413.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Plumbing
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

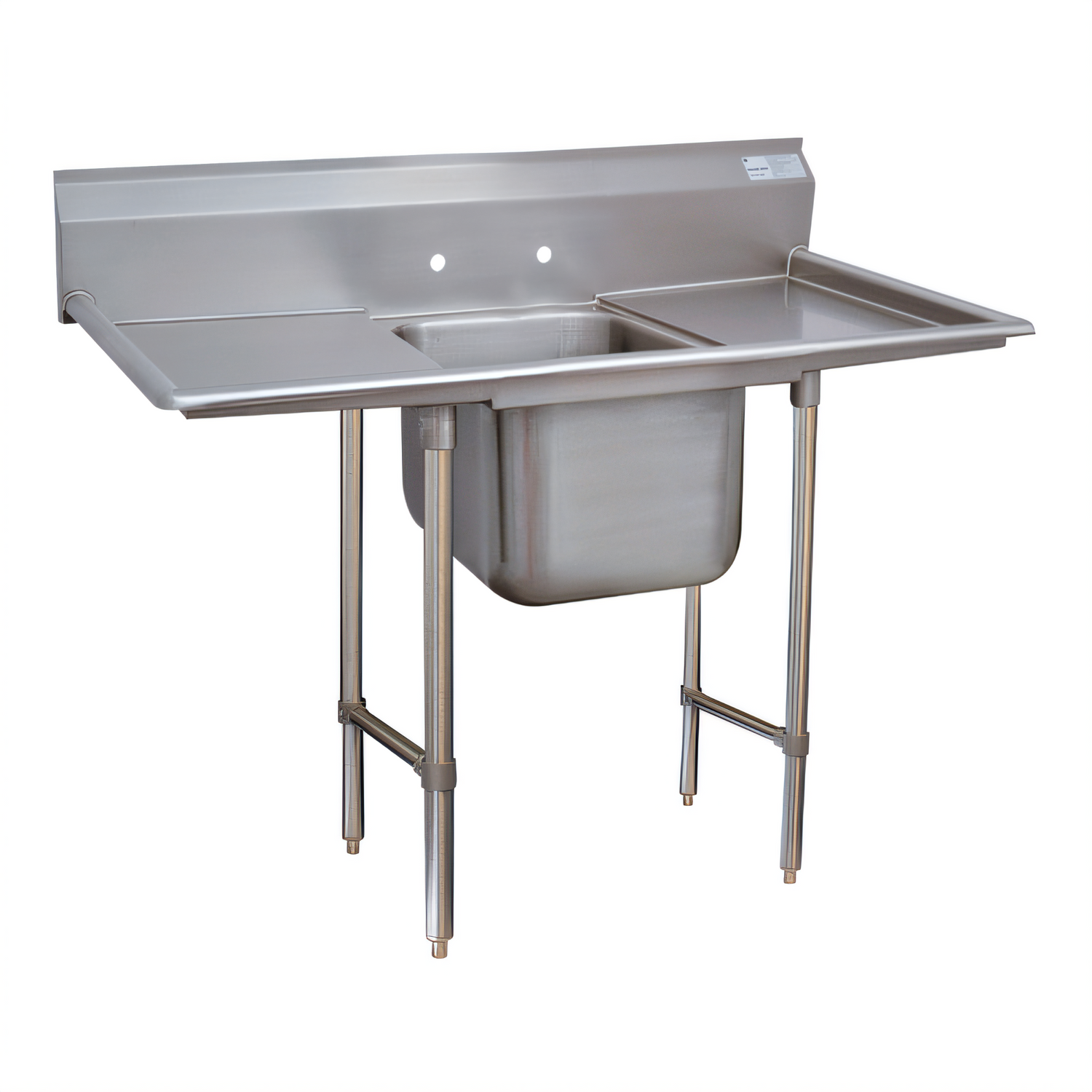

Advance Tabco Regaline 1-Compartment Sink w/ Dual 36" Drainboards – 18 Ga. 304 SS

Model 9-1-24-36RL | NSF Listed

Engineered for busy commercial kitchens, the Regaline 9 Series delivers heavy-duty durability in a space-saving single-bowl design. Dual 36" drainboards keep dishes moving, while seamless TIG-welded construction and generous 3" corner radii make cleanup fast and sanitary.

Why You’ll Love It

  • One-piece deep-drawn bowl – 20" front-to-back × 16" wide × 12" deep.
  • Left & right 36" drainboards accelerate prep and drying operations.
  • 8" integrated backsplash with tile-edge return protects walls from splatter.
  • 18 ga. type 304 stainless steel top & bowl for outstanding corrosion resistance.
  • Open frame base with 1 5/8" Ø tubular legs, side cross-rails, and two extra drainboard legs for added support.
  • All TIG-welded seams ground and polished to a matching satin finish.
  • Large 3" interior radii eliminate hard-to-reach food traps.
  • Pre-punched 8"-on-center faucet holes (faucet sold separately).
  • 1 1/2" IPS basket drain included; 1" adjustable stainless steel bullet feet level the unit on uneven floors.
  • NSF certified for food-service sanitation.

Quick-View Specifications

Overall size 90" L × 28" F/B*
Bowl size 20" F/B × 16" W × 12" D
Drainboard length 36" (each side)
Backsplash height 8"
Material thickness 18 ga. type 304 stainless steel
Legs / bracing 1 5/8" Ø S/S legs with side cross-rails (extra legs under drainboards)
Feet 1" adjustable stainless steel bullet feet
Drain connection 1 1/2" IPS basket drain (included)
Faucet holes 2 × 1-1/8" dia. holes on 8" centers
Approx. weight 134 lb.
Certifications NSF

*Front-to-back measurement taken from rolled front rim to back of backsplash.

Looking for modifications? Advance Tabco’s SmartFab™ program can add extra bowls, custom faucet hole locations, sink covers and more. Contact us for a fast quote.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

90.0in

Depth

28.0in

Shipping Weight

134.0lbs

Splash Height

8"

Top Gauge

18 gauge

Base Type

legs with side crossrails

Base Construction

stainless steel

Overall Length

73" - 108"

Drainboards

with left & right-hand drainboards

Compartment Width (side - side)

16"

Sink Depth (rim - drain)

12"

Compartment (front - back)

20"

Top Stainless Series

300 series

Specifications

Regaline Sink, 1-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 36" drainboards, 18 gauge 304 stainless steel, 1" adjustable bullet feet, overall 28" F/B x 90" L/R, NSF
