Advance Tabco  |  Regaline  |  SKU: 9-1-24-24RL  |  UPC: 747545105103

Advance Tabco 9-1-24-24RL Regaline Compartment Sinks

$2,273.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

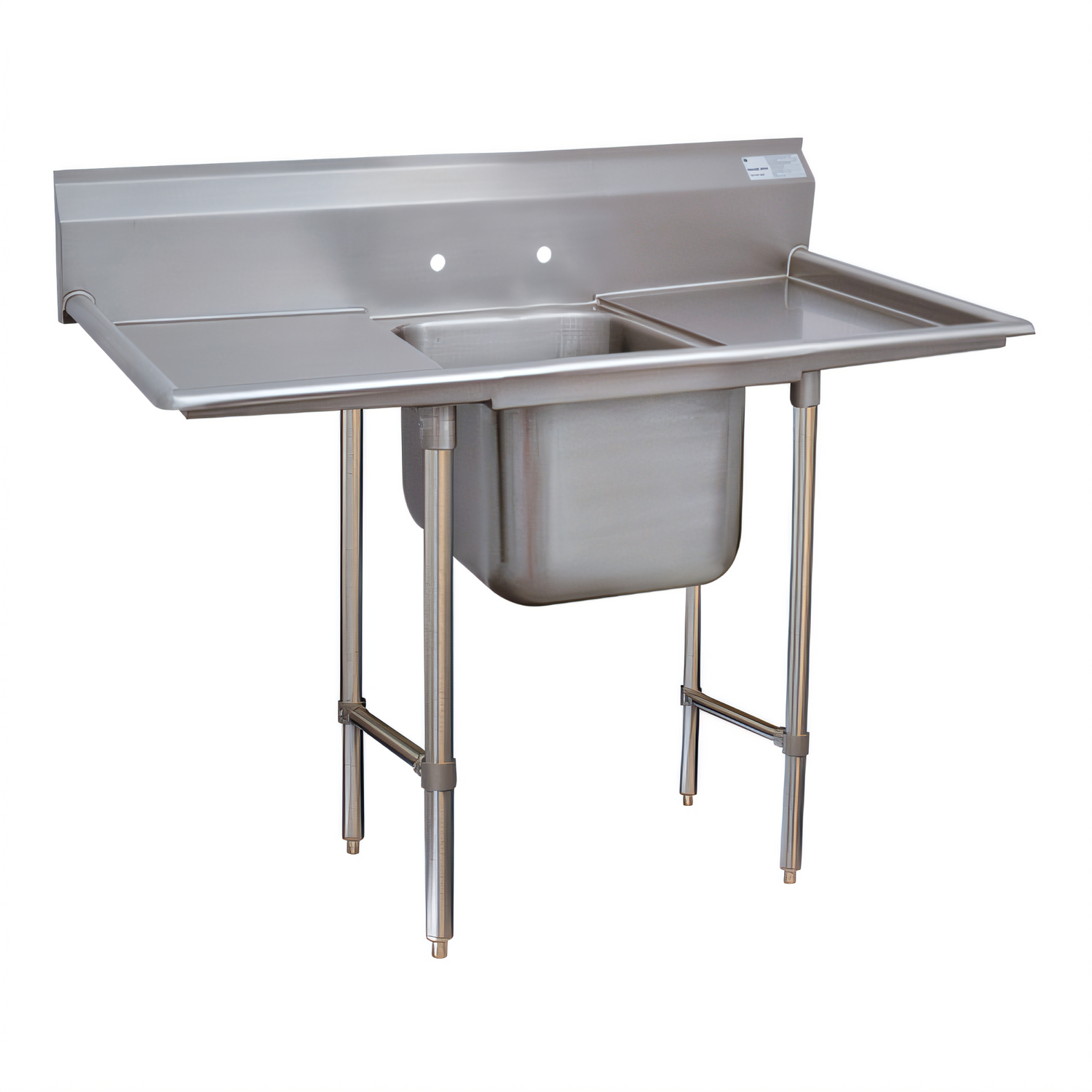

Advance Tabco “Regaline” 1-Compartment Sink with Dual 24" Drainboards

Model 9-1-24-24RL · 18 ga Type 304 Stainless Steel · NSF Listed

Built for the daily grind of commercial kitchens, the Regaline single-bowl sink pairs a deep-drawn 16" W x 20" F/B x 12" D compartment with spacious 24" drainboards on both sides—perfect for fast, organized rinsing, soaking and air-drying. 18-gauge 304 stainless steel, full TIG welding and a sanitary 8" backsplash add the durability and hygiene you expect from Advance Tabco.

Key advantages

  • Seamless one-piece bowl & drainboard stamping – no crevices for debris
  • Large 3" interior corner radius for effortless wipe-down
  • 8" high backsplash with tile edge speeds wall installation & protects against overspray
  • Open frame base with adjustable side cross-bracing for rock-solid stability
  • 1 ⅝" O.D. tubular stainless-steel legs with 1" adjustable bullet feet for perfect leveling
  • Center-mounted 1 ½" IPS basket-type drain assembly included
  • Pre-punched 8"-on-center faucet holes (faucet sold separately)

At-a-glance specs

Overall dimensions 66" L x 28" F/B x 45" H (to top of backsplash)
Bowl size (1) 20" F/B x 16" W x 12" D
Drainboards (2) 24" L—left & right, integrally formed with bowl
Backsplash height 8"
Material & gauge 18 ga type 304 stainless steel (satin finish)
Legs / bracing Stainless steel 1 ⅝" O.D. legs with adjustable side cross-rails
Feet 1" adjustable stainless bullet feet
Drain connection 1 ½" IPS, basket-type (included)
Faucet mounting 8" centers, 1 ⅛" dia. holes (faucet not included)
Approx. weight 95 lb (shipping)
Certifications NSF

Perfect for

  • Line-side dish & glass rinsing stations
  • Produce or protein prep areas requiring quick wash & drain space
  • Bar and café back-of-house cleanup

Faucet, cutting boards and sink covers are shown for illustration only and are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

66.0in

Depth

28.0in

Shipping Weight

95.0lbs

Splash Height

8"

Overall Length

63" - 72"

Base Type

legs with side crossrails

Top Gauge

18 gauge

Compartment Width (side - side)

16"

Base Construction

stainless steel

Drainboards

with left & right-hand drainboards

Sink Depth (rim - drain)

12"

Compartment (front - back)

20"

Top Stainless Series

300 series

Specifications

Regaline Sink, 1-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboards, 18 gauge 304 stainless steel, 1" adjustable bullet feet, overall 28" F/B x 66" L/R, NSF
