Advance Tabco  |  Regaline  |  SKU: 9-1-24-24L  |  UPC: 747545105080

Advance Tabco 9-1-24-24L Regaline Compartment Sinks

$2,156.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

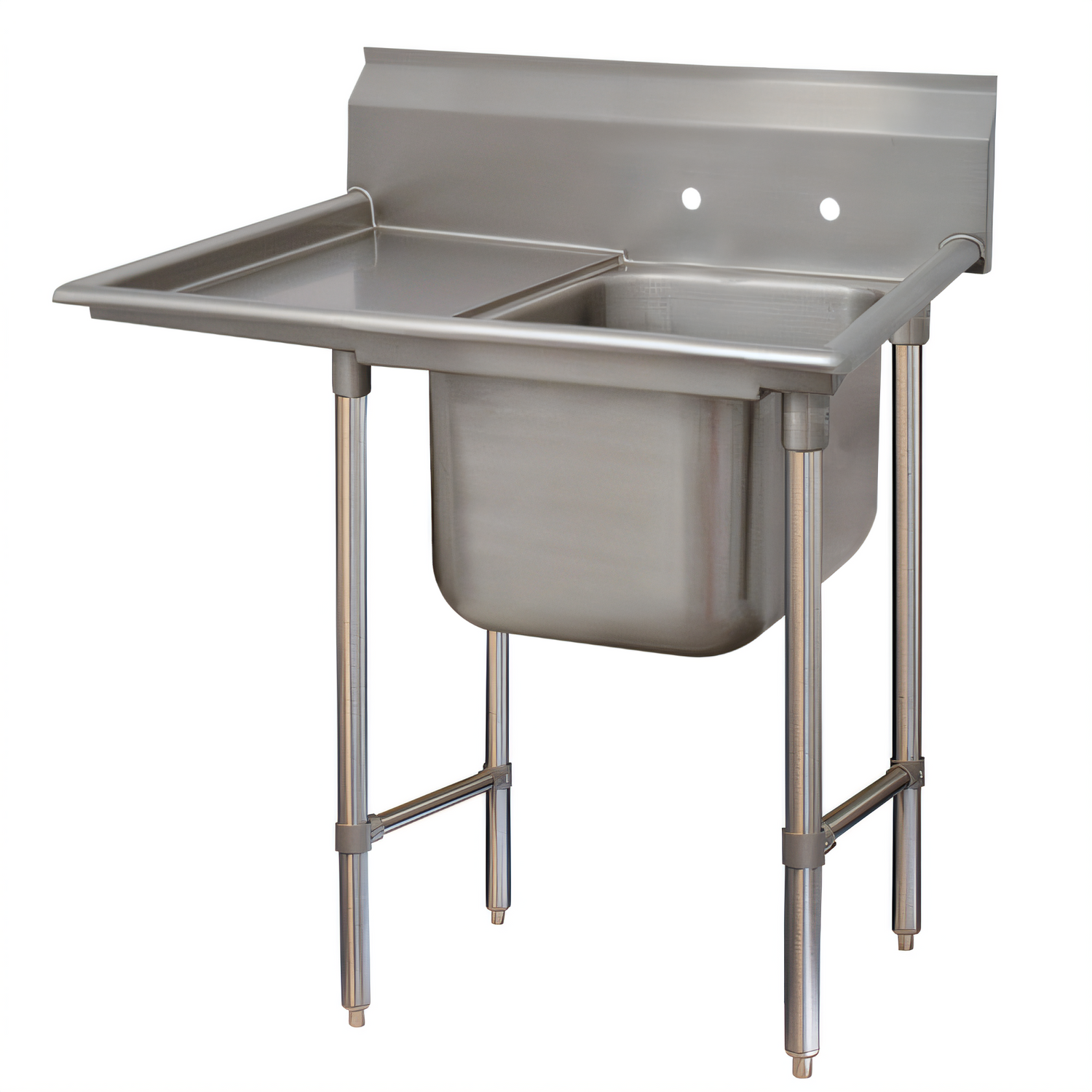

Advance Tabco Regaline 1-Compartment Sink with 24" Left Drainboard

Model: 9-1-24-24L | 18 ga. 304 Stainless Steel

Maximize your ware-washing efficiency in a tight footprint. This Regaline series sink pairs a roomy 16" × 20" bowl with a full-size 24" drainboard, giving you plenty of landing space for dirty or clean wares while keeping your workflow on one compact, easy-to-clean station.

Key Features
  • One deep-drawn bowl, 12" deep, with easy-to-wipe 3" radius corners
  • Integrated 8" backsplash with tile edge for fast, sanitary installation
  • Left-hand drainboard (24" L) pitched for rapid drainage; splash walls on three sides contain over-spray
  • 18-gauge, type 304 stainless steel top, bowl & drainboard; TIG-welded and satin-finished
  • Open stainless steel frame base with side crossrails for rigidity and unobstructed storage below
  • 1 5⁄8"-diameter tubular legs with stainless gussets and 1" adjustable bullet feet
  • Pre-punched 8"-on-center faucet holes (faucet sold separately)
  • Includes 1 1⁄2" IPS stainless steel basket drain
  • NSF listed for food-service sanitation compliance
Specifications
Compartments 1
Bowl Size (W × F/B × D) 16" × 20" × 12"
Drainboard 24" (left)
Backsplash Height 8"
Overall Dimensions (L/R × F/B) 46" × 28"
Material / Gauge 18 ga. type 304 stainless steel
Legs & Bracing 1 5⁄8" Ø stainless legs, side crossrails, 1" bullet feet
Faucet Centers 8"
Drain Connection 1 1⁄2" IPS basket drain (included)
Certifications NSF
Heads-up: Faucet, cutting boards, and sink covers are shown for demonstration only and are not included with this unit.

Looking for custom modifications or accessories? Advance Tabco’s Smart Fabrication™ team can tailor this sink to your exact needs.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

46.0in

Depth

28.0in

Shipping Weight

73.0lbs

Splash Height

8"

Base Construction

stainless steel

Base Type

legs with side crossrails

Top Gauge

18 gauge

Compartment Width (side - side)

16"

Sink Depth (rim - drain)

12"

Compartment (front - back)

20"

Drainboards

with left-hand drainboard

Overall Length

40" - 53"

Top Stainless Series

300 series

Specifications

Regaline Sink, 1-compartment, with left-hand drainboard, 20" front-to-back x 16"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboard, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 28" F/B x 46" L/R, NSF
