Advance Tabco  |  Regaline  |  SKU: 9-1-24-18L  |  UPC: 747545105059

Advance Tabco 9-1-24-18L Regaline Compartment Sinks

$2,135.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
1-compartment Sinks Advance Tabco Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

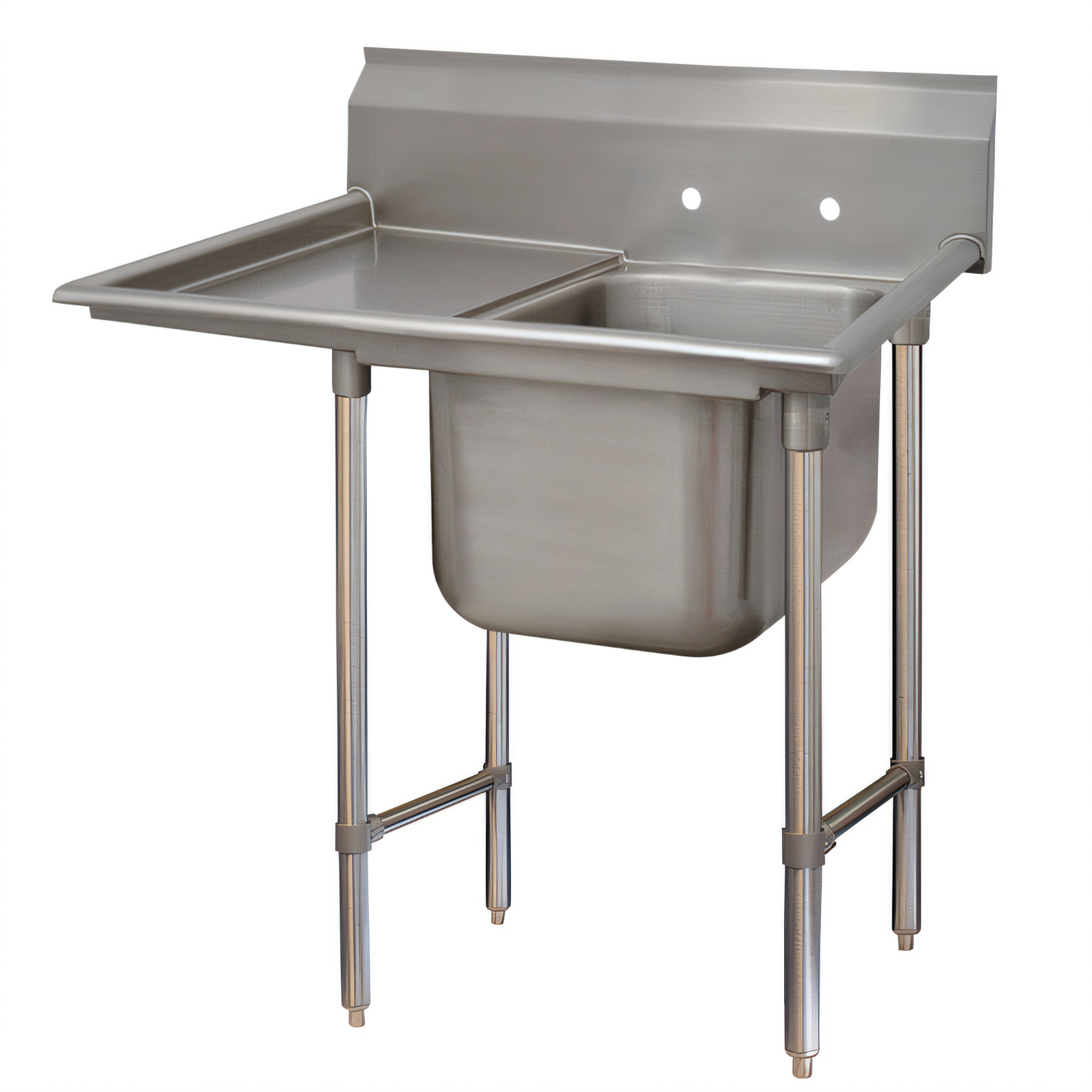

Advance Tabco Regaline 1-Compartment Sink with 18" Left-Hand Drainboard

18 ga 304 Stainless Steel • NSF Listed

Built for busy prep lines, bar stations and light-duty ware-washing, the Regaline 1-compartment sink combines seamless TIG-welded construction with the corrosion resistance of type 304 stainless steel— all in a space-saving 40" footprint.

Key Features
  • Deep-drawn bowl: 16" W × 20" F/B × 12" D with easy-clean 3" radius corners.
  • Integral 18" left-hand drainboard slopes toward the bowl for fast water run-off.
  • 8" high backsplash with tile edge and (2) 1 ⅛" faucet holes on 8" centers.
  • 18 ga type 304 stainless steel top, bowl & drainboard resist chemicals & dents.
  • Open frame base with adjustable side cross-rails keeps plumbing fully accessible.
  • 1 ⅝" OD tubular S/S legs, stainless gussets & 1" adjustable bullet feet for rock-solid leveling.
  • 1 ½" IPS stainless steel basket drain included—no extra kit required.
  • TIG-welded seams polished to match the satin finish for a sleek, sanitary surface.
  • NSF certified for food-service applications.
At-a-Glance Specs
Overall size (L × F/B × H) 40" × 28" × ≈ 44" (to top of backsplash)
Working height 34"
Compartment count 1
Compartment size 16" W × 20" F/B × 12" D
Drainboard 18" left-hand, integral & ribbed
Backsplash height 8"
Material / gauge Type 304 S/S, 18 ga
Faucet holes (2) 1 ⅛" Ø on 8" centers
Drain connection 1 ½" IPS basket drain (included)
Legs & feet 1 ⅝" OD tubular S/S legs with side cross-rails & 1" adjustable bullet feet
Approx. ship weight 65 lb.
Certifications NSF

Faucet, P-trap and supply lines are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

42.0in

Width

40.0in

Depth

28.0in

Shipping Weight

65.0lbs

Splash Height

8"

Sink Depth (rim - drain)

12"

Compartment Width (side - side)

16"

Compartment (front - back)

20"

Base Type

legs with side crossrails

Base Construction

stainless steel

Top Gauge

18 gauge

Overall Length

40" - 53"

Drainboards

with left-hand drainboard

Top Stainless Series

300 series

Specifications

Regaline Sink, 1-compartment, with left-hand drainboard, 20" front-to-back x 16"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base with side crossrails, 18" drainboard, 1" adjustable bullet feet, 18 gauge 304 stainless steel, overall 28" F/B x 40" L/R, NSF
