Advance Tabco  |  SKU: 7-PS-96  |  UPC: 747545209443

Advance Tabco 7-PS-96 Hand Sinks

$1,324.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing rough in Template Optional mixing valve
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

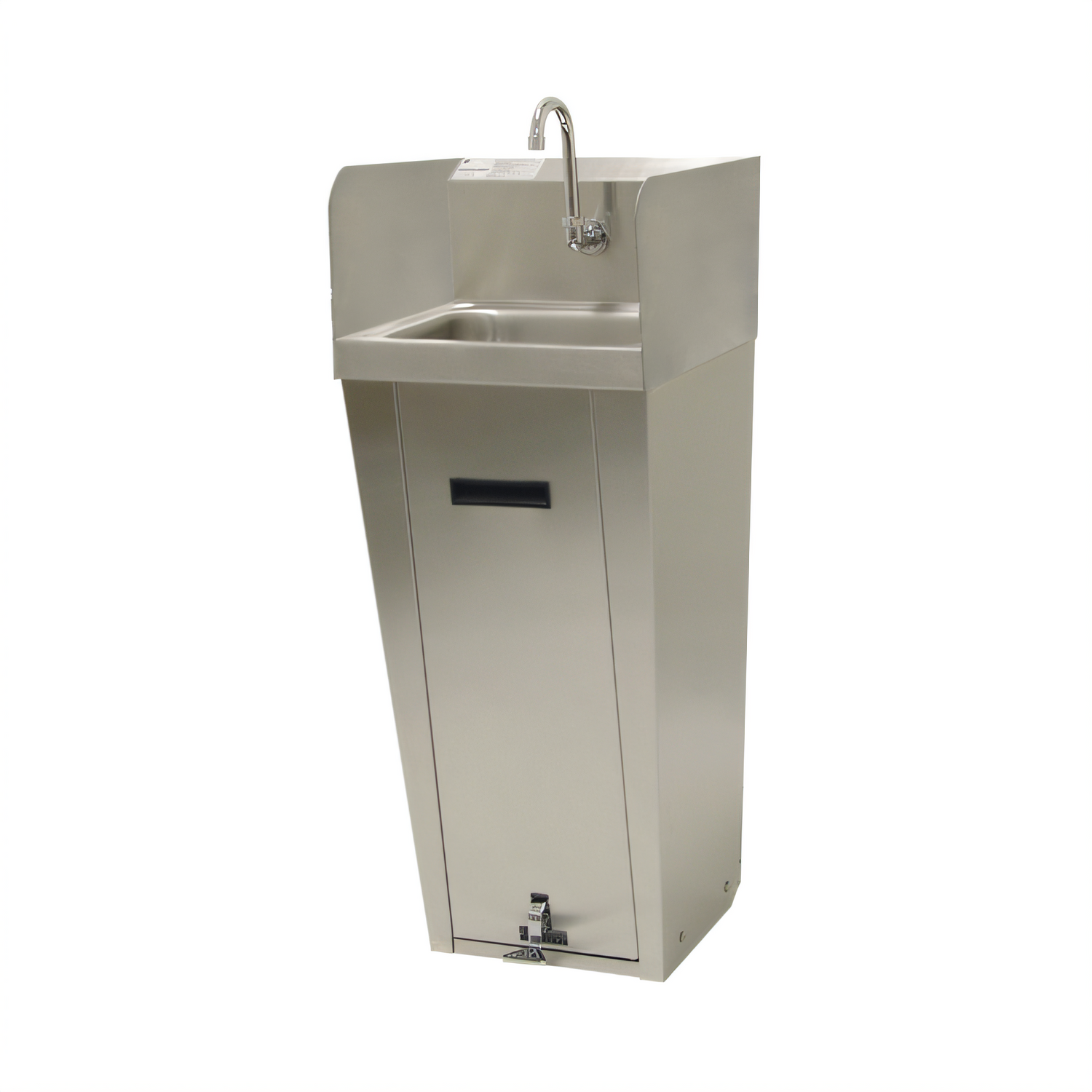

Advance Tabco 7-PS-96 Pedestal Hand Sink

Hands-free foot-pedal operation & 7-3/4" side splashes

Build a cleaner, safer workspace with the Advance Tabco 7-PS-96 – a fully welded, 304 stainless steel hand sink designed for high-volume commercial applications. From its deep-drawn bowl to its foot-pedal mixing valve, every detail is engineered for hygiene, durability, and easy installation.

Why You’ll Love It
  • True hands-free operation: splash-mounted gooseneck faucet is activated via robust foot pedals so employees never touch a handle.
  • Extra splash protection: 7-3/4" left & right side splashes help contain water and meet health-code requirements.
  • Deep-drawn bowl (14" W x 10" F-B x 5" D) with generous 2" radius corners for easy cleaning and larger capacity.
  • Heavy-duty 20-gauge type 304 stainless steel resists corrosion and everyday abuse.
  • Keyhole wall bracket and flush-to-wall pedestal base speed up installation and add stability.
  • Easy-access front panel simplifies maintenance of pedal valves and plumbing connections.
  • NSF & cCSAus listed; meets NSF/ANSI 61/9 “lead-free” requirements for potable water components.
At-a-Glance Specs
Model 7-PS-96
Overall Footprint (W × D) 15 1/4" × 15 1/4"
Bowl Size 14" W × 10" F-B × 5" D
Side Splash Height 7-3/4"
Material / Gauge 304 stainless steel / 20 ga.
Faucet Splash-mounted gooseneck w/ aerator (lead-free)
Valve Type Single foot-pedal mixing valve, 3/8" NPT female
Drain Stainless steel basket drain, 1-1/2" IPS
Mounting Pedestal base with galvanized keyhole wall bracket
Unit Weight 47 lb.
Compliance NSF, cCSAus, NSF/ANSI 61/9 Lead-Free
What’s in the Box
  • Stainless steel pedestal sink w/ side splashes
  • Splash-mounted gooseneck faucet (pre-installed)
  • Foot-pedal mixing valve (pre-installed)
  • Stainless steel basket drain & tailpiece
  • Galvanized keyhole wall bracket
  • Removable front access panel
  • Installation instructions
Installation Tip: Contractor must connect the faucet to the foot-pedal valves. Follow local plumbing codes and ensure hot & cold supplies are run to the 3/8" NPT inlets.

Looking for tempered-water control? This sink is compatible with the Advance Tabco K-425 thermostatic mixing valve (sold separately).

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, cCSAus

Height

42.0in

Width

17.25in

Depth

15.25in

Shipping Weight

47.0lbs

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

9" - 10" front-to-back

Style

pedestal mounted base

Bowl Width (left to right)

13" - 14"

Faucet

faucet included

Features

side splash(es)

Specifications

Hand Sink, pedestal mounted base, 14" wide x 10" front-to-back x 5" deep bowl, 7-3/4"H left & right side splashes, 20 gauge 304 stainless steel, heavy duty splash mounted faucet, pedal valves with easy access design, basket drain, wall bracket, NSF, cCSAus
