Advance Tabco  |  SKU: 7-PS-86  |  UPC: 747545178336

Advance Tabco 7-PS-86 Hand Sinks

$1,301.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Optional mixing valve Plumbing rough in Parts list Template
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

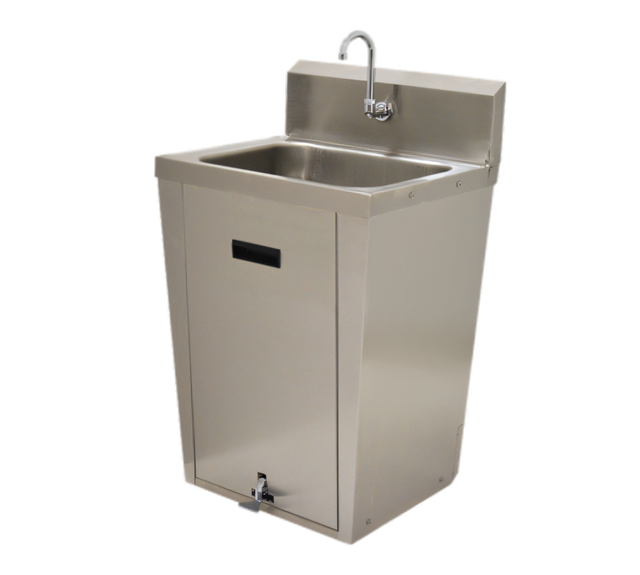

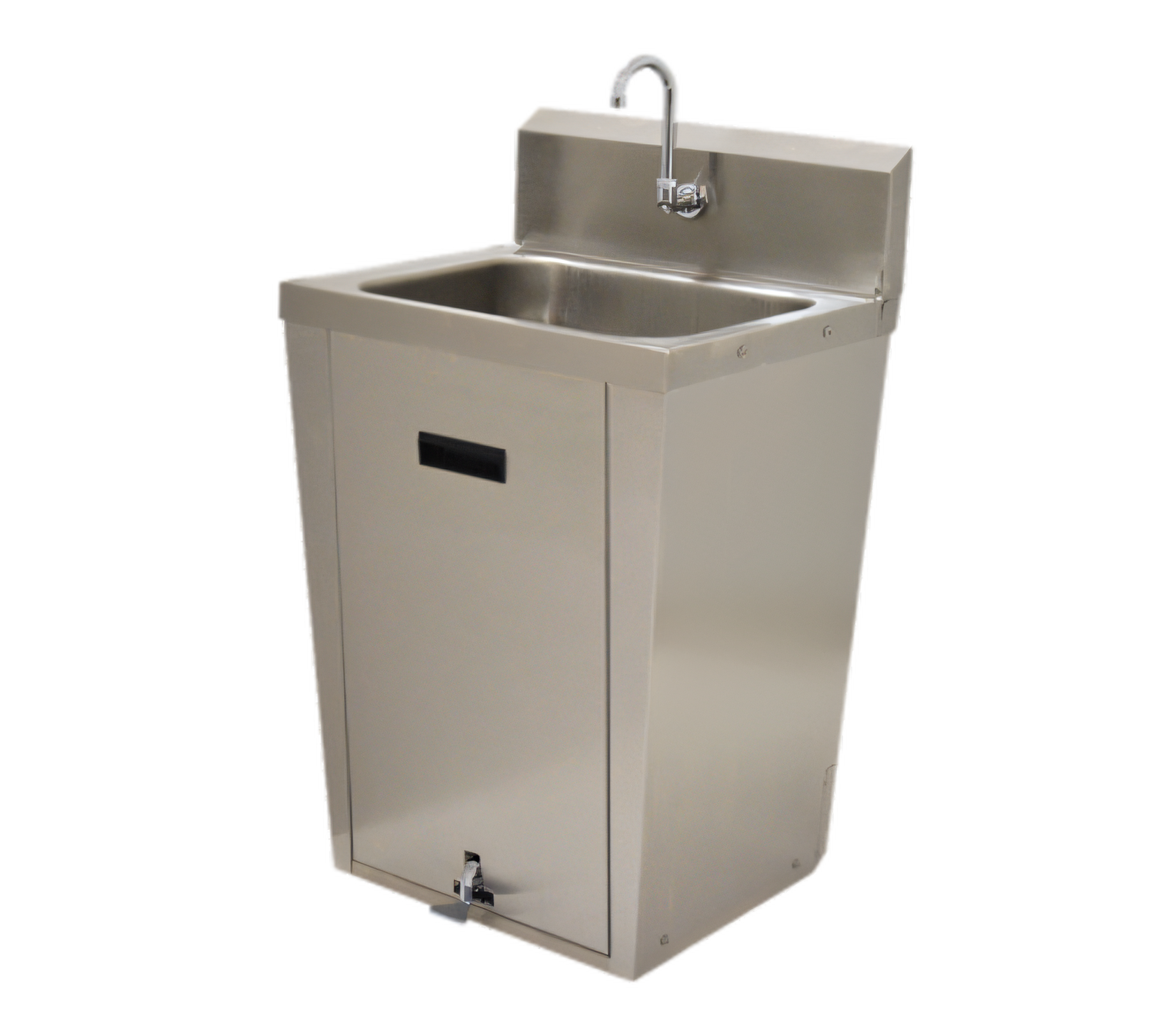

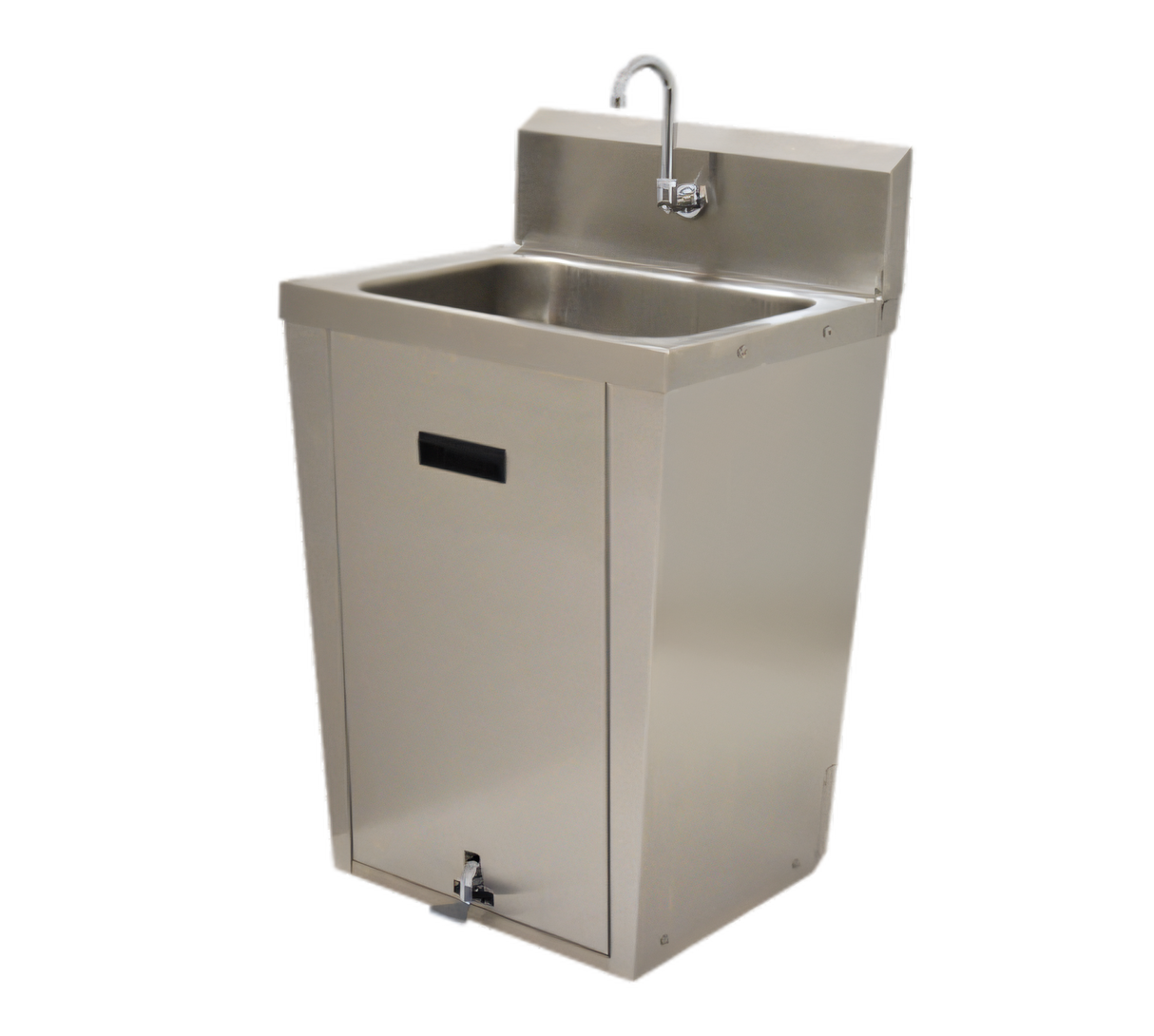

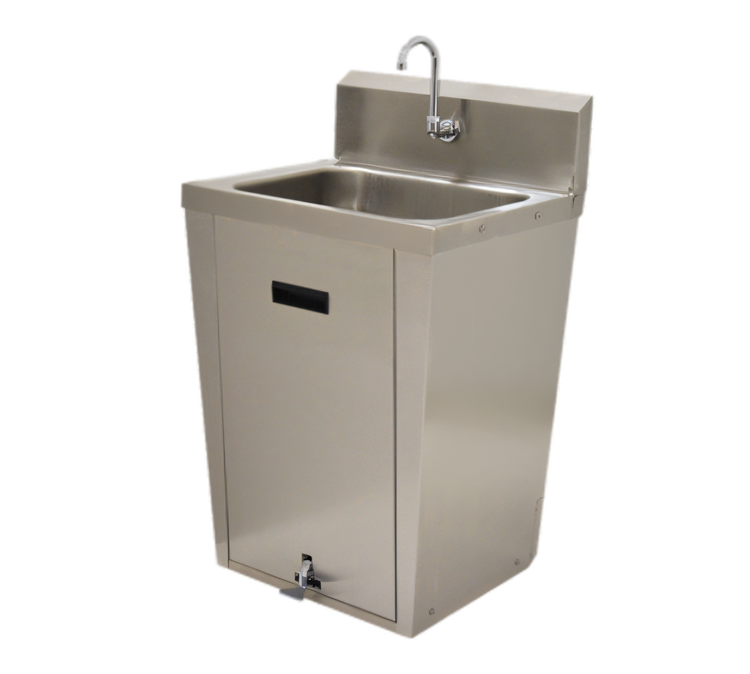

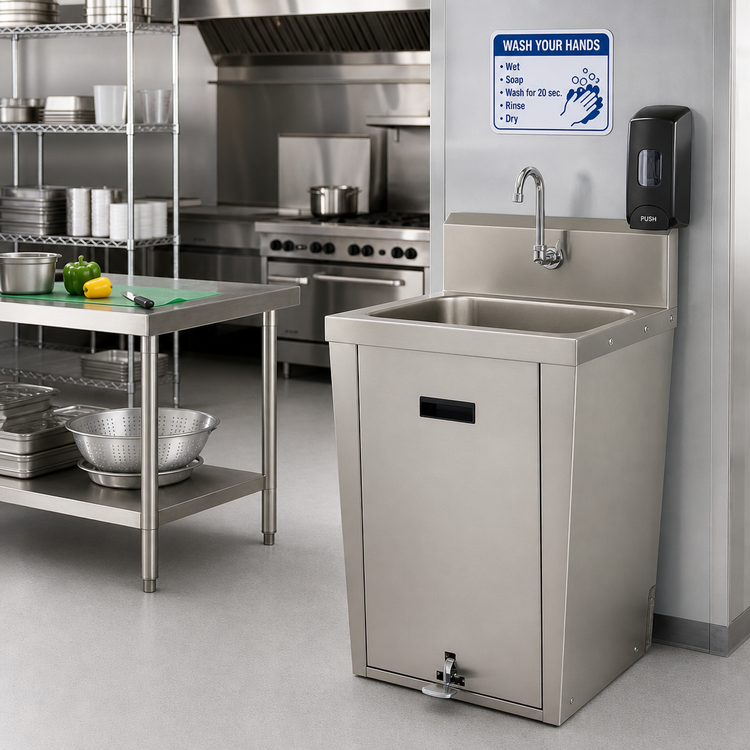

Advance Tabco 7-PS-86 Large Bowl Pedestal Hand Sink

20" W × 16" F-B × 8" D  •  18 Ga. 304 Stainless Steel  •  Hands-Free Foot Pedal

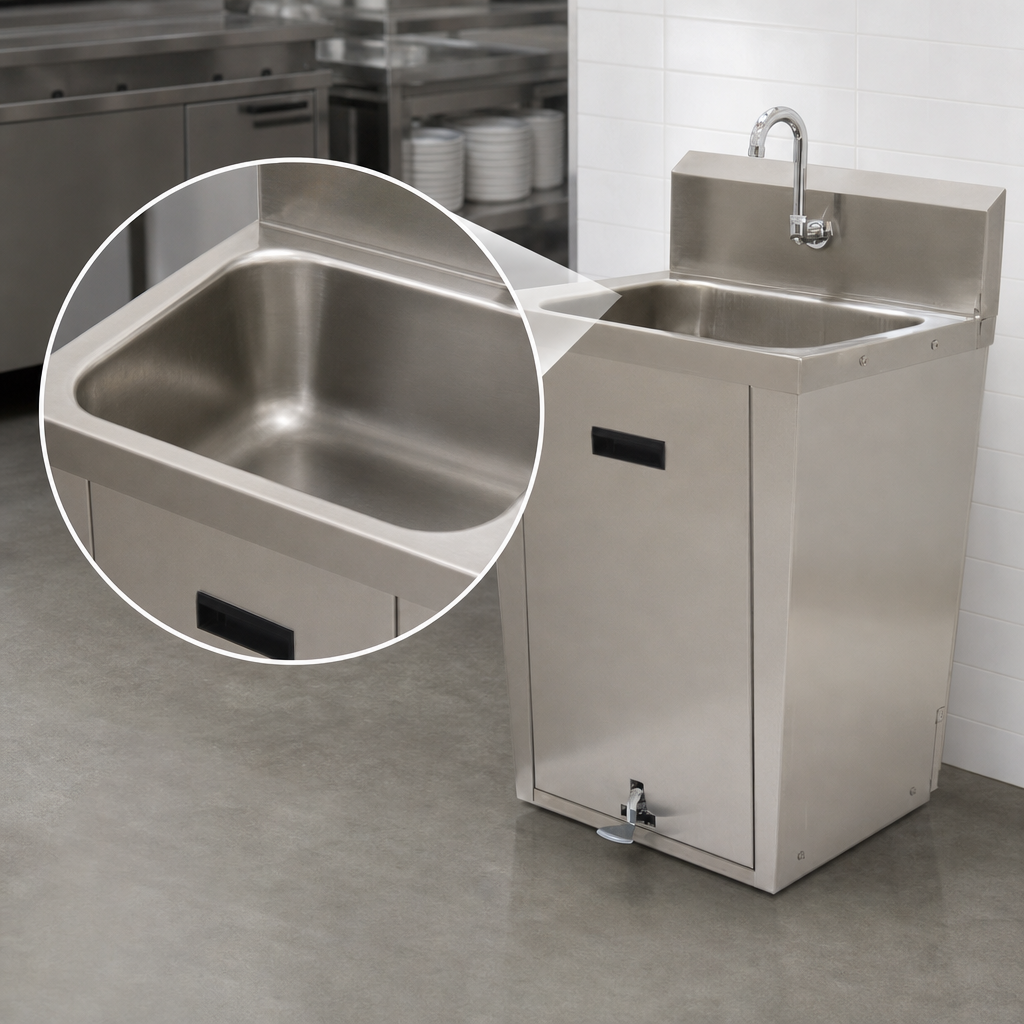

Built for demanding commercial environments, the 7-PS-86 delivers superior hygiene, rugged performance and effortless maintenance in one space-saving pedestal unit. A seamless, deep-drawn bowl, foot-activated water control and splash-mounted gooseneck faucet keep hands clean while keeping your workflow moving.

Key Features

  • Spacious 20" W x 16" F-B x 8" D bowl accommodates high-volume handwashing.
  • One-piece, TIG-welded 18 ga. 304 stainless steel with satin finish—no seams to trap debris.
  • Die-formed No-Drip edge helps prevent costly floor spills.
  • Hands-free single-pedal mixing valve with built-in check valves for cross-flow protection.
  • Heavy-duty splash-mounted gooseneck faucet with 1.0 GPM aerator (NSF 61/9 lead-free).
  • Flush-to-wall pedestal hides plumbing; removable front panel offers quick service access.
  • Galvanized offset wall bracket adds stability during fast, one-person installation.
  • 1 ½" IPS stainless steel basket drain resists corrosion and clogging.

Specifications

Model 7-PS-86
Bowl interior (W × F-B × D) 20" × 16" × 8"
Overall footprint ≈24 ⅞" W × 22" F-B × 41 ½" H
Material / Gauge 304 series stainless steel / 18 ga.
Water control Foot pedal mixing valve, 3/8" NPT female inlets, front temperature adjust
Faucet Splash-mounted gooseneck, 1.0 GPM @ 60 PSI
Drain 1 ½" IPS stainless steel basket drain
Mounting Pedestal base with galvanized wall bracket (flush-to-wall)
Shipping weight 55 lb | 25 kg
Certifications NSF, NSF 61/9 Lead-Free, cCSAus

Popular Options (sold separately)

  • K-425 Thermostatic Mixing Valve – locks in user-safe water temperature.
  • 7-PS-92 Tankless Electric Heater – add hot water where only a cold line exists.
Proposition 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. Learn more at www.p65warnings.ca.gov.

Need a custom configuration or additional accessories? Reach out and our Advance Tabco specialists will craft the perfect solution for your operation.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, cCSAus

Height

42.0in

Width

25.0in

Depth

18.0in

Shipping Weight

55.0lbs

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

pedestal mounted base

Specifications

Hand Sink, pedestal mounted base, 20" wide x 16" front-to-back x 8" deep, 18 gauge 304 stainless steel, heavy duty splash mounted gooseneck faucet, pedal valves with easy access design, basket drain, NSF, cCSAus
