Advance Tabco

Advance Tabco ADA Compliant Wall-Mounted Hand Sink with Tapered 14 x 16 x 5-Inch Bowl, Faucet, Soap Dispenser and Basket Drain

SKU: 7-PS-77-W
GTIN: 747545215826
$1,908.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Plumbing Supplies Commercial Sinks Hand Sinks Hand Wash Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

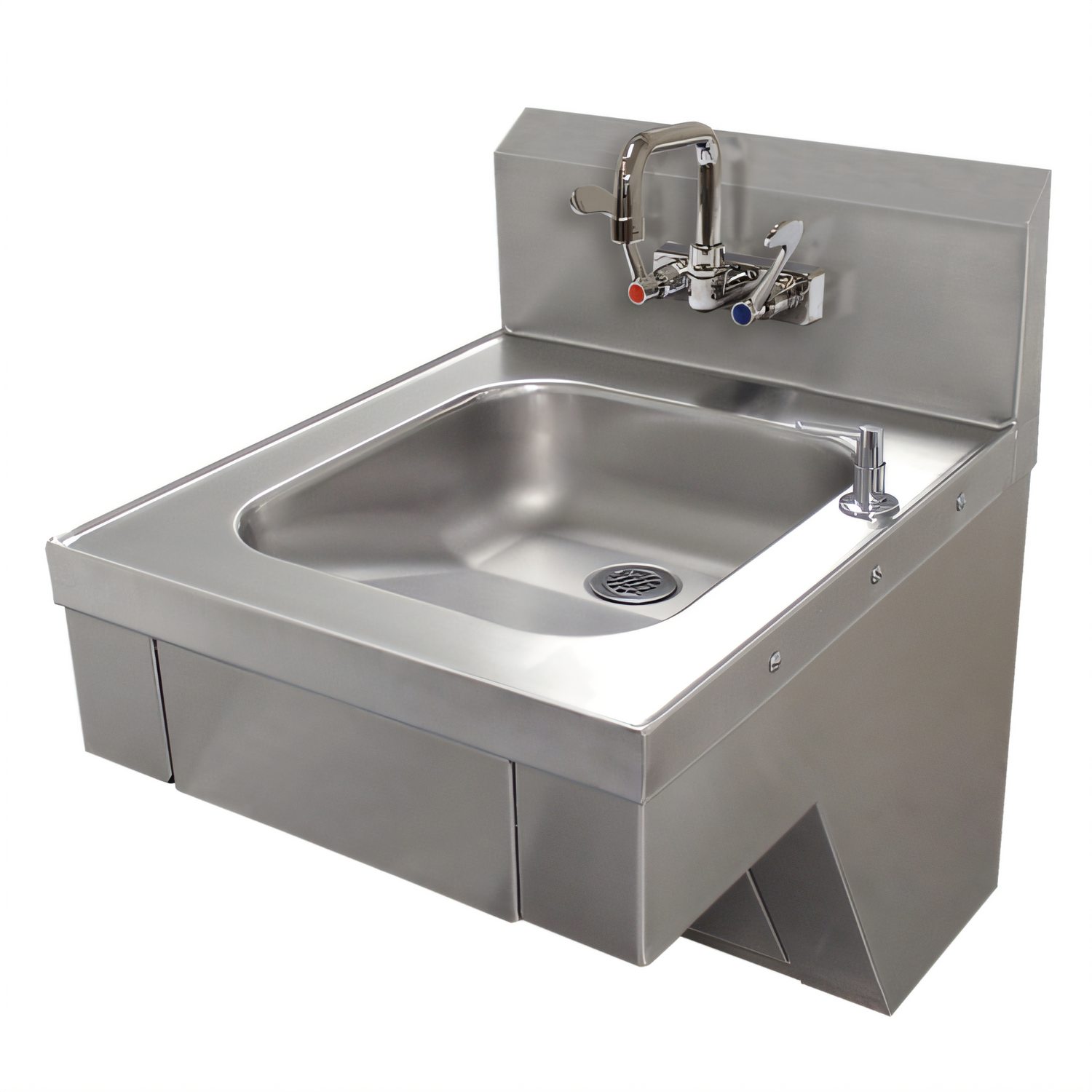

Advance Tabco ADA Compliant Wall-Mounted Hand Sink with Tapered 14 x 16 x 5-Inch Bowl, Faucet, Soap Dispenser and Basket Drain

304 Stainless Steel, Extended D-Spout Faucet with Wrist Handles

Built for accessible handwashing stations, this wall-mounted ADA sink bundles a tapered 14 x 16 x 5-inch bowl, faucet, soap dispenser and enclosed storage skirt in durable stainless steel.

  • ADA-compliant wall-mounted hand sink for accessible wash stations.
  • One-piece deep-drawn 14 x 16 x 5-inch bowl with a tapered design.
  • Includes a splash-mounted extended D-spout faucet with wrist handles.
  • Deck-mounted liquid soap dispenser helps complete the handwashing setup.
  • Stainless steel skirt with removable access panel provides enclosed storage.
  • Heavy-duty 304 stainless steel construction with TIG-welded, satin-finish seams.

Overall Dimensions:

20.0"W x 24.0"D x 27.0"H

Product Weight:

65.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

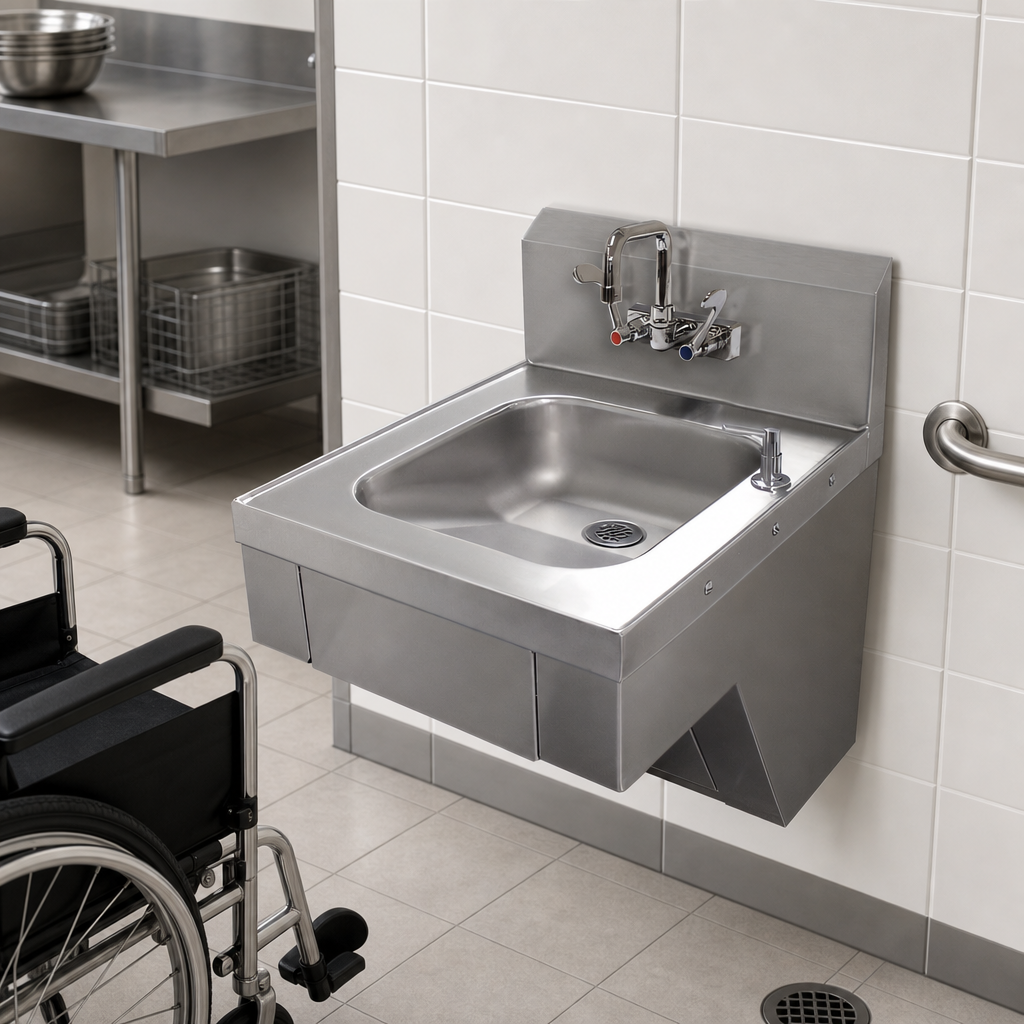

ADA Compliant Design

Built for accessible handwashing installations.

Tapered One-Piece Bowl

The 14 x 16 x 5-inch sink bowl is deep drawn from one sheet with no seams.

304 Stainless Steel Construction

Heavy-gauge type 304 series stainless steel construction supports durability in demanding environments.

Included Extended D-Spout Faucet

Model W includes a splash-mounted 6-inch extended D-spout faucet with wrist handles.

Deck-Mounted Liquid Soap Dispenser

A built-in soap dispenser is included to support a complete handwashing station.

Enclosed Stainless Steel Skirt

The removable access panel and enclosed bottom create a cleaner look and added storage space.

Basket Drain and Wall Mounting Hardware

Includes a stainless steel 1-1/2-inch IPS basket drain, wall brackets, and a Z-bracket wall mounting plate.

TIG-Welded Satin Finish

Welded areas are blended to match adjacent surfaces and finished to a satin appearance.

Type Hand Sink
Style Wall Mounted
Installation Type Wall Mounted
Compartments 1
Material 304 Stainless Steel
Finish Satin Finish
Bowl Width 14 Inches
Bowl Depth 16 Inches
Bowl Height 5 Inches
Water Inlet Size 1/2 Inch IPS Male Thread
Drain Connection Size 1-1/2 Inch IPS
Nozzle Type Extended D Spout
Handle Type Wrist Handles
Flow Rate 1.0 GPM
Shipping Width 20 Inches
Shipping Depth 24 Inches
Shipping Height 27 Inches
Shipping Weight 65 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The W model includes a splash-mounted 6-inch extended D-spout faucet with wrist handles.
Yes, a deck-mounted liquid soap dispenser is included.
The sink bowl measures 14 inches wide x 16 inches front-to-back x 5 inches deep.
It mounts to the wall using a Z-bracket wall mounting plate and wall brackets.
It includes a stainless steel 1-1/2-inch IPS basket drain.
It is made from heavy-gauge type 304 series stainless steel with a stainless steel skirt.
