Advance Tabco  |  SKU: 7-PS-77-E  |  UPC: 747545215819

Advance Tabco 7-PS-77-E Hand Sinks

$2,802.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

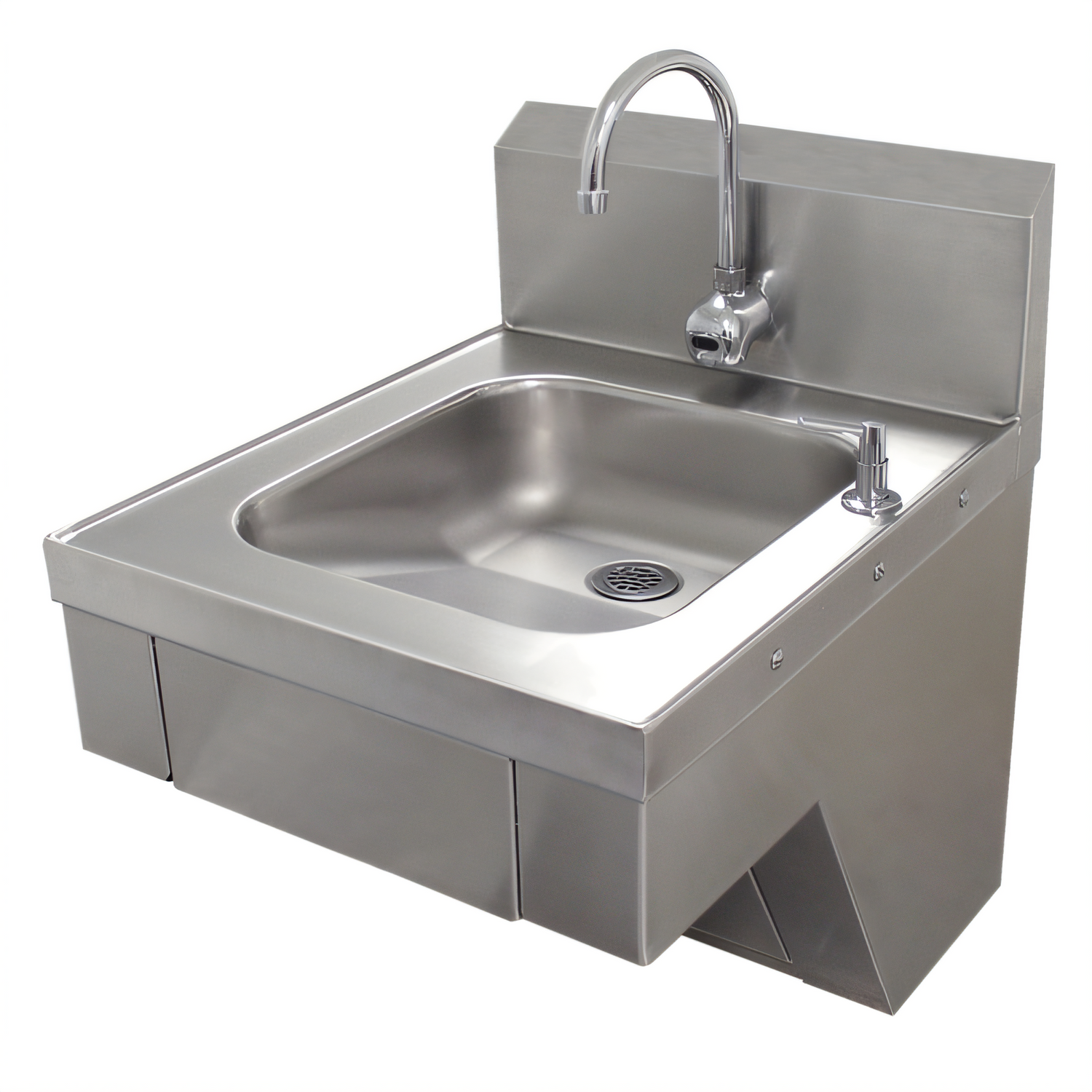

Advance Tabco ADA-Compliant Wall-Mounted Hand Sink – 14" × 16"

Hands-Free Electronic Faucet • Stainless Steel Skirt • NSF & cCSAus Listed

Designed for universal accessibility and tough commercial environments, this Advance Tabco hand sink combines a seamless 18-gauge stainless bowl with a touch-free electronic faucet. The tapered skirt provides knee clearance for wheelchair users while concealing plumbing behind a removable access panel.

Key Features

  • ADA compliant tapered bowl & skirt design for comfortable wheelchair approach

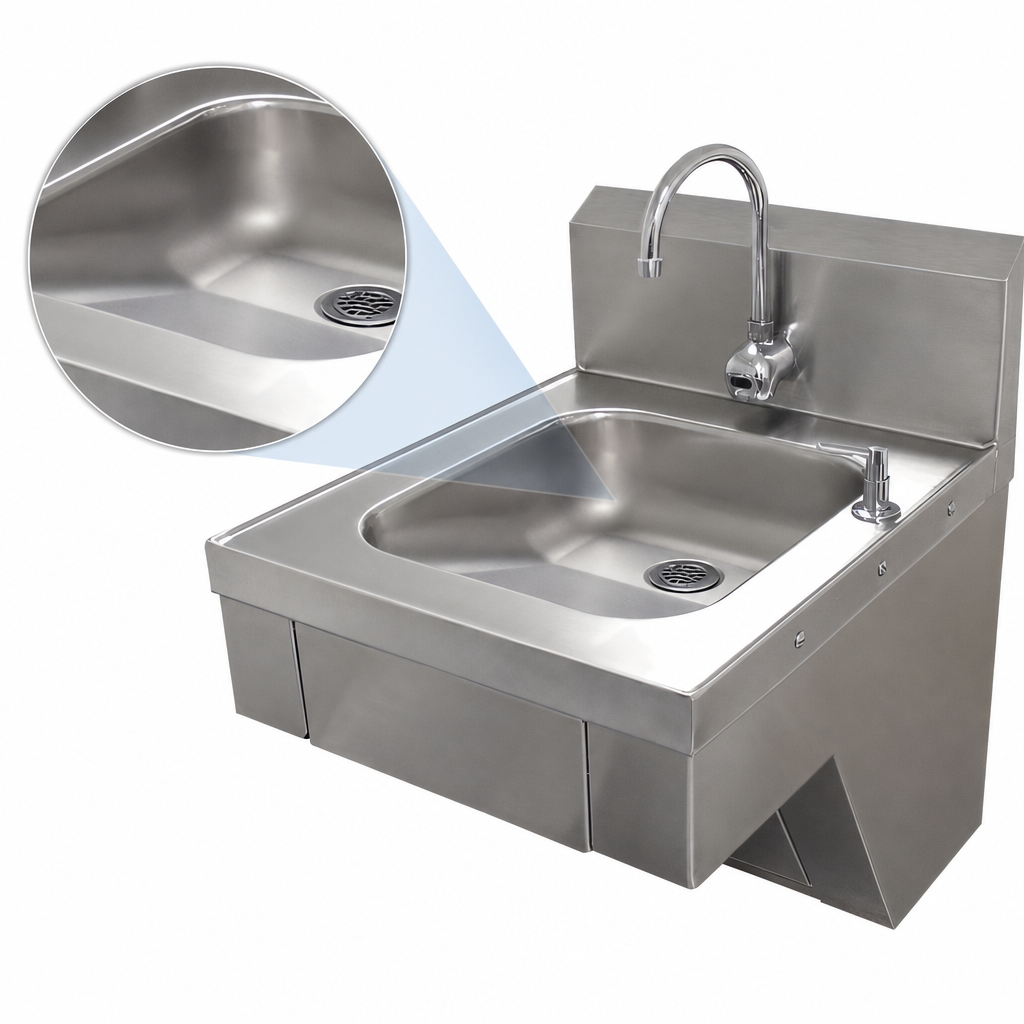

  • One-piece deep-drawn bowl: 14" W × 16" D × 5" H – no seams to trap bacteria
  • 18-ga Type 304 stainless steel bowl with sanitary satin finish
  • K-175 hands-free electronic gooseneck faucet (battery pack and 110 V AC adapter included)
  • Deck-mounted liquid soap dispenser with durable pump mechanism
  • 16-ga stainless steel skirt with enclosed bottom & front access panel for fast service
  • Galvanized “Z” wall bracket and mounting hardware supplied
  • 1-1/2" IPS stainless basket drain included
  • Conforms to NSF/ANSI 61 & 9 lead-free requirements; NSF & cCSAus certified

Why You’ll Love It

  • Touch-free faucet helps prevent cross-contamination and cuts water use (1.0 GPM)
  • 3/8" No-Drip edge keeps surrounding counters and floors dry
  • TIG-welded construction with blended seams for a sleek, professional look
  • Enclosed bottom offers light storage and keeps plumbing out of sight
  • Ideal for restaurants, healthcare facilities, laboratories, schools and more

Specifications

Bowl Dimensions 14" W × 16" Front-to-Back × 5" Deep (356 × 406 × 127 mm)
Overall Width 20" (508 mm)
Overall Front-to-Back 24" (610 mm) including backsplash
Overall Height 27" (686 mm) to top of faucet
Material 18-ga 304 SS bowl / 16-ga 304 SS skirt
Faucet Flow Rate 1.0 GPM (3.8 LPM) @ 60 PSI
Water Connections (2) ½" IPS male – hot & cold
Electrical 4 × AA battery pack or 110 V AC adapter (both supplied)
Unit Weight Approx. 65 lb (29.5 kg)
Certifications NSF, cCSAus, NSF/ANSI 61 & 9 lead-free

Need multiple sinks or custom options? Our Commercial Sink Specialists are ready to help—just ask!

California Prop 65 Warning: This product can expose you to chemicals, including lead, known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, cCSAus, ADA Compliant

Height

27.0in

Width

20.0in

Depth

24.0in

Shipping Weight

65.0lbs

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Style

wall mounted

Bowl Width (left to right)

13" - 14"

Specifications

ADA Compliant Hand Sink, tapered bowl design, wall mounted, 14" wide x 16" front-to-back x 5" deep bowl, 18 gauge 304 stainless steel, electronic faucet (battery & 110v options both supplied), deck mounted soap dispenser (pump), stainless steel skirt with removable access panel & enclosed bottom, basket drain, wall brackets, NSF, cCSAus
